double glazing glass production line / insulating glass production line / glass making machine
- 300 Set / Sets per Month
- QINGDAO/TIANJIN/NINGBO
- T/T Credit Card
- transportation cart for finish windows
- Insulating glass /Double glazing Used Glass Machinery
- Insulating glass Aluminum Spacer Bar Bending Machine
- Glass Straight Line Polishing Edger with 45 Angle / Glass Edging Machine with PLC control
- Vertical Automatic Insulating Glass Machine Glass Beveling Machine
- Butyl Coating Machine /Butyl Sealant Extruder for Insulating Glass
Product Details
Brand Name: | TRUMP | Place of Origin: | Shandong, China | Model Number: | JYN1800 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 2 years |
Weight: | 5500kgs | Dimension(L*W*H): | 19200*2400*2900mm | Production Capacity: | 100% |
Condition: | New | Voltage: | 380v/50hz | Power(W): | 24.0kw |
Machine Type: | Insulating Glass Production Line |
Product Description
double glazing glass production line / insulating glass production line / glass making machine
insulating glass machine Vertical Automatic Insulating Glass Machine Production Line glass machine production lineouble glazing mchine/ Insulating double glass machine/ double glazing glass machine
Application and Features >> |
PLC control system with whole process, touch-sensitive screen and man-machine interface.
Realize the surface layer of coated glass and LOW-E glass automatically.
The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.
It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.
Equipment configuration >> |
Equipment Model Parameter | JYN1800 | JYN2200 | JYN2500A | |
Power supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | |
Total power |
| 24.0KW | 26.KW | 28.0KW |
Process glass size | Max | 2500*1800 | 3000*2200 | 3000*2500 |
Min | 280*450 | 280*450 | 280*450 | |
Original glass thickness | 3~25 | 3~25 | 3~25 | |
Working speed | Washing speed | 3~9m/min | 3~9m/min | 3~9m/min |
Conveying speed after washing | 15~45m/min | 15~45m/min | 15~45m/min | |
Outline dimension | L×W×H (mm) | 19200*2400 *2900MM | 19600*2500 *3380MM | 19600*2500 *3680MM |
Net weight | 5500KG | 6500KG | 7300kg |
Procesing details >> |

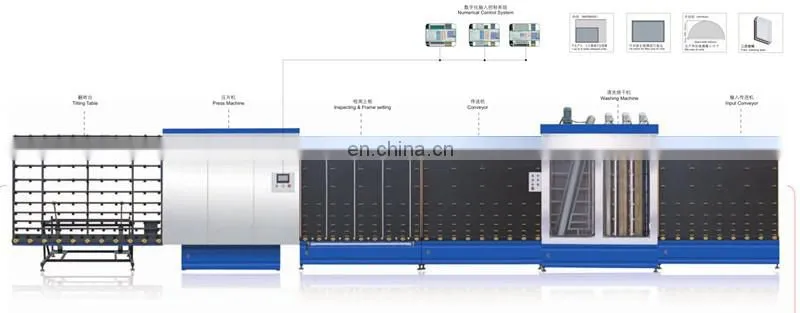

The first part: Input Unit
- Conveying/transporting glass sheets to washing and drying unit.
- Automatic drives to pushes the glass into washing and drying unit automatically
- Realize the surface layer of coated glass and LOW-E glass with a sensor
Washing and Drying Unit
- stainless steel and anticorrosion material with all parts;
- Be able to wash Low-E glass;
- Three pairs of brushes, entire rubber rollers;
- Drying part guaranteed by strong blower with hot air;
- Hot water to achieve better cleaness of glass;
- Washing - drying cabinet and blower with noise reducing devices
- The speed of transport can be adjusted.
Cleaness Inspecting Unit
- Also outletting unit after glass washing and drying;
- With lighting tubes on this unit;
- Inspecting whether the glass is clean or not;
- The speed of transport can be adjusted.
Aluminum Spacer Assembly Unit
- used to load aluminum spacer bar;
- The first glass goes into the panes pressing unit first;
- Loading the spacer bar on the second glass;
- Locating blocks make the placement of spacer easier.
Panel Pressing Unit
- Press the two sheets of glass with spacer together;
- Can make step glass;
- Inputting, outputting, panel pressing, all automatically;
- Parameters can be changed easily through the touch screen;
- Press presssure can be adjusted.
- Capable of doing double and triple glazed units
Tilting Table
- Glass sheet can be tilted to horizontal position, easy for transporting or unloading.
Machine processing >> |
TRUMP INTERNATIONAL selected each part carefully , we are strive to quality first when machine production and test each machine before delivery. So we will provide the best machine for you.
Quanlity control>> |
TRUMP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.
Packing and Shipping>> |
TRUMP INTERNATIONAL produce high quality machines, also pay attention to package.
The machines will be packed with steel pallet and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
Our serivces >> |
A,18month warranty
B,1%-2% spare parts
C, OEM&ODM are welcom
D,Tried orders are available
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
TRUMP INTERNATIONAL always looking for long term cooperaion, not one time deal.
Company information >> |
Jinan Trump International CO.,LTD is a manufacturer and trading company which have rich experiences in machine making and export.Our main products is PVC/UPVC /aluminum Window and door making machine /Insulating glass processing machine /Curtain Wall Machine . Our company have passed CE certification and so on...
Workshop
Certification
We have our own research and development personnel and team, innovation of science and technology. Also has a good technical personnel, there are a lot of experience in this industry.
Cooperative Partners
On the exhibition
FAQ>> |
1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 16 months. 2).24 hour’s technical support by email or calling 3).English manual and video tutorial 4).We will provide the consumable parts at an agency price 5).24 hours on line service each day, free technical support.
3.Question:if our price is higher than another company or factories ?
Answer: please check, what is is the different of the machine of parts ,service and guarantee,especially the machine inner electric parts,
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.
Kindly note:
These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.
