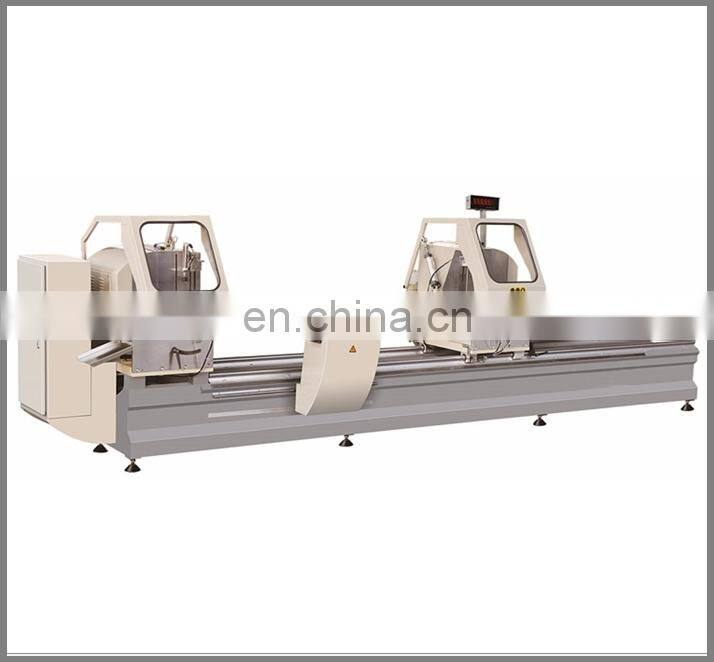

LJG-500*4200 CNC Precise Double Head Cutting Saw machine
Product Description
| Equipment configuration |
Power supply | 380V 50Hz |
Motor power | 2×2.2Kw |
Air pressure | 0.5~0.8Mpa |
Air consumption | 60L/min |
Blade specification | φ500×φ30×4.4 Z=120 |
Cutter feeding speed | 0~3m/min |
Cutting length | max4200mm min385mm |
Cutting width | max135mm |
Cutting height | max300mm |
Cutting angle | 90° 45° 67.5° |
Contour dimension | 5500×1750×1950mm |
Weight | 1800kg |
Cutting profile surface plane | ≤0.10mm |
- Used for cutting aluminum for doors and windows, curtain wall etc..
- The feeding system adopts the imported linear guide pair, with high accuracy and stability
- Right head feeding adopts high helical pitch ball screw-lead motion, with high ac curate driving, locating and smooth working.
- Two saw heads are adjustable and cut the profiles in45°,67 ° 90°freely
- Imported carbide saw blade features accurate processing and high endurance.
- Imported linear guiding pair ensures steady processing accuracy
- Saw blade rotates smoothly due to high accurate main spindle
- Uniform speed feeding and smooth motion are due to air hydraulic damping cylinder.
- Auto-opening shield makes the operation more safety
- Middle auto-induction profile supporter and following profile supporter made the loading and clamping convenient.

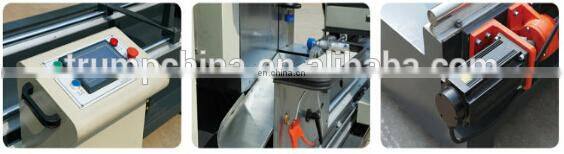

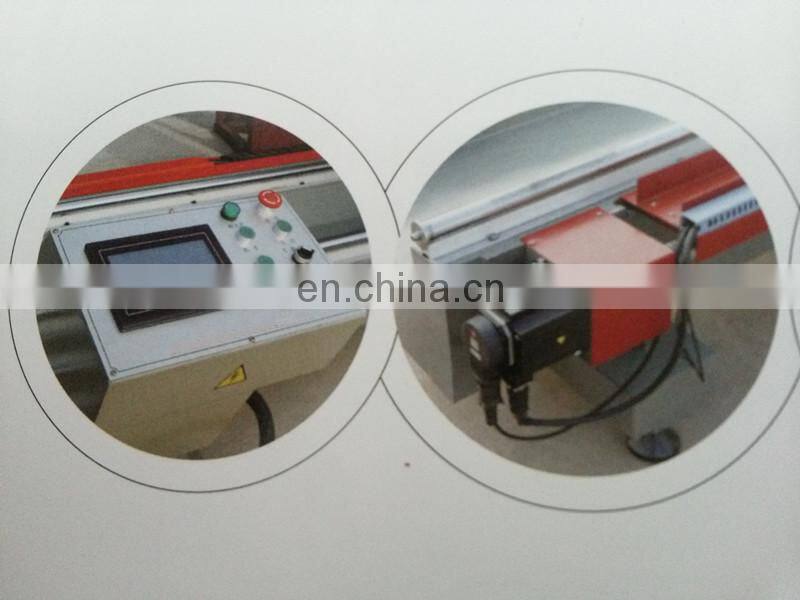

| Machine details |

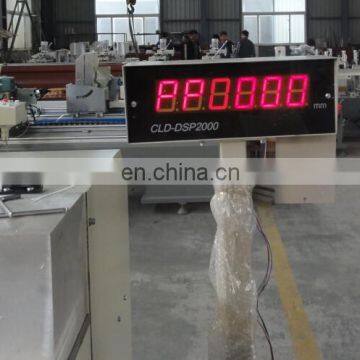

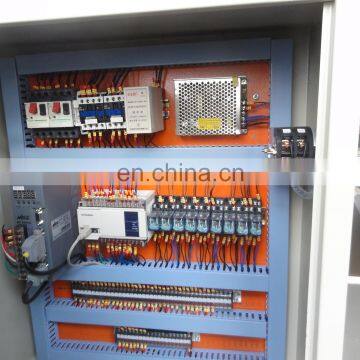

Digital display-PLC control system, esay to control and more precision

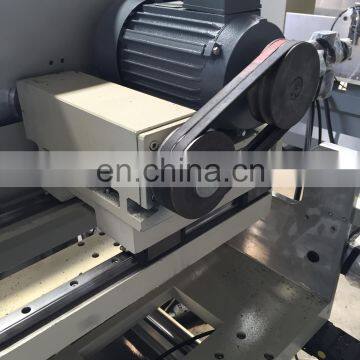

High pitch ball screw-lead motion,high accrate driving,locating and smooth working

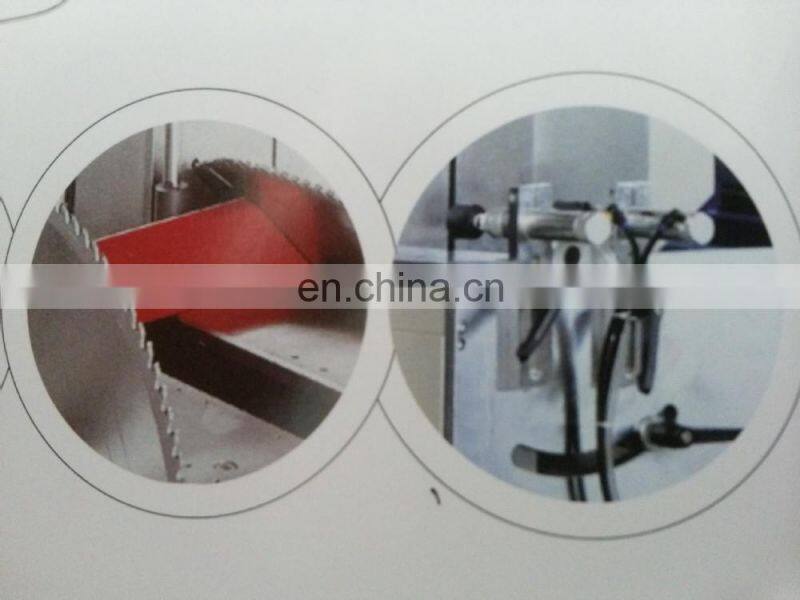

Imports Carbide Saw Blade - High precision long life time
Fastening Systems - More stable and energy efficient

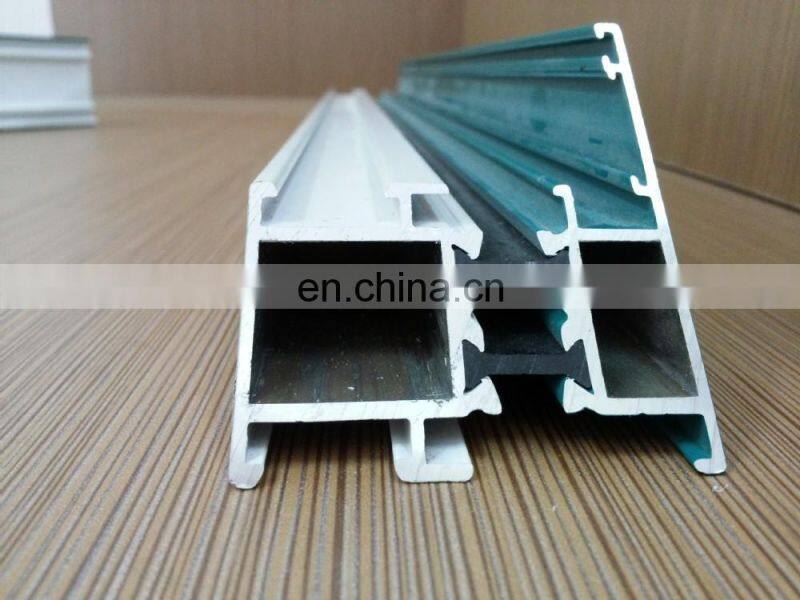

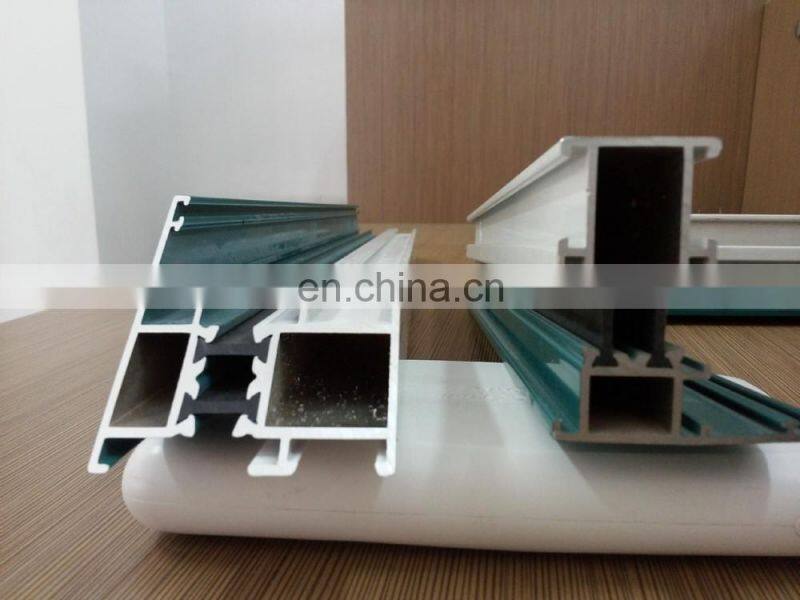

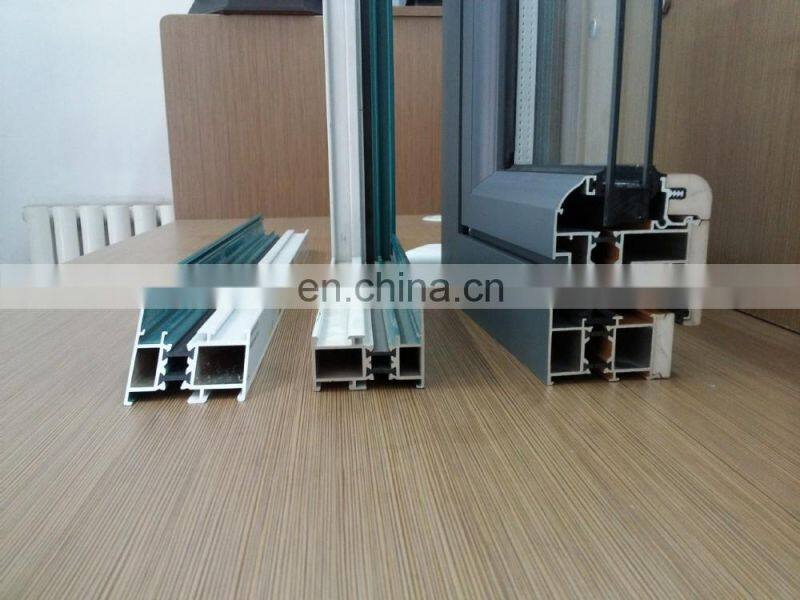

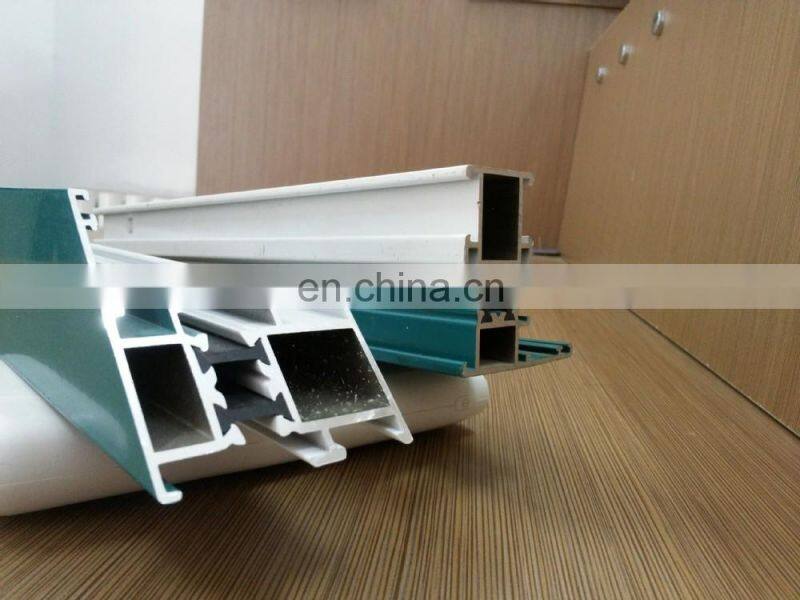

| Sample |
Packaging & Shipping

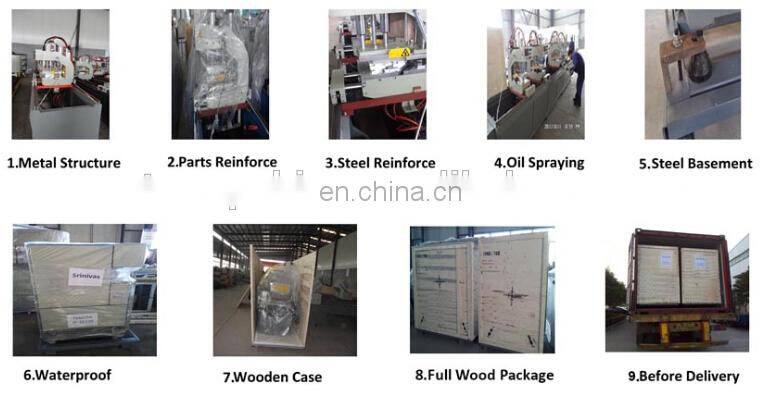

| Packing and shiping |
