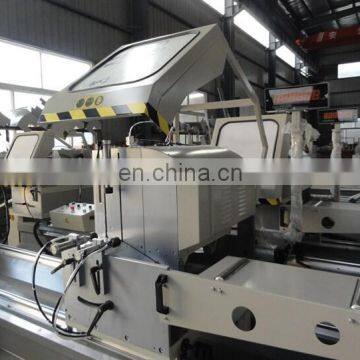

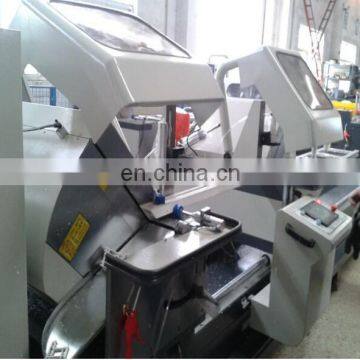

Cut Off Saw for Cutting Aluminum machine CNC Double Head Precision Cutting Saw With Digital Readout
| Equipment configuration |
Features:

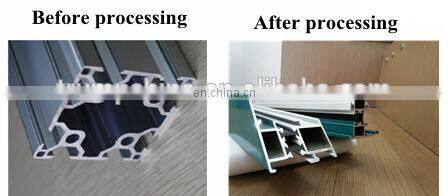

- For cutting Aluminum profile.
- With digital display for showing exacting cutting position. Friendly using.

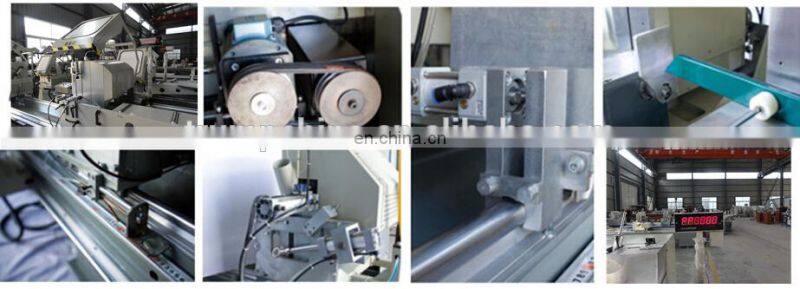

- The feeding system adopts imported linear guide pair, with high accuracy and stability.
- Auto 67.5°,45°and 90°cutting change
- Imported linear guiding pair ensured steady processing accuracy.

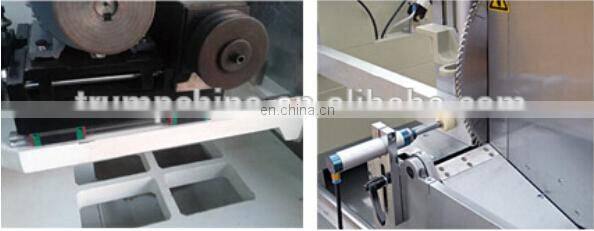

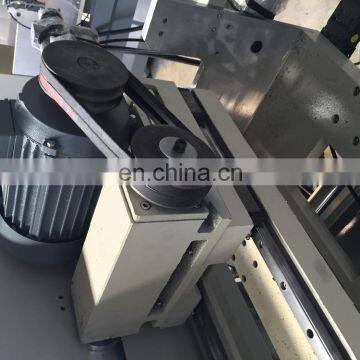

- Saw blade rotates smoothly due to high accuracy spindle.
- Hydraulic feeding systems ensure precise and stable feeding.
- Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
- Carbide saw blade is of accurate processing and high efficiency.
- Two heads can work together or single, when together work, one time can cut off the required length and angle
Parameter:
| Power supply | 3N~50Hz 380/220V or As Customer Specification | Saw-head motor | 2×2.2KW 2800r/min |
| Operation air pressure | 0.5~0.8MPa | Air consumption | 60L/min |
| Cutting length | Max 4200mm Min 385mm | Cutting width | Max 135mm |
| Cutting height | 900 : max 300mm 450 : max 200mm | Cutting angle | 90°,45°,67.5°(for spare ) |
| Cutting speed | Step less speed regulation 0-3m/min | Blade specification | ø500×ø30×4.4×Z120 |
| Repeat locating length | ≤0.2mm | Cutting angle allowance | ±5’ |
| Cutting profile surface plane | ≤0.1m | Cutting profile surface roughness | Ra12.5μm |
| Contour dimension | 5530×1750×1950 mm | Weight | 1800kg |
Main accessory:
Saw blade | Wagen | Solenoid valve | Germany FESTO |
| Cylinder | JPC(FESTO Joint Venture Brand) | Motor | Anhui Sanyang (Best ChineseMotor Brand) |

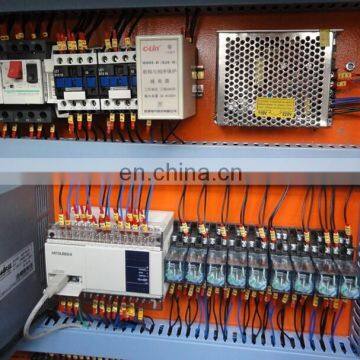

| Air Filter Device | STNC | Electrical Button and Switcher | Schneider |
| Linear Bearing System | HIWIN | Magnetic Grid | SIKO |
Standard accessory:
| Saw blade | 2pcs | Air Gun | 1pc | Certificate | 1pc |
| Coolant Spray Device | 2pcs | Mobile work piece supports | 2set | Complete tooling | 1set |
| Operation Manual | 1pc |
Our service
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
