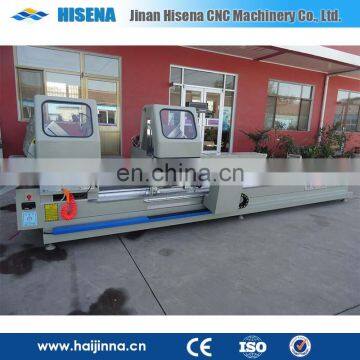

Aluminium Door- Window (Digital Dispaly) Double Head Cutting Machine LJB1A-500*4200
Specifications
aluminum window machine
1.45~90 degree
2.Used for aluminum profiles cutting
3.Work independently simultaneously
Main Features:
1. Used for aluminum profile and curtain wall profile cutting.
2.Cutting width is very large ,can realize multi-profiles cutting at the same time.
3. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
4. 45°and 90° cutting is available.
5. Saw blade rotate smoothly due to high accuracy main spindle.
6. Imported carbide saw blade give accurate processing and high endurance.
7. Imported linear bearing motion pair ensured steady processing accuracy.
8. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
9. Auto-opening guard shield ensured safety operation.
Main Technique Parameter:
Power supply | 380V 50Hz |
Main motor power: | Power 2 × 2.2KW |
Input power | 4.4kw |
Air pressure | 0.4-0 .6 M pa |
Air consumption | 200L /min |
Main motor rotation speed: | 2800rpm. |
Max/min Cutting length | 4200-370mm |
Saw blade dimension: | φ500× φ30 |
Cutting angle: | 90 ° 45 °67.5°22.5° |
Cutting W x H | 135x200 ( mm ) |
Repeat locating length | ≤0.2mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting profile surface roughness | Ra12.5um |
Size: (width × high × long) | 5500mm × 1750mm × 1900mm |
Weight: | 1500Kg |
1. Q : When you can arrange the shipment ?
A : We usually arrange the shipment in 10 days after we got the deposite . If the order is customized , we had to defered in 25 days.
2. Q : What's your plan when the machine failure ?
A : We can send you the accessery by mail for free in the term of service .Or we can send our engineers .
