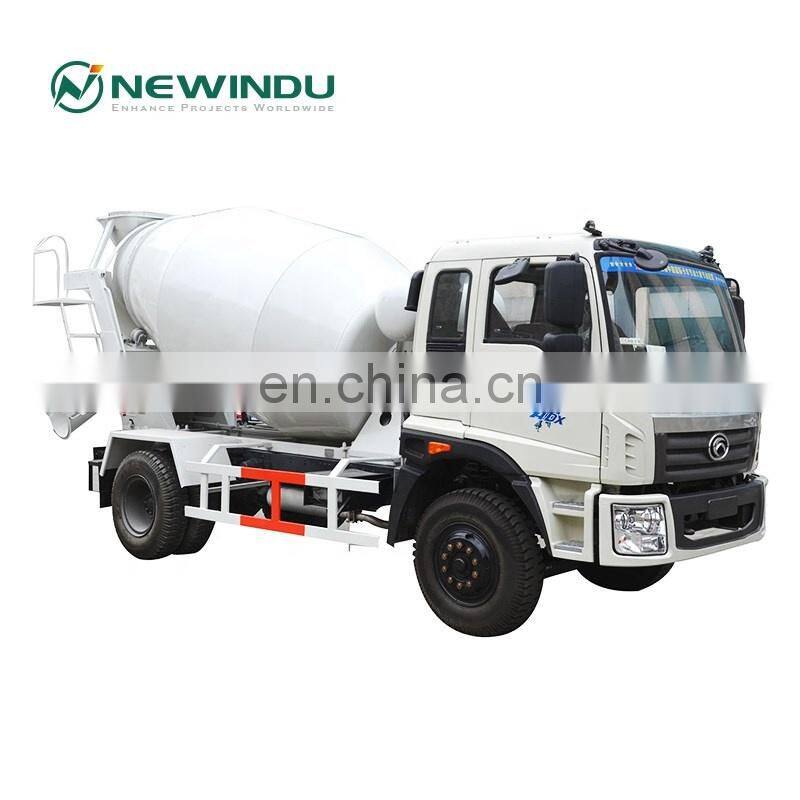

High Performance 5CBM Mini Concrete Machine Mixer Truck

FOB Price

US$ 57,000 - 57,488

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newindu	Place of Origin	Jiangsu, China
Certification	CCC ISO9001
Warranty	1 Year	Weight	13000kg
Dimension(LWH)	893525003890mm	Power Type	Diesel
Condition	New

Product Description

High Performence 5CBM Mini Concrete Machine Mixer Truck

Product Description

1. On the basis of in-depth and integrative research on theindustry, the new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.
2. Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete.
3. Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.

4. Hydraulic pump, motor and speed reducer of such world-famous brands are adopted to make the power more sufficient, system steady and reliable to service longer.

Technical Parameters

Catalog	Item	Unit	Parameter
Overall Parameter	Model		G08K
	Curb weight	kg	14000
	Max.total weight	kg	25000
	Outline dimension	(L×W×H) mm	8935×2500×3890
Chassis	Chassis brand
	Chassis model		ZZ1257N3641W
	Steering position		LHD
	Driving type		6×4
	Wheel base	mm	3625+1350
	Tire		10.00R20
	Power take-off		Flywheel
Engine	Model		WD615.69
	Max.power	kW	247
	Displacement	L	9.726
	Emission standard Euro Ⅲ		Euro II
Drum system	Geometric volume	m³	13.6
	Agitating volume	m³	8
	Max.diameter of drum	mm	2280
	Mixing drum length	mm	4795
	Slanting angle	°	15
	Rotating speed	r/min	0~14
	Feeding speed	m³/min	≥3
	Discharge speed	m³/min	≥2
	Discharge residual rate	%	< 0.4
	Slump scope	mm	50~210

Photos for Reference
