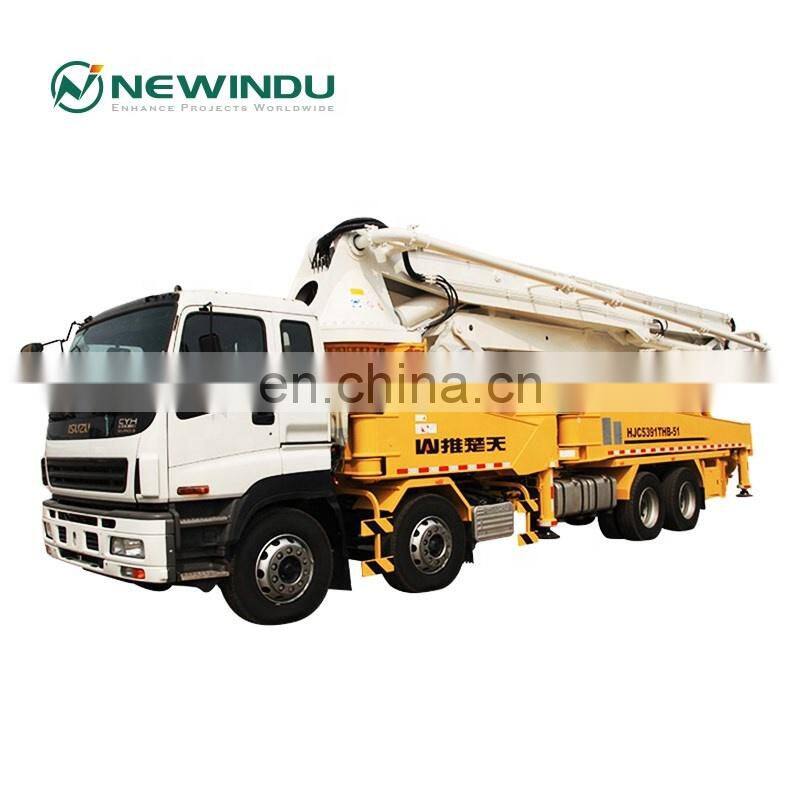

High Quality 49m Concrete Mixer THB49 With Pump

FOB Price

US$ 428,960 - 429,488

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

High Quality 49m Concrete Mixer THB49 with Pump

Product Description

Applicable to new countryside construction, urban construction, tunnels, airports, ports, high-speed, beam field, bridge construction, etc.

Technical Parameters

Item		Unit	Value
Pumping system	Max. Theory Output(high/low pressure)	m3/h	75/125
	Max. Theory Concrete Output Pressure(high/low pressure)	MPa	10/6
	Rated Working Pressure	MPa	32
	Pumping Frequency(high/low pressure)	min-1	15/25
	Hopper Capacity	L	600
	Filling Height	mm	1400
	Hydraulic System Type		Open Loop
	Distribution Valve		S-valve
	Oil Cylinder Dia*Stroke	mm	φ125×1400
	Concrete Cylinder Dia*Stroke	mm	φ230×1400
	Hydraulic Oil Cooling		Air cooling
	Recommended Concrete Slump	cm	12~23
	Max. Aggregate Dimension	mm	40
Placing boom	Structure Type		37-5RZ
	Max. Placing Depth	m	36.1
	Horizontal Placing Radius	m	32.6
	Placing Depth	m	25.5
	Slewing Angle		± 270º
	Pipe Diameter	mm	125
	End Hose Length	mm	3000
	Outriggers Span (Front×Rear×Side)	mm	9332×10130×9410

Photos for Reference
