Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > SANY SYG5360THB49 Type Mobile Lightweight Concrete Pump
SANY SYG5360THB49 Type Mobile Lightweight Concrete Pump
US$ 142,500 - 143,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SANY
Place of Origin:
Hunan, China
Model Number:
SYG5360THB49
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Used Stationary Concrete Mixer Machine With Pump TruckUS$ 150,000 - 151,000MOQ: 1 Unit -
SYG5418THB53 Concrete Mixer Pump From SANY MachineUS$ 150,000 - 151,000MOQ: 1 Unit
-
53m Vertical Reach Used Concrete Pumps Trucks for SaleUS$ 150,000 - 151,000MOQ: 1 Unit
-
Second Hand Concrete Stationary Pump Truck SANYUS$ 150,000 - 151,000MOQ: 1 Unit
-
Chinese Brand SANY Concrete Stationary PumpsUS$ 150,000 - 151,000MOQ: 1 Unit
Brand Name
SANY
Place of Origin
Hunan, China
Model Number
SYG5360THB49
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 Months
Weight
36400kg
Dimension(L*W*H)
12500*2500*4000mm
Power Type
Diesel
Condition
New
Power(W)
300kw
SANY SYG5360THB49 Type Mobile Lightweight Concrete Pump
Please Contact
Aring Zhou
Email: aring at
Wechat/Mobile/Whatsapp:+86 15855426352
Skype: zyy1520724641 at outlook
Product Description
Sany SYG5530THB 47 truck-mounted concrete pump has 47m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 47m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.
Main Parameters
| Model | SYG5360THB49 | |
| Dimension | Length | 12500 mm |
| Width | 2500 mm | |
| Height | 4000 mm | |
| Empty Height | 36450kg | |
| Boom&Outrigger | Vertical reach | 48.6m |
| Horizontal reach | 43.6m | |
| Reach depth | 30.8m | |
| Untolding reach | 13.9m | |
| 1st section-Length | 9760mm | |
| 1st section-Articulation | 89° | |
| 2nd section-Length | 7670mm | |
| 2nd section-Articulation | 180° | |
| 3rd section-Length | 7410mm | |
| 3rd section-Articulation | 180° | |
| 4th section-Length | 9670mm | |
| 4th section-Articulation | 235° | |
| 5th section-Length | 10060m | |
| 5th section-Articualtion | 215° | |
| Rotation | ±360° | |
| Outrigger spread L-R Front | 9300mm | |
| Outrigger spread L-R-Rear | 9620mm | |
| Pumping System | Output(Low/High-pressure) | 170/120 m3/h |
| Pressure(Low/High-pressure) | 8.3/12 Mpa | |
| Max.stroke per minute(Low/High-pressure) | 29/19 times/min | |
| Delivery cylinder diameter | 260mm | |
| Stroke Length | 1900mm | |
| Hydraulic system | Open | |
| Hydraulic system pressure | 32Mpa | |
| Hydraulic tank capacity | 680L | |
| Water tank capacity | 620L | |
| Pipe size | 125mm | |
| End hose length | 3m | |
| End hose diameter | 125mm | |
|
Chassis |
Engine power | 300/1800 kw/ rpm |
| Fuel tank capacity | 400L | |
| Displacement | 11.946L | |
| Max.speed | 80km/h | |
| Brake distance | ≤10/30m km/h | |

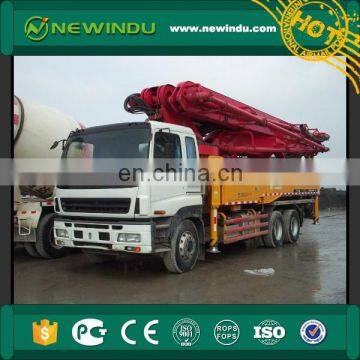

Product Image
