SYG5418THB53 Concrete Mixer Pump From SANY Machine

Name: SYG5418THB53 Concrete Mixer Pump From SANY Machine
Brand: SANY
Availability: InStock

FOB Price

US$ 150,000 - 151,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SANY	Place of Origin	Hunan, China
Model Number	SYG5418THB53	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 Year
Weight	42500KG	Dimension(LWH)	1385025004000mm
Power Type	Diesel	Condition	New
Power(W)	300KW

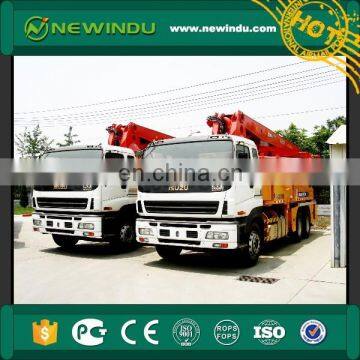

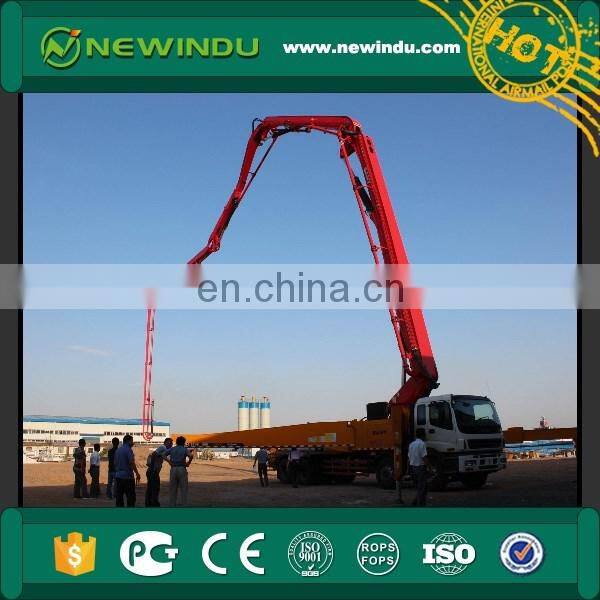

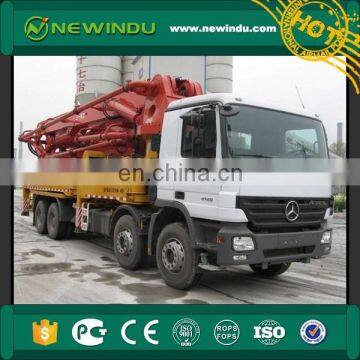

SYG5418THB53 Concrete Mixer Pump from SANY Machine

Please Contact

Aring Zhou

Email: aring at

Wechat/Mobile/Whatsapp:+86 15855426352

Skype: zyy1520724641 at outlook

Main Parameters

Model	SYG5418THB53
Dimension	Length	13850 mm
	Width	2500 mm
	Height	4000 mm
	Empty Height	42500kg
Boom&Outrigger	Vertical reach	53.5m
	Horizontal reach	48.5m
	Reach depth	34m
	Untolding reach	15.2m
	1st section-Length	11390mm
	1st section-Articulation	90°
	2nd section-Length	9230mm
	2nd section-Articulation	180°
	3rd section-Length	8750mm
	3rd section-Articulation	180°
	4th section-Length	9845m
	4th section-Articulation	240°
	5th section-Length	6730m
	5th section-Articualtion	215°
	6th section-Length	3350mm
	6th section-Articualtion	110°
	Rotation	±360°
	Outrigger spread L-R Front	9470mm
	Outrigger spread L-R-Rear	12680mm
Pumping System	Output(Low/High-pressure)	180/125 m³/h
	Pressure(Low/High-pressure)	8.3/12 Mpa
	Max.stroke per minute(Low/High-pressure)	29/19 times/min
	Delivery cylinder diameter	260mm
	Stroke Length	2100mm
	Hydraulic system	Open
	Hydraulic system pressure	32Mpa
	Hydraulic tank capacity	680L
	Water tank capacity	620L
	Pipe size	125mm
	End hose length	3m
	End hose diameter	125mm
Chassis	Engine power	300/1800 kw/ rpm
	Fuel tank capacity	400L
	Displacement	11.946L
	Max.speed	80km/h
	Brake distance	≤10/30m km/h

Product Image
