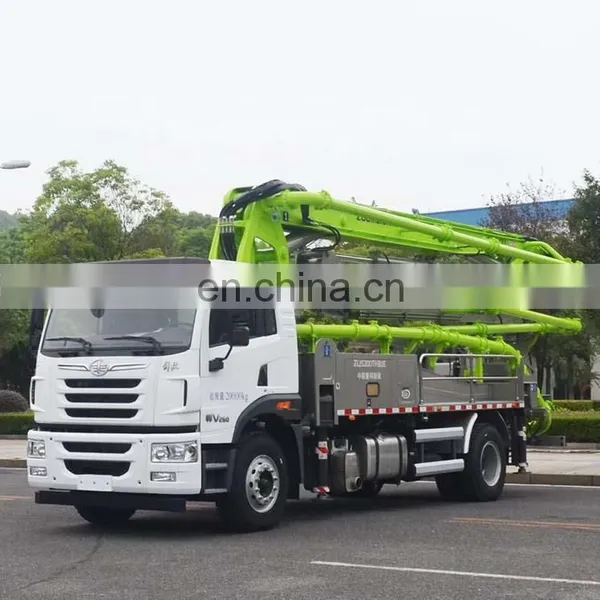

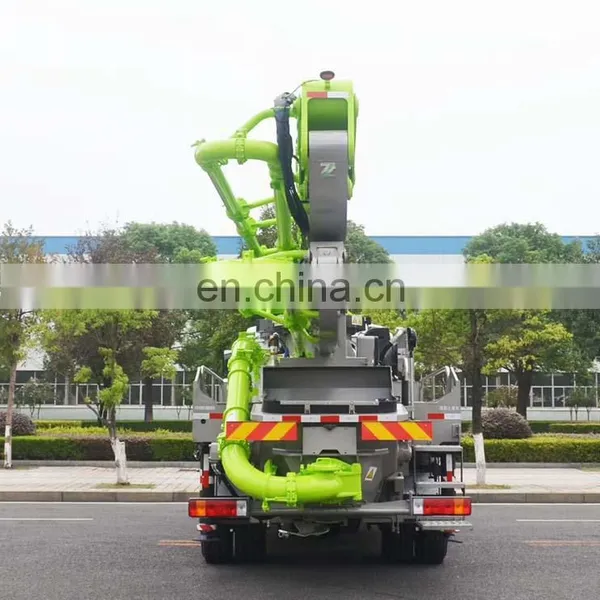

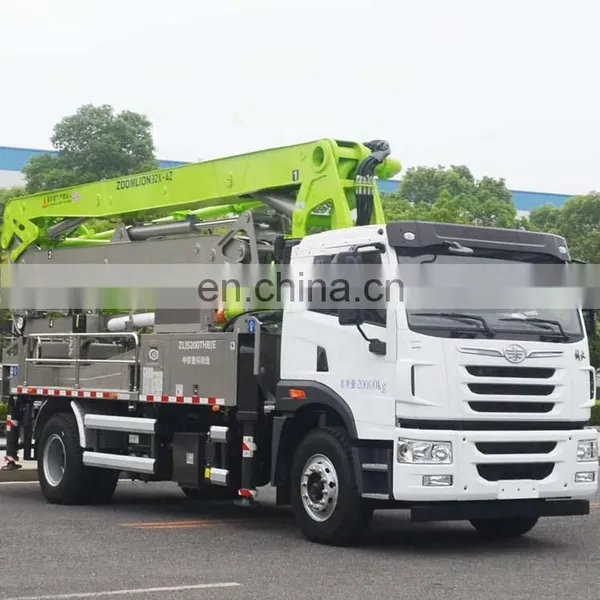

used Zoomlion 21.6m Concrete mixer Truck Mounted hydraulic Pumps 23X-4Z
• Compact in design, 22m pump mounted on 2-axle truck, total weight is less than 16 tons.
• Efficient pump unit, ideal for medium jobs.
• Agile placing boom with 3 arms and unfolding height 6.41m only, which gives a wide work range in narrow jobsite.
• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components.
Distribution valve |
S-valve |
|
|---|---|---|
Max. Concrete Output |
m3/h |
100/60 |
Max. Concrete Pressure |
bar |
80/120 |
Delivery Cylinder |
mm |
230 |
Stroke Length |
mm |
1700 |
Strokes |
1/min |
14/23 |
Hopper Capacity |
L |
550 |
Filling height |
mm |
1540 |
Hydraulic System |
Open |
|
Hydraulic oil cooling |
Double fans |
|
High/Low Press. Switch |
Manual |
|
Lubrication on pump |
Automatic |
|
Lubrication on hopper |
Automatic |
|
Boom Control Valve |
Proportional |
|
Number of Arms |
|
3 |
Folding System |
|
Z |
Max. Reach Vertical |
m |
21.6 |
Max. Reach Horizontal |
m |
18.2 |
Max. Reach Depth |
m |
11.4 |
Min. Unfolding Height |
m |
6.41 |
End Hose Length |
m |
3 |
Pipeline |
DN125/4 |
|
Slewing Range |
365° |
|
Slewing Motor |
1 |
|
Remote Control System |
Radio |
|
Water Pump |
15L/min, 120bar |
|
Tool kits with box |
Standard |
|
Technical data and characteristic subject to modifications without notice.
