Zoomlion 43m Mini Concrete Mixer Truck Mounted With Hydraulic Pumps
US$ 110,000 - 112,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Zoomlion
Place of Origin:
Hunan, China
Certification:
ISO CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zoomlion 49m Mobile Stationary Concrete Truck Mounted Pumps 49X-6RZ in MalaysiaUS$ 180,000 - 181,000MOQ: 1 Unit -
Used Zoomlion 52m Mobile Concrete Mixer Truck Mounted Pumps 52X-6RZ With Trucks in JapanUS$ 350,000 - 350,000MOQ: 1 Unit
-
Zoomlion 49/26 M3/h Small Concrete Mixer Trailer Pump HBT40.10.60RSUS$ 42,000 - 42,000MOQ: 1 Unit
-
Zoomlion 70/42 M3/h Foamed Concrete Trailer Pump HBT60.13.90SU With Diesel EngineUS$ 50,000 - 50,000MOQ: 1 Unit
-
Zoomlion 85/55 M3/h Portable Foam Concrete Mixer and Trailer Pump HBT80.14.174RSUUS$ 60,000 - 60,000MOQ: 1 Unit
Brand Name
Zoomlion
Place of Origin
Hunan, China
Certification
ISO CE
Warranty
1 Year
Dimension(L*W*H)
8220*8800*8900mm
Power Type
Diesel
Condition
New

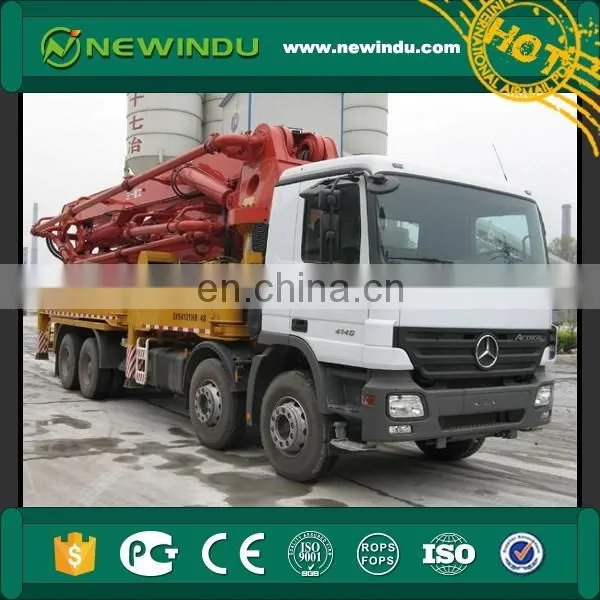

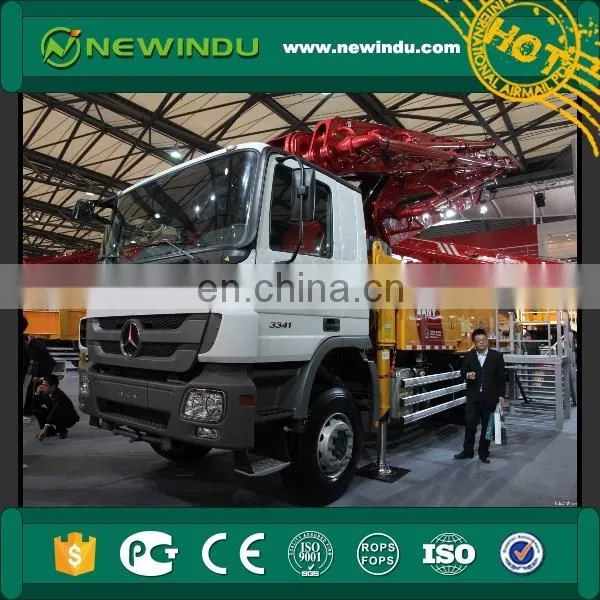

Zoomlion 43m mini Concrete Mixer Truck Mounted 43X-5RZ
Product Description
• Compact in design, 43m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.1m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.1m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
Main Parameters
| Model | Unit | 43X-5RZ | |
|---|---|---|---|
| Pump Unit | Max. Theor. output | m3/h | 140/90 |
| Max. Theor. concrete output Pressure | MPa | 7/11 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 27/17 | |
| Hopper capacity | L | 550 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | opened loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | Wind cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Boom Section | Structure type | 43X-5RZ | |
| Placing depth | m | 43 | |
| Max. horizontal distance | m | 39 | |
| Max. placing depth | m | 30.46 | |
| Slewing angle | ±270° | ||
| Boom number | 5 | ||
| The length of boom section | mm | 8350/7250/7050/7930/8420 | |
| Sections folding angle | 90°/180°/180°/240°/200° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 9100 | |
| Outriggers span (front×rear×side) | mm | 8220×8800×8900 | |
