Chinese SEM Mini Wheel Loader for Sale in Sri Lanka

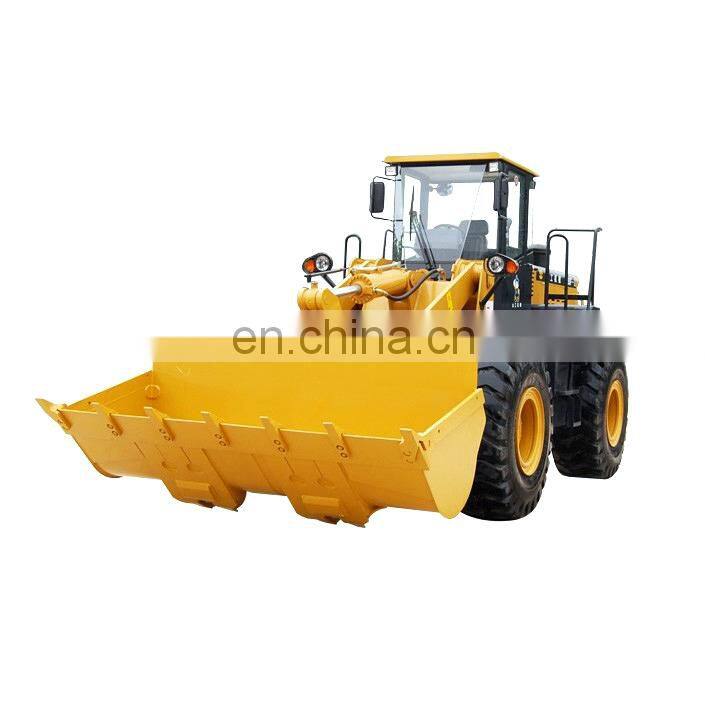

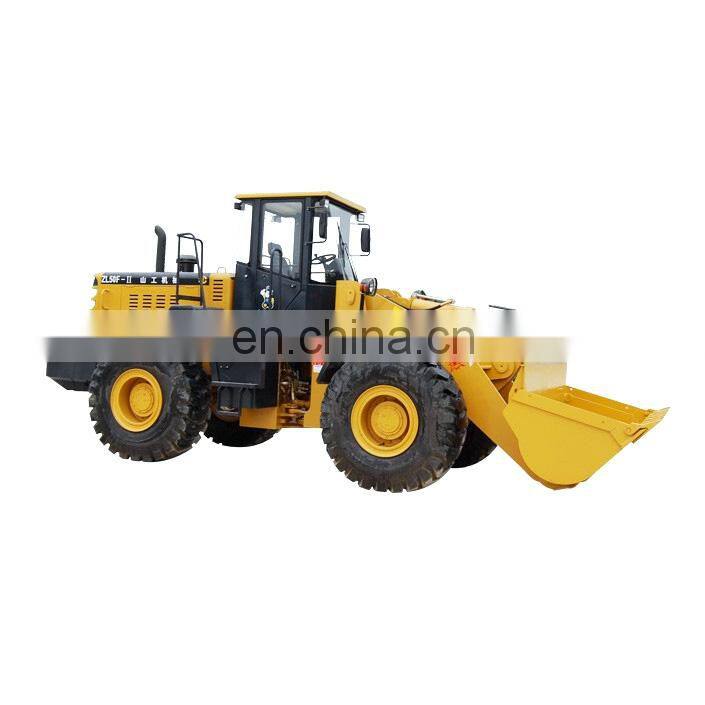

Chinese SEM Mini Wheel Loader for Sale in Sri Lanka photo-1

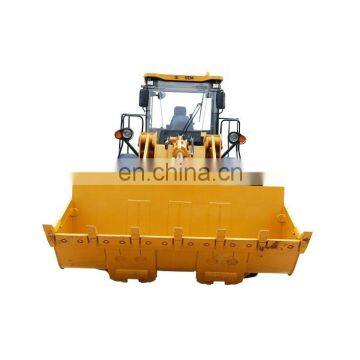

Chinese SEM Mini Wheel Loader for Sale in Sri Lanka photo-2

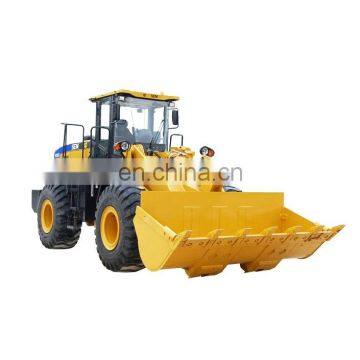

Chinese SEM Mini Wheel Loader for Sale in Sri Lanka photo-3
Chinese SEM Mini Wheel Loader for Sale in Sri Lanka photo-4
US$ 53,000 - 53,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SEM
Place of Origin:
Guangxi, China
Type:
Front Loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SEM
Place of Origin Guangxi, China
Type Front Loader
Certification CE ISO
Warranty 1 Year
Condition New
Dimension(Long * Breadth * High) 8085*2963*3463mm
Moving Type Wheel Loader

Chinese SEM Mini Wheel Loader  for Sale in Sri Lanka

Please Contact



Name: Aring Zhou

Mobile/Wechat/Whatsapp: +86-15855426352



Product Description

Hydraulic system

· Load sensing constant variable shunt hydraulic system
· Key hydraulic system components adopt the world famous brand suppliers.
· Shorter hydraulic cycle time
· High hydraulic tank
· Special pressure point
· Pilot control reducing driver fatigue



Cooling system

· Four module radiator to radiating engine coolant, inlet, hydraulic oil and transmission oil separately

· It can meet the demand of continues operating at a temperature of over 43degrees, and over 50degrees working environment can be satisfied with high temperature cooling system.
· The entire radiator designed with suspended dumping can works under the severe working conditions.



Easy maintenance

·   Separate- installed transmission and torque converter

·  Fixed axis transmission
· Lubrication points are centralized arrangement in working devices for easy maintenance.
· Air reservoir connect with pneumatic tool joint.
· Water tank protection can be opened to clean cooling module easily.



Safety

· Produced under the requirement of Caterpillar’s CPS production system.
· Three-point connect protection
· Reversing alarm and light ensure backing safety.
· Painting process of machine is friendly and no heavy metal pollution.





Main Parameters



Rated Load(kg)
5000
Operating Weight(kg)
16800
Bucket Capacity(m³)
2.7-4.5
Wheelbase(mm)
3300
Overall Dimensions (mm)(L*W*H)
8279*2963*3456
Turning Radius(mm)
6813
Max. Breakout Force(KN)
178
Max. Tractive  Force(KN)
168


Transmission
model
TR200
Transmission type
fixed shaft power shift transmission
gear shift
F4/R4
torque converter type
unipolar three element centripetal

Drive axle
Main  drive type
single screw speed reducer
wheel reduction type
primary planetary reducer
swing angle(°)
±11


Diesel engine
model
WP10G220E343
rated power(KW)
162
rated speed(r/min)
2000
displacement(L)
9.7


Hydraulic system
type
Quantitative/variable double pump converging/diverter hydraulic system
boom lift time(s)
5.1
Hydraulic cycle time (Total)(s)
9.3
working pressure(MPa)
18

brake system
Service Brake
Air assisted oil disc type four wheel brake
Parking Brake
 internal expansion


tire
Model
23.5-25
type
low pressure wide base diagonal tire
layer
16
pattern type
L3
