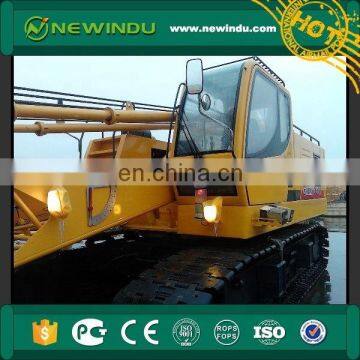

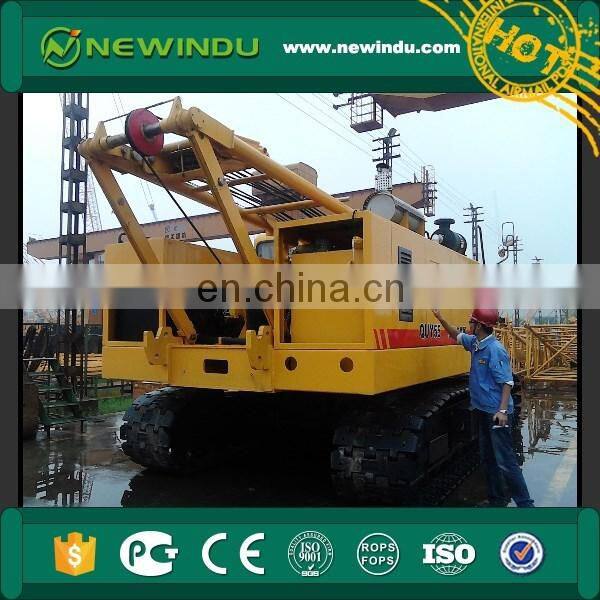

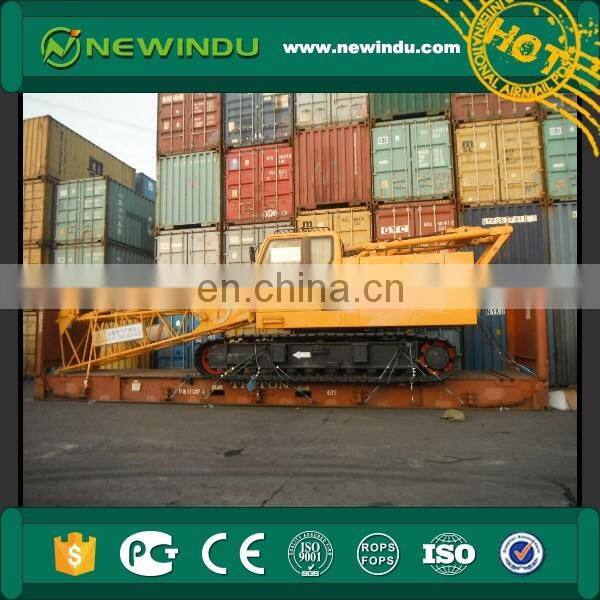

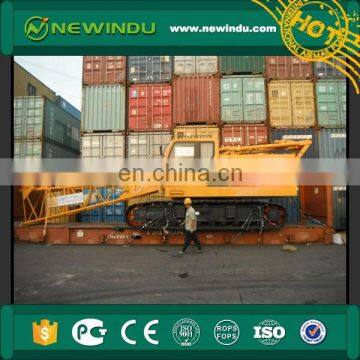

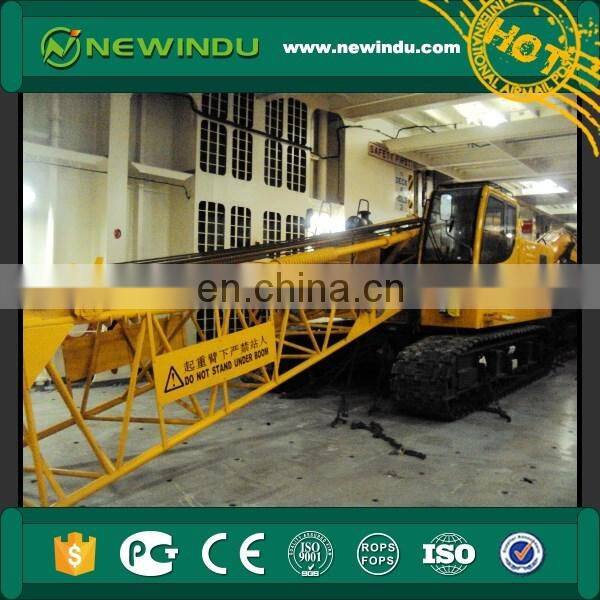

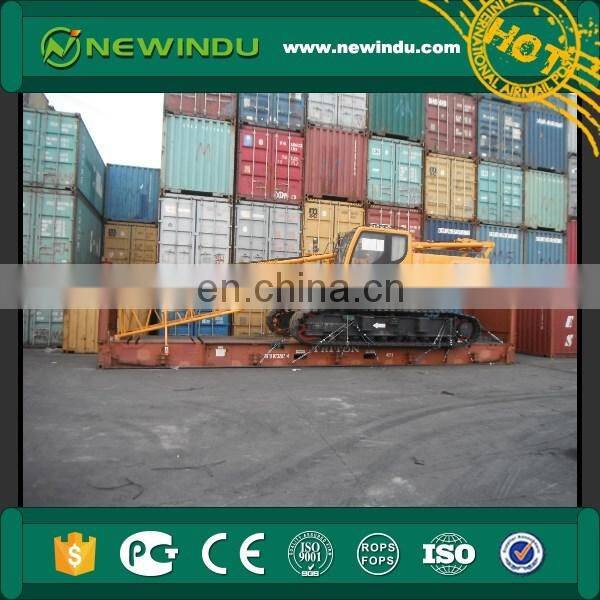

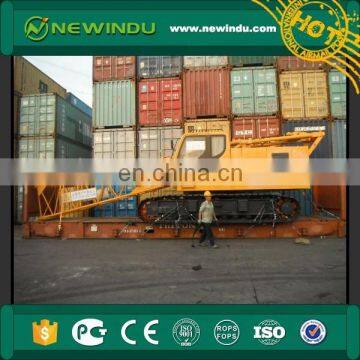

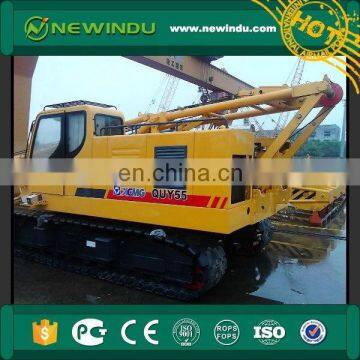

brand new 55 ton with Japan engine QUY55 crawler crane price

Item

Value

Remarks

Max. lifting capacity × Radiust × m

70×3.8

Deadweight with basic boomt

61

Main boom lengthm

12~57

Fixed jib lengthm

6~18

Max. lifting capacity of fixed jibt

6.4

Offset angle of fixed jib°

10,30

Max. length of main boom with fixed jib m

42+18

Max. speed of single rope on drum

Main winchm/min

120

The 4th rope layer

Auxiliary winchm/min

120

The 4th rope layer

Derricking winchm/min

45

The 4th rope layer

Slewing speedrpm

0~2.4

Traveling speedkm/h

0~1.35

Gradeability%

30

Ground pressureMPa

0.074

Overall dimensions (L×W×H)m

11.2×3.3×3.2

Incl. mast, boom bottom section

Engine

Rated power/ rotational speed

kW/rpm

153/2200

Max. output torque/ rotational speedNm/rpm

929/1300

Emission standard

TIER 3

Crawler gauge × ground contact length × track shoe widthmm

2540×5040×1000

Crawler carrier retracted

4000×5040×1000
