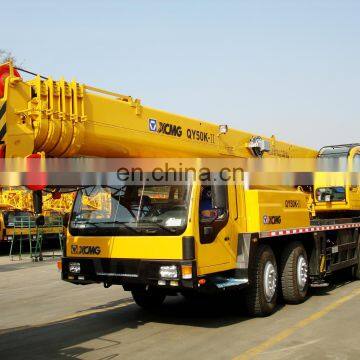

Chinese Famous Brand QY50KA 50ton Electric Truck Crane for Sale

FOB Price

US$ 170,000 - 170,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Certification	ISO CE
Warranty	1 Year
Application	Construction	Condition	New
Span	6.9m	Rated Lifting Moment	1822kN.m
Rated Loading Capacity	50t	Max. Lifting Height	57.7m

Product Description

Chinese Famous Brand QY50KA 50ton electric truck crane for sale

Please Contact

Steven Zheng

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Mobile / Whatsapp/ Wechat: +86-13063433538

Email: Steven at
Web:

Product Description

• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• Extend the lifting space and scope, greatly improving the lifting capacity of the front part.

SPECIFICATIONS
Maximum rated weight (t)	50	Maximum rated lifting moment (kn.m)	1764
Maximum lift height - base arm + secondary arm (m)	69.9	Maximum rated hoisting moment full boom (kn.m)	940.8
Maximum lifting speed of main winch (m/min)	130	Maximum lifting speed of secondary winch (m/min)	72
Full extension time of lifting boom (s)	95	Rotation speed (RPM)	2
Chassis engine model	QSL325	Rated power (kw/ RPM)	242/2200
Maximum travel speed (km/h)	76	Minimum clearance from the ground (mm)	260
The total length of the machine (mm)	13300	Full width (mm)	2750
Full height of the machine (mm)	3650	Vertical x horizontal (m)	5.92 x 6.9
