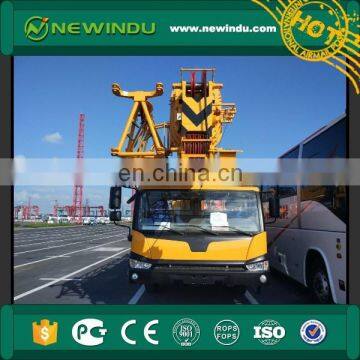

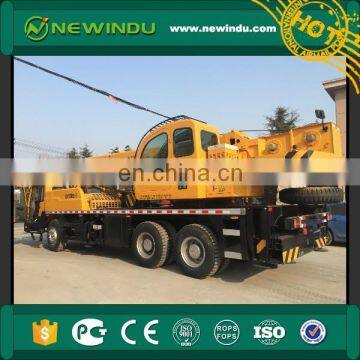

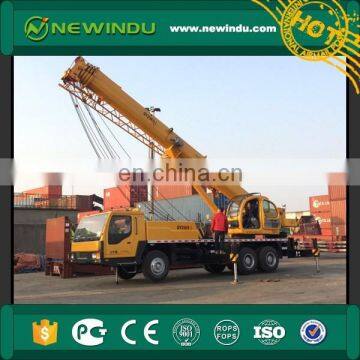

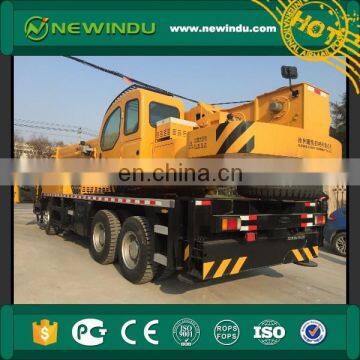

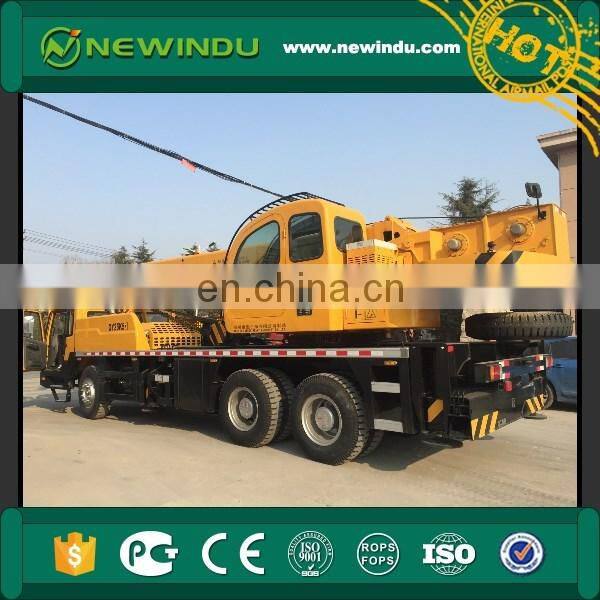

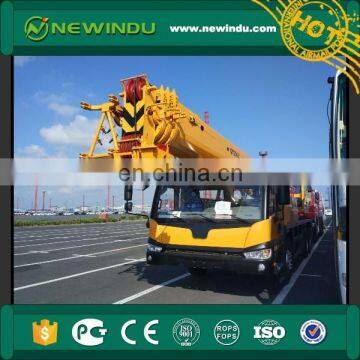

30 ton Mobile Truck Hoist Crane QY30K5-I
Aring Zhou
Email: aring @newindu.com
Wechat/Whatsapp/Mobile: +86 15855426352
Skype: zyy1520724641 @outlook.com
| Dimension | Unit | QY30K5-I | |
|---|---|---|---|
| Overall length | mm | 12570 | |
| Overall width | mm | 2500 | |
| Overall height | mm | 3390 | |
| Weight | |||
| Total weight in travel | kg | 32400 | |
| Front axle load | kg | 7000 | |
| Rear axle load | kg | 25400 | |
| Power | |||
| Engine model | SC8DK280Q3 | WD615.329 | |
| Engine rated power | kW/(r/min) | 206/2200 | 213/2200 |
| Engine rated torque | N.m/(r/min) | 1112/1400 | 1160/1400 |
| Travel | |||
| Max. travel speed | km/h | 80 | |
| Min. turning diameter | m | 22 | |
| Min. ground clearance | mm | 291 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 13 | |
| Max. grade ability | % | 40 | |
| Fuel consumption for 100km | L | 40 | |
| Main performance | |||
| Max. rated total lifting capacity | t | 30 | |
| Min. rated working radius | mm | 3000 | |
| Turning radius at turntable tail | m | 3.065 | |
| Max. lifting torque | kN.m | 1025 | |
| Base boom | m | 10.6 | |
| Fully extended boom | m | 40.4 | |
| Fully extended boom+ jib | m | 48.7 | |
| Longitudinal outrigger span | m | 5.85 | |
| Lateral outrigger span | m | 6 | |
| Working speed | |||
| Boom luffing time | s | 68 | |
| Boom full extension time | s | 150 | |
| Max. swing speed | r/min | 2.5 | |
| Max. speed of main winch (single rope) (no load) | m/min | 120 | |
| Max. speed of aux. winch (single rope) (no load) | m/min | 120 | |
• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
