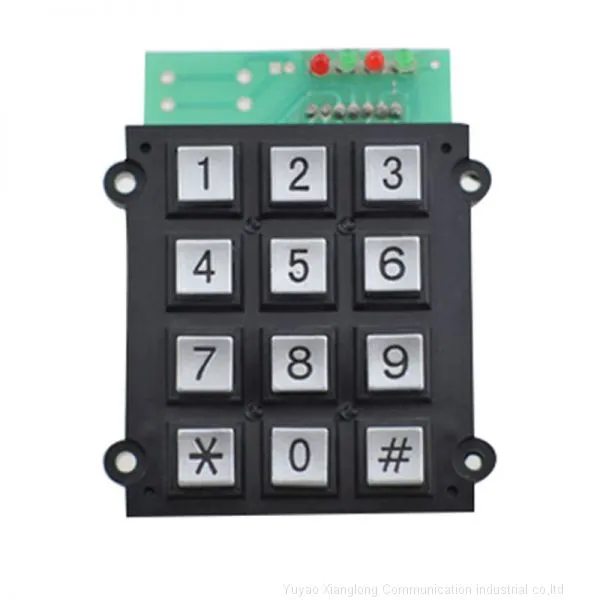

Help CenterIP65 Dynamic 12keys Keypad With USB Connect for Security System
Related Products
-
12 Button Customized Zinc Alloy Waterproof Metal Keypad for Access ControlUS$ 7.5 - 10MOQ: 10 Pieces -
16 Keys Round Button Digital Metal Keypad for Public TelephoneUS$ 10 - 13MOQ: 10 Pieces
-
1x4 Layout Zinc Alloy Vandal Proof Elevator KeypadUS$ 4 - 5MOQ: 10 Pieces
-
4x4 Highly Anti-destructive Power Plastic Telephone Outdoor KeypadNegotiableMOQ: 100 Pieces
-
4x3 Epoxy Resin Gilding PCB Digital Zinc Alloy KeypadNegotiableMOQ: 100 Pieces
Specifications:
MECHANICAL DATA | |
Keys |
12 Keys |
Switching Material |
Carbon-on-gold key switch technology PCB |
Actuation Force |
0.6 N+/0.1N(pressure point) |
Frame/Keys Materials |
ABS Plastic |
Dimensions |
62.0mm*70.2mm(L x W) |
G.W. |
110g approx |
LED color |
Customized/Blue LED regular |
Key Size |
14.0mm*14.0mm |
Rubber Life |
More than 500000 cycles |
ELECTRICAL DATA | |
Power Supply Voltage |
3V DC |
Current Rating |
Appox. 45mA |
Power Comsumption |
Under 300mW for operation,under 200mW for non-operation |
Contact Resistence |
200 Ohms(Max) |
Electrical Lifetime |
>5 years |
Interface |
Male pin out connector |
OS |
All Windows,Linux,Unix,Mac OSX |
Environment Adaptability | |
Operating Temperature |
-20 ℃ to + 75 ℃ |
Storage Temperature |
-3 5 ℃ to + 85 ℃ |
Operating RH |
30-90% RH |
Atmospheric Pressure |
60-106Kpa |
Reliability | |
Protection Level |
IP65(Front Panel) |
Vandal Resistant |
IK09 |
1.Keypad Applications
2.Customized Keypad references as for Backlighting Keypad
3.Keypad Choosing Connection Interfaces
