Quick Details:

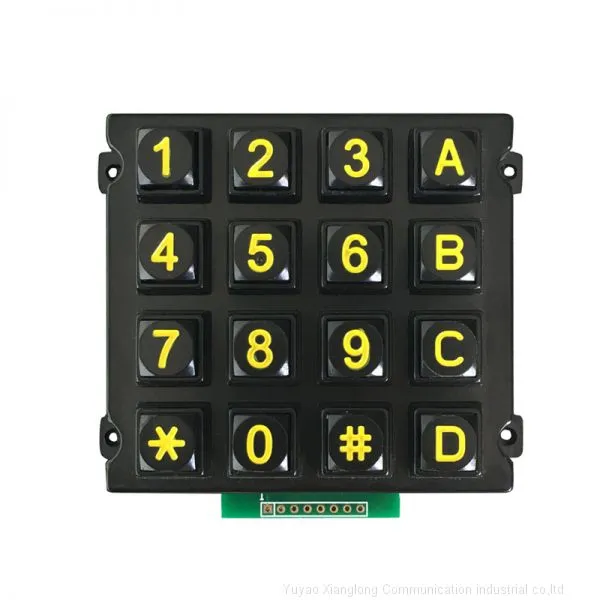

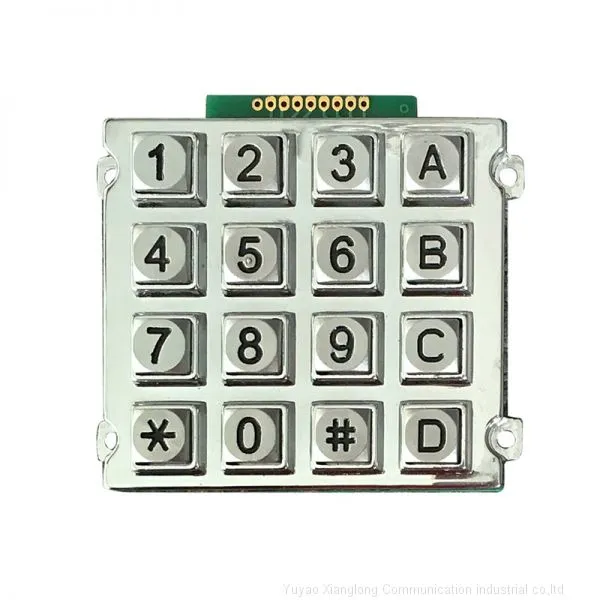

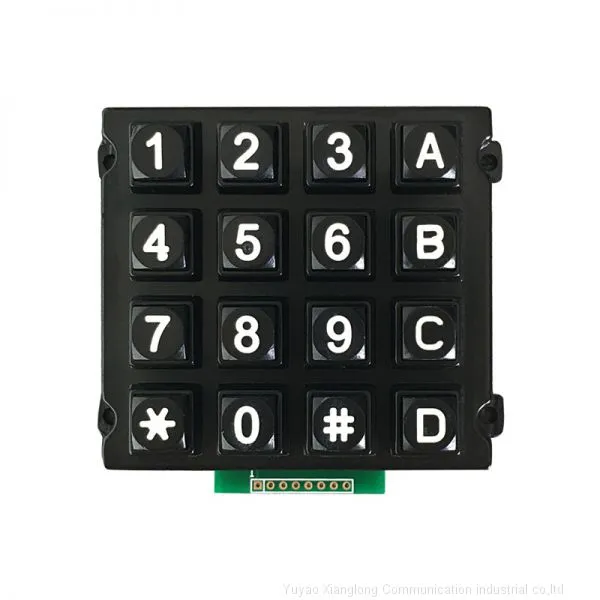

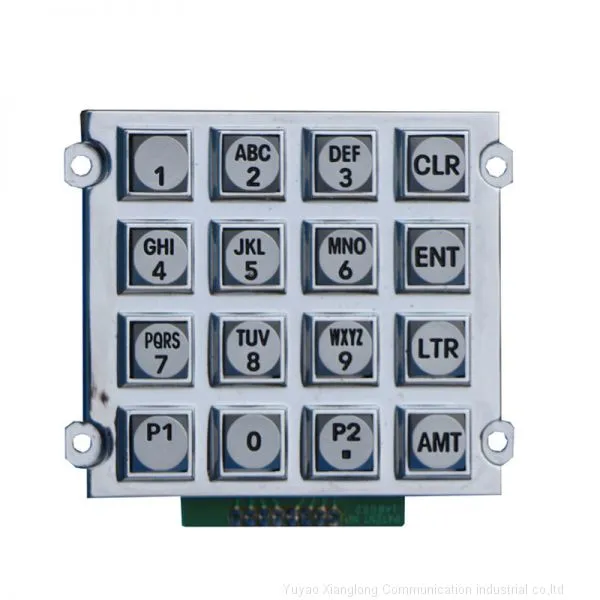

1. 16 Keys Vandal proof IP67 zinc alloy, Dot matrix keypad .
2. carbon -on-gold key switch technology .
3. rear mounting/bracket mounting
Descriptions:
1. 16 keys IP65 dynamic compact format vandal proof ,Industrial numeric keypad with industrial PCB electronics .
2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise .
3. Ease of installation and maintenance.
4.Colors of led can be customized according to customer ' s requirements. Blue,yellow,green and red are available.
Special Features:
1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Applications:
A. unsupervised or semi-supervised positions of varied access control systems,security system , household applications.
Specifications:
MECHANICAL DATA | |
Keys |
16 Keys |
Switching Material |
Carbon-on-gold key switch technology PCB |
Actuation Force |
0.6 N+/0.1N(pressure point) |
Frame/Keys Materials |
Zinc Alloy |
Dimensions |
62.6mm*70(L x W) |
G.W. |
180g approx |
LED color |
Non-backlit |
Key Size |
10.0mm*10.0mm |
Rubber Life |
More than 500000 cycles |
ELECTRICAL DATA | |
Power Supply Voltage |
3V DC |
Current Rating |
Appox. 45mA |
Power Comsumption |
Under 300mW for operation,under 200mW for non-operation |
Contact Resistence |
200 Ohms(Max) |
Electrical Lifetime |
>5 years |
Interface |
Male pin out connector |
OS |
All Windows,Linux,Unix,Mac OSX |
Environment Adaptability | |
Operating Temperature |
-20 ℃ to + 75 ℃ |
Storage Temperature |
-3 5 ℃ to + 85 ℃ |
Operating RH |
30-90% RH |
Atmospheric Pressure |
60-106Kpa |
Reliability | |
Protection Level |
IP65(Front Panel) |
Vandal Resistant |
IK09 |
1.Keypad Applications
2.Customized Keypad references as for Backlighting Keypad
3.Keypad Choosing Connection Interfaces
Just Some Application Area we serve:
| Detension Centers | Halfway Houses |
| Hospitals | Jails|Inmate |
| Correctional facilities | Drug and Alcohol Rehabilitations |
| Prisons | Transitional Housing |
| Behavioral health facilities | salvation Army |
| Re-entry facilities | Substance Abuse Rehabilitations |
| Train Stations | Government Facilities |
| Mining Area | Oil and Marine |
Company Profile
1. Founded in 2005,is a production and sales of outdoor phone accessories and machine-based manufacturing company
2. Advanced equipment,modern production line,make the accessories products reached 5,000pcs/day.
3. More than 90% component of products made by the company own production.
4. ISO9001 quality system certification, CE certification, all kinds of test report.
5. More than 95% of products are exported to North America, Western Europe, Southeast Asia and other regions.
Factory Show:
OUR TEAM
Attn:Alice Wei
Skype:+86 13858208075
Wechat:13858208075
QQ:3004537440
Mob:86-13858208075
1. Q: How long is the warranty period?
A: 12 months .
2. Q: How to pay?
A: TT&Western Union&Paypal
3. Q: How to pay the deposit?
A: Small order,100% Payment in advance.
For much bigger order,50% deposit advance,50% balance before shipping.
4. Q: How to ensure the quality of the products?
A: Every piece of our products will be under strict and repeated tests before delivery.And representative inspector will be welcomed.
5. Q: How is the shipping?
A: 1000 pcs or more within 30 days and samples will be shipped within 2-5 days.
6. Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
7. Q: When will I get my products after delivery?
A: It varies from different places. We will recommend the best and fastest shipping for you.
8. Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery.
9.Q: Do you accept customized keypad ?
A: Yes, OEM and ODM are available for us, Our R&D team work in this field since 2005.
