Description 4-20mA Temperature transmitter
Temperature transmitter transducer sensor is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.

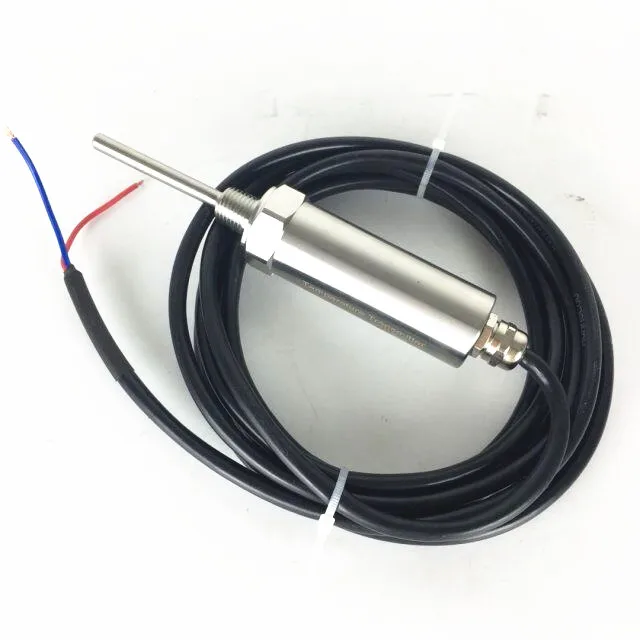

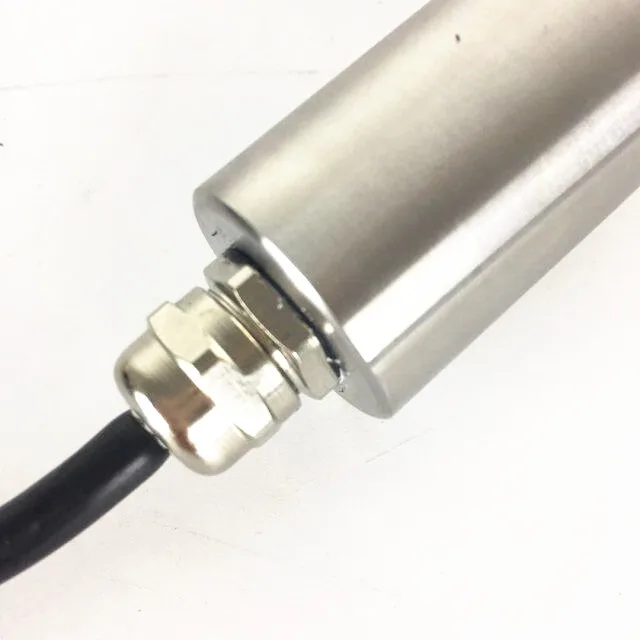

Detailed Images 4-20mA Temperature transmitter
Specification 4-20mA Temperature transmitter
| Measuring media | liquid, gas |
| Measuring range | -50-300 ℃ |
| Power supply range | 9 ~ 36VDC |
| Output signal | 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485 |
| Probe material | stainless steel 304 |
| Accuracy class | ± 0.5 ℃ |
| Ambient temperature | -40 ~ 85 ℃ |
| Stability | ± 0.1% FS / Year |
| Protection | IP65 |
| Pressure Level | 10MPa (above can be customized) |
| Maximum power | urrent type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage |
| Load characteristics |
current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω Voltage type load ≥100kΩ |
Features 4-20mA Temperature transmitter
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Applications 4-20mA Temperature transmitter
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
