ZKLF2575-2RS/P4 Thrust Angular Contact Ball Screw Bearings for the Machines Tools
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
ZKLF2575-2RS/P4
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
7208CTYNSULP4 40*80*18mm Single Row Angular Contact Bearings Super Precision Spindle BearingsUS$ 100 - 1000MOQ: 1 Piece -
7209CTYNSULP4 45*85*19mm Single Row Angular Contact Bearings Super Precision Spindle BearingsUS$ 100 - 1000MOQ: 1 Piece
-
7210CTYNSULP4 50*90*20mm Single Row Angular Contact Bearings Super Precision Spindle BearingsUS$ 100 - 1000MOQ: 1 Piece
-
7211CTYNSULP4 55*100*21mm Single Row Angular Contact Bearings Super Precision Spindle BearingsUS$ 100 - 1000MOQ: 1 Piece
-
7212CTYNSULP4 60*110*22mm Single Row Angular Contact Bearings Super Precision Spindle BearingsUS$ 100 - 1000MOQ: 1 Piece
Brand Name
MONTON
Place of Origin
China
Model Number
ZKLF2575-2RS/P4
Number of Row
Single Row
Seals Type
seals
Precision Rating
P4
Outside Diameter
10, 1000
Bore Size
10, 1000
Detailed Product Description
| Material: | GCr15 | Accuracy: | P4 |
|---|---|---|---|
| Structure: | Angular Contact Ball Bearings | Type: | Ball Screw |
| Customers: | DMG,FFG,etc | Market: | Germany,Japan,Italy,USA,etc |
| Prducts | Thrust Angular Contact ball bearing |
| Brand | Monton |
| Model |
ZKLF2575-2Z ZKLF2575-2RS ZKLF2575-2RS-PE ZKLF2575-2RS-2AP |
| Precision | P4 P5 |
| Clearance | C3 C4 |
| Quality standard | ISO9001:2000 standard |
| Service | OEM service such as DMG,FFG,etc |
| Delivery date | Normally ready goods and stock |
| Payment terms |
A:100% L/C at sight B:30% T/T in advance .70% against copy of B/L C:Western Union D:Paypal |
| Application | Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
| Package |
1.Industrial packing:Plastic tubes/Outer cartons/Pallets 2.Single box packing:Single box/Outer cartons/Pallets 3.According to your request |
ZKLF2575 Angular Contact Ball Bearings , Machines Tools ABEC 2RS ball bearing

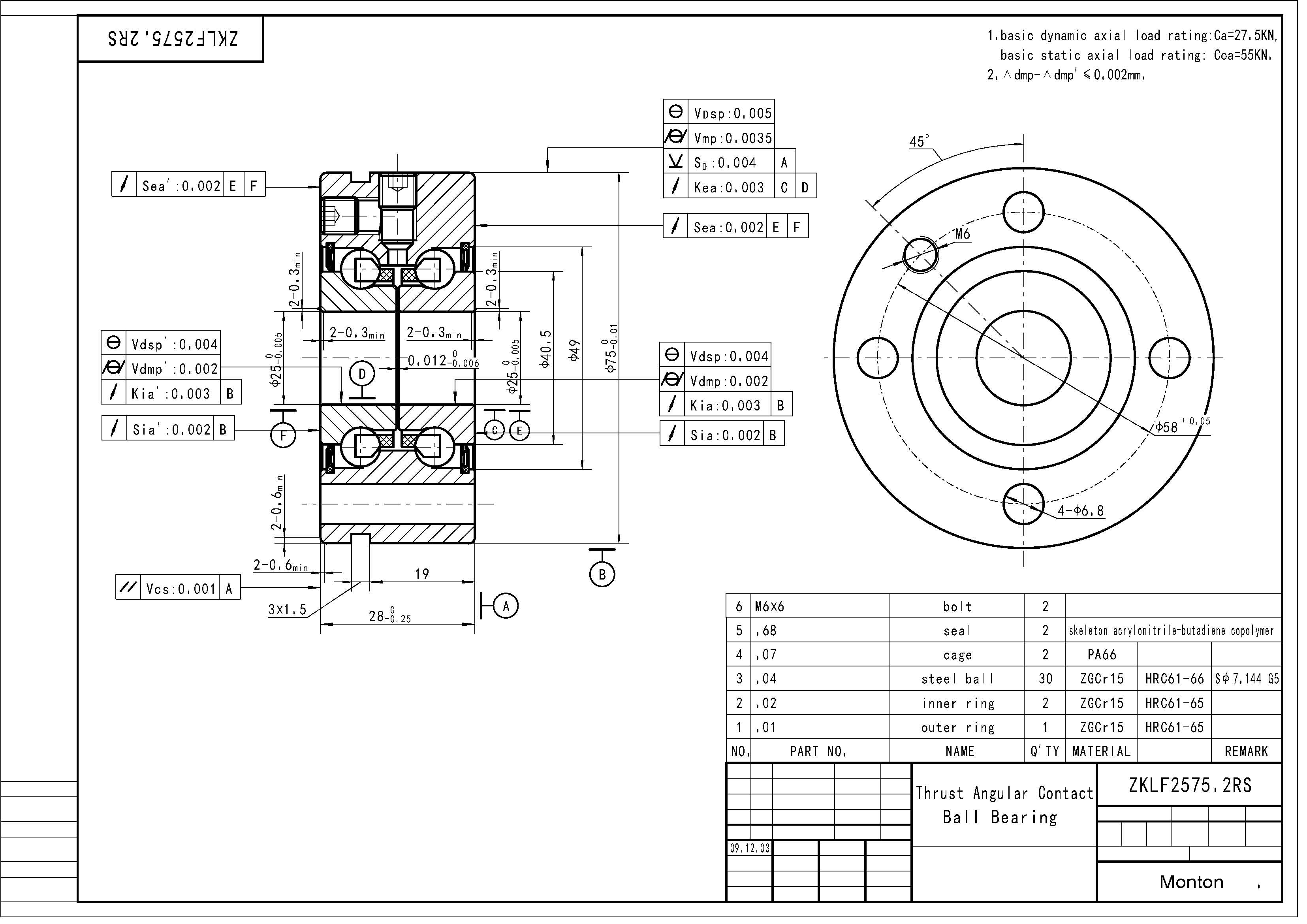

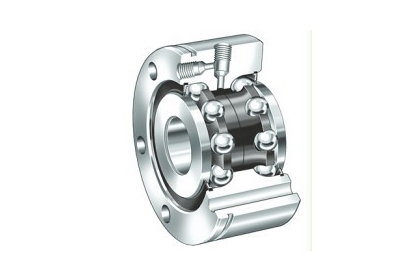

Axial angular contact ball bearing ZKLF 2575.2RS/2Z
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Here below is the exact bearing codes information:
| Designation | Mass | Dimensions | Dimensions | t | Setscrew | Basic Load Ratings | Limiting | |||||||||||
| d | D | B | d1 | D1 | r | r1 | J | d2 | b | l | Cr | Cor | Speed | |||||
| -0.25 | min. | min. | min. | min. | min. | spec | amount | Dynamic | Static | grease | ||||||||
| Kg | mm | mm | Q'ty×t | kN | Rpm | |||||||||||||
| ZKLF 1255.2RS | 0.37 | 12 | 55 | 25 | 25 | 33.5 | 0.3 | 0.6 | 42 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17 | 24.7 | 3800 |
| ZKLF 1255.2Z | 0.37 | 12 | 55 | 25 | 25 | 33.5 | 0.3 | 0.6 | 42 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17 | 24.7 | 7600 |
| ZKLF 1560.2RS | 0.43 | 15 | 60 | 25 | 28 | 36 | 0.3 | 0.6 | 46 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17.9 | 28 | 3500 |
| ZKLF 1560.2Z | 0.43 | 15 | 60 | 25 | 23 | 12 | 0.3 | 0.6 | 46 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 17.9 | 28 | 7000 |
| ZKLF 1762.2RS | 0.45 | 17 | 62 | 25 | 23 | 12 | 0.3 | 0.6 | 48 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 18.8 | 31 | 3300 |
| ZKLF 1762.2Z | 0.45 | 17 | 62 | 25 | 25 | 14 | 0.3 | 0.6 | 48 | 6.5 | 3 | 17 | 3×120° | M6 | 3 | 18.8 | 31 | 6600 |
| ZKLF 2068.2RS | 0.61 | 20 | 68 | 28 | 25 | 14 | 0.3 | 0.6 | 53 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 26 | 47 | 3000 |
| ZKLF 2068.2Z | 0.61 | 20 | 68 | 28 | 30 | 16 | 0.3 | 0.6 | 53 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 26 | 47 | 5400 |
| ZKLF 2575.2RS | 0.72 | 25 | 75 | 28 | 30 | 16 | 0.3 | 0.6 | 58 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 27.5 | 55 | 2600 |
| ZKLF 2575.2Z | 0.72 | 25 | 75 | 28 | 32 | 20 | 0.3 | 0.6 | 58 | 6.5 | 3 | 19 | 4×90° | M6 | 4 | 27.5 | 55 | 4700 |
| ZKLF 3080.2RS | 0.78 | 30 | 80 | 28 | 32 | 20 | 0.3 | 0.6 | 63 | 6.5 | 3 | 19 | 6×60° | M6 | 6 | 29 | 64 | 2200 |
| ZKLF 3080.2Z | 0.78 | 30 | 80 | 28 | 34 | 23 | 0.3 | 0.6 | 63 | 6.5 | 3 | 19 | 6×60° | M6 | 6 | 29 | 64 | 4300 |
| ZKLF 3590.2RS | 1.13 | 35 | 90 | 34 | 34 | 23 | 0.3 | 0.6 | 75 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 41 | 89 | 2000 |
| ZKLF 3590.2Z | 1.13 | 35 | 90 | 34 | 40 | 25 | 0.3 | 0.6 | 75 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 41 | 89 | 3800 |
| ZKLF 40100.2RS | 1.46 | 40 | 100 | 34 | 40 | 25 | 0.3 | 0.6 | 80 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 43 | 101 | 1800 |
| ZKLF 40100.2Z | 1.46 | 40 | 100 | 34 | 45 | 32 | 0.3 | 0.6 | 80 | 8.5 | 3 | 25 | 4×90° | M8 | 4 | 43 | 101 | 3300 |
| ZKLF 50115.2RS | 1.86 | 50 | 115 | 34 | 45 | 32 | 0.3 | 0.6 | 94 | 8.5 | 3 | 25 | 6×60° | M8 | 6 | 46.5 | 126 | 1500 |
| ZKLF 50115.2Z | 1.86 | 50 | 115 | 34 | 50 | 40 | 0.3 | 0.6 | 94 | 8.5 | 3 | 25 | 6×60° | M8 | 6 | 46.5 | 126 | 3000 |
| ZKLF 60145.2Z | 4.3 | 60 | 145 | 45 | 50 | 40 | 0.3 | 0.6 | 120 | 8.5 | 3 | 35 | 6×60° | M8 | 8 | 84 | 214 | 3000 |
| ZKLF 70155.2Z | 4.9 | 70 | 155 | 45 | 59 | 45 | 0.3 | 0.6 | 130 | 8.5 | 3 | 35 | 8×45° | M8 | 8 | 88 | 241 | 2800 |
| ZKLF 80165.2Z | 5.3 | 80 | 165 | 45 | 59 | 45 | 0.3 | 0.6 | 140 | 8.5 | 3 | 35 | 8×45° | M8 | 8 | 91 | 265 | 2700 |
| ZKLF 90190.2Z | 8.7 | 90 | 190 | 55 | 64 | 50 | 0.3 | 0.6 | 165 | 10.5 | 3 | 45 | 8×45° | M10 | 8 | 135 | 395 | 2300 |
| ZKLF 100200.2Z | 9.3 | 100 | 200 | 55 | 64 | 50 | 0.3 | 0.6 | 175 | 10.5 | 3 | 45 | 8×45° | M10 | 8 | 140 | 435 | 2150 |
