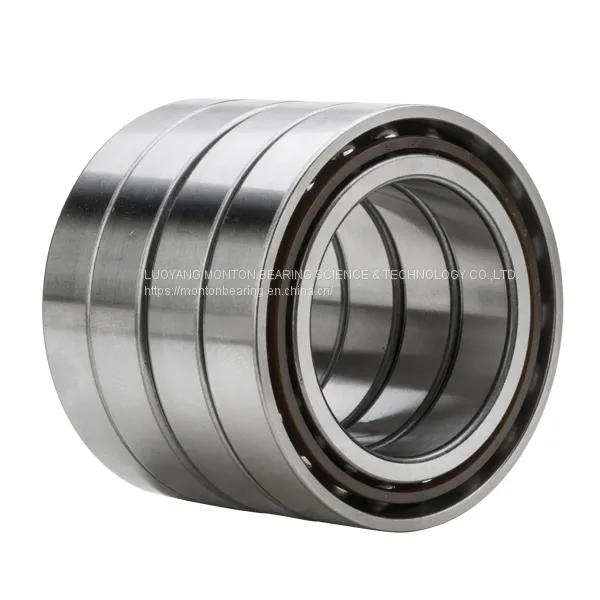

7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors

7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors thumbnail-1
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors thumbnail-2
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors thumbnail-3
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors thumbnail-4
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors thumbnail-5
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors photo-1
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors photo-2
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors photo-3
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors photo-4
7214CTYNSULP4 Single Row Radial Load Angular Contact Ball Bearin For High Frequency Motors photo-5
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
7214CTYNSULP4
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 7214CTYNSULP4
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

Single Row 7212, 7214 Radial Load Angular Contact Ball Bearin For High Frequency Motors


Model Size 〆15º 〆25º Cage Material
Limit Speed Limit Speed
ID OD H Rated load amount
Rated load amount
Cr Cor Grease Oil Cr Cor Grease Oil
7212 60 110 22 55.8 56.2 11000 18000 53.0 53.5 10000 17000 Bakelite
7213 65 120 23 67.5 69.0 10000 17000 64.2 65.8 8500 15000 Bakelite
7214 70 125 24 70.2 74.6 9000 16000 66.6 71.7 8000 14000 Bakelite
7215 75 130 25 72.7 80.2 8500 15000 68.9 76.3 7500 13000 Bakelite


Specifications:

1) Model: Open, Z, ZZ, RZ, 2RZ, RS, 2RS

2) Quality level: reach the same level as the Japanese and European bearings

3) Tolerance level: ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5)

4) Noise Level: EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4

5) Application: home appliances, low noise and high speed electric motors; automotive components, pumps, machinery.


Feature of Angular contact ball bearings:

When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.


Applications:

These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.


Product Tags: 7214CTYNSULP4 , Angular Contact Bearings , Super Precision Spindle Bearings
