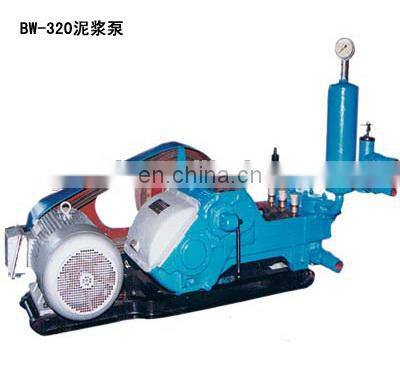

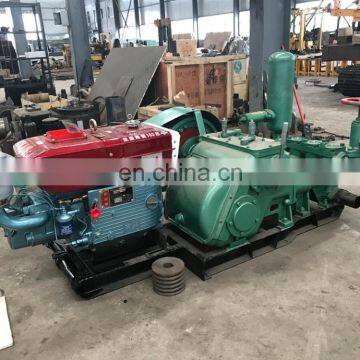

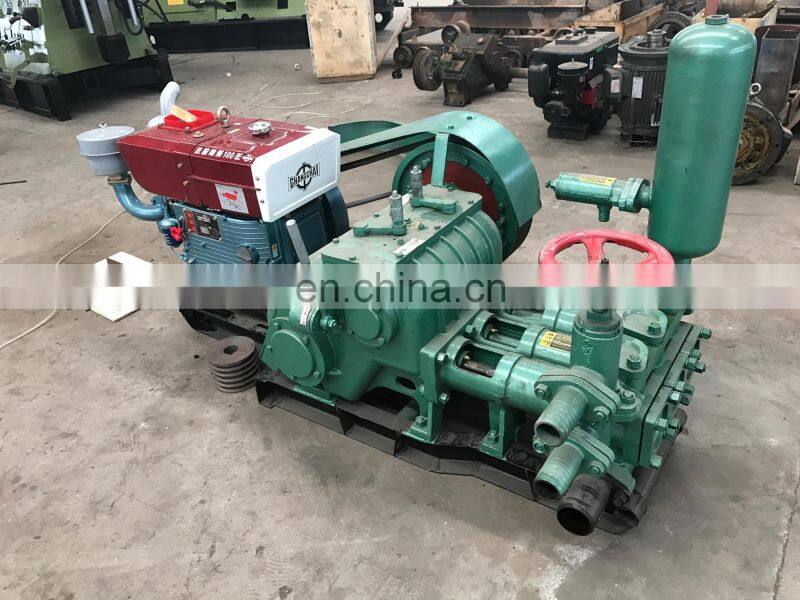

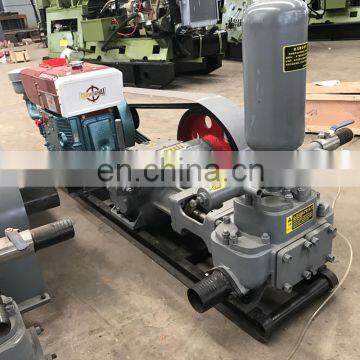

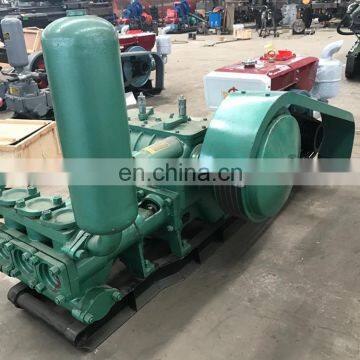

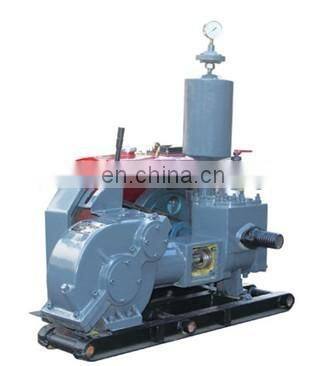

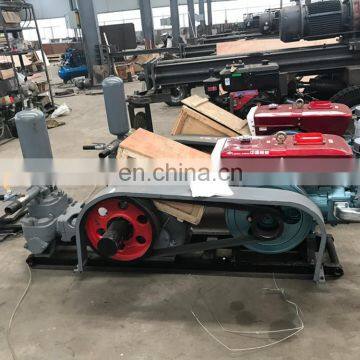

BW320 small sand suction pump machine portable
Type |
Horizontal three cylinder single action reciprocating plunger pump |
|||||||
Travel |
110 |
|||||||
Cylinder Diameter(mm) |
80 |
60 |
||||||
Pump Speed(min-1) |
214 |
153 |
109 |
78 |
214 |
153 |
109 |
78 |
Displacement(L/min) |
320 |
230 |
165 |
118 |
180 |
130 |
92 |
66 |
Pressure(MPa) |
4 |
5 |
6 |
8 |
6 |
8 |
9 |
10 |
Volumetric Efficiency(%) |
90 |
|||||||
Total Efficiency(%) |
78 |
|||||||
Power Needed(kw) |
30 |
|||||||
Large Belt Nodal Diameter(mm) |
φ480(C×5) φ480(C×5) |
|||||||
Speed Input(r/min) |
535 |
|||||||
Suction Height(m) |
2.5 |
|||||||
Suction Pipe Diameter(mm) |
φ76 |
|||||||
Discharging Pipe Diameter(mm) |
φ51 |
|||||||
Dimension(LxWxH)(mm) |
1280×855×720 |
|||||||
Single Pump(Without Engine and Air Chamber) | ||||||||
1905×1100×1200 | ||||||||
Entire Pump( Without Engine and Air Chamber) | ||||||||
Weight(kg) |
650 Single Pump(Without Engine and Air Chamber) |
|||||||
1000 Entire Pump( Without Engine and Air Chamber) | ||||||||
BW160/10 horizontal triplex reciprocating acting Mud pump
Name |
BW-160/10 |
|||
Type |
horizontal triplex reciprocating acting |
|||
Cylinder diameter |
70mm |
|||
Stroke |
70mm |
|||
Speed(r/min) |
200 |
132 |
83 |
55 |
Displacement(l/min) |
160 |
107 |
67 |
44 |
Pressure(Mpa) |
2.5 |
4 |
6.5 |
10 |
Input torque |
150N*m |
|||
output speed |
610r/min |
|||
Power(KW) |
11(electric motor) |
|||
Power(KW) |
14.7(diesel engine) |
|||
Suction pipe diameter |
51mm |
|||
Drain pipe diameter |
25mm |
|||
Weight(Kg) |
500(include electric motor) |
|||
560(include diesel engine) | ||||
Dimengsion |
1920×830×1000mm |
|||

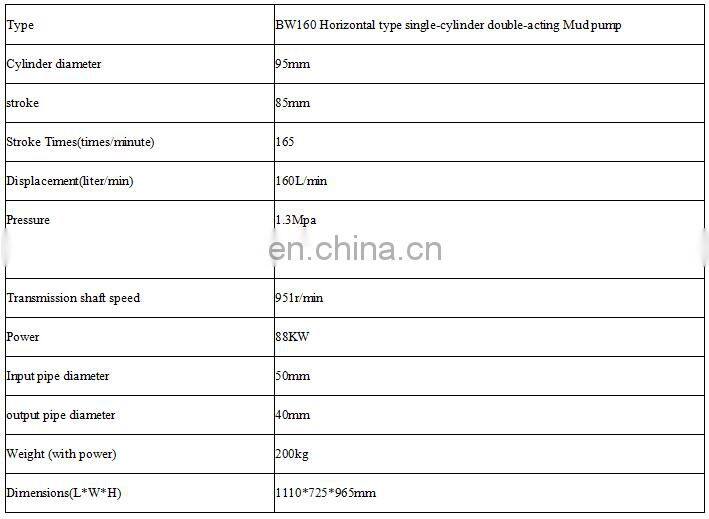

BW160 Horizontal type single-cylinder double-acting Mud pump

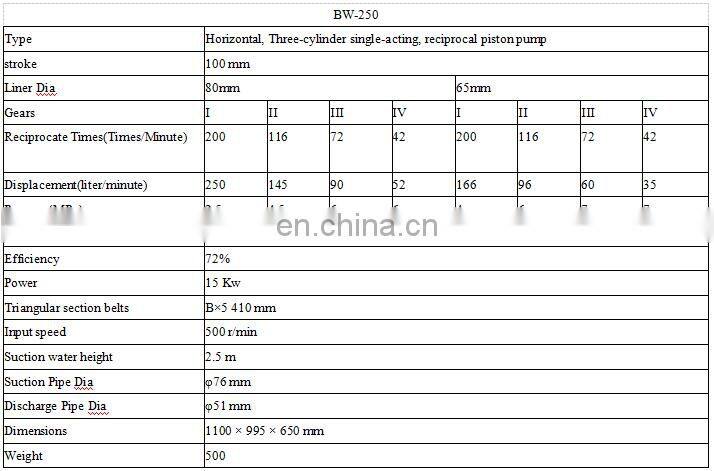

BW250 Horizontal, Three-cylinder single-acting, reciprocal piston pump
