Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig

Jinwang Machinery Equipment Co., Ltd.
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-1
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-2
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-3
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-4
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-5
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-6
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig thumbnail-7
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-1
Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-2

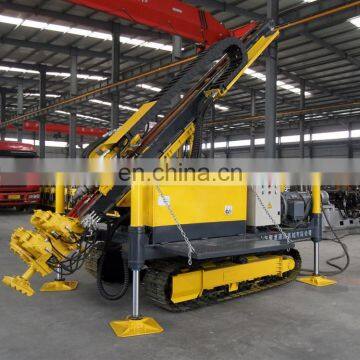

Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-3

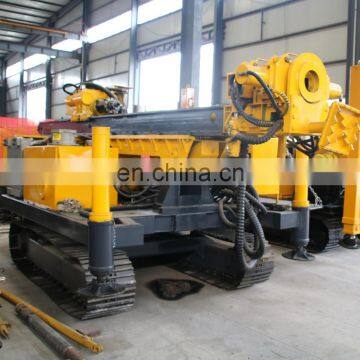

Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-4

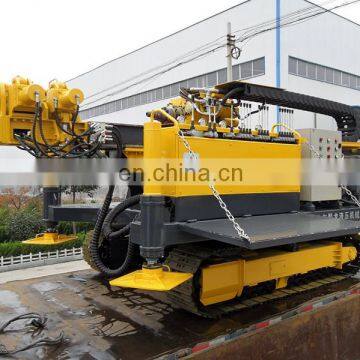

Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-5

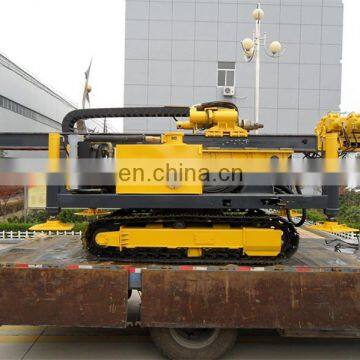

Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-6

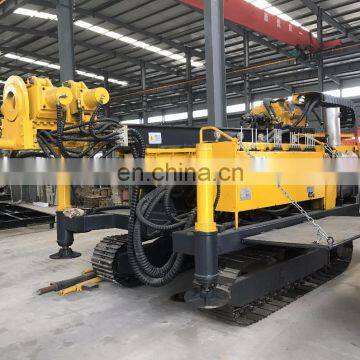

Hydraulic Crawler Mounted Anchor Machine / Anchoring Drilling Rig photo-7
US$ 10,500 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YT
Place of Origin:
Henan, China
Model Number:
YT150D
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao tianjin shanghai guanghzou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YT
Place of Origin Henan, China
Model Number YT150D
Type Rotary Drilling Rig
Certification SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 2 Years
Weight 9200kg
Dimension(L*W*H) 6.2m*2.1m*2m
Power Type Diesel
Voltage 380V
Condition New
Power(W) 117kw
Product Description

Product Application

Jet grounting, Urban foundation pit, Slop support,anchoring drilling project

SPECIFICATIONS FOR ANCHORING DRILL RIG
Model
YTL100
YTL150
YTL200
Hole diameter
100-210mm
150-250mm
150-250mm
Hole depth
100m
170m
220m
Pipe diameter(mm)
73/89/102/114
Drill angle
0-90 degree
Rotation
Speed(r/min)
16-105
10-170
40-170
Torque of power head(N.m)
4200
7500
11000
Stroke of slide frame(mm)
1800
3400
3400
Lifting capacity(KN)
65
70
80
Lifting speed(m/min)
0-5,7,23,30
0-5,7,23,30
0-14/16/18
Rotation pressure(KN)
33
36
40
Moving  type
Crawler
Diesel power(KW)
39
96
117
Electric Motor power(KW)
31.5
73.5
87.2
Machine Size(m)
3*1.8*1.5
5.4*2.1*2
6.2*2.1*2
Weight(T)
1.3
6.5
9.2

Main Features

1)Drilling up to 200m deep, diameter 150-250mm

2) Full hydraulic system. can work with air compressor or mud pump.

3) Drill pipe and casing pipe can be taken down automatically.

4) Big ratation torque:11000N.m

5)  The temerature the machine can work in is 0- 70 degree.

6) Can do 3-wing bit drilling, DTH hammer drilling, Casing drilling, Drill pipe/casing tube composite drilling ,sinble/bouble/triple jet grounting, fixed and swing jet grounting.

Machine pictures
Detailed Images

Machine Parts

Name: Diesel Engine

Brand: YT

Original: China

117KW

Main Features

Name: Mud pump
Brand: BW250
Original: YT
Flow: 250L/Min

Machine Parts

Name: Rod
Brand:YT
Original: 89mm*1.5m

Main Features

Name: DTH Hammer
Brand:YT
Original: China
6inch or 8inch

Crawler

Walking speed: 22 km/hour

Rotation

Speed(r/min)  40-170
Torque of power head(N.m) 11000
Stroke of slide frame(mm) 3400
Lifting capacity(KN)  80
Lifting speed(m/min)  0-14/16/18
Rotation pressure(KN)  40

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*Operating DVD, Mannual
*Quality Guarantee

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 service.
*2 years warranty

Packing & Delivery
Packaging
Size
20Feet container
Weight
15T



Packaging Details
Machine with all 200m accessory
Packaging
Size
20Feet container
Weight
15T



Packaging Details
Machine with all 200m accessory
