tractor borehole driller

FOB Price

USD $10,000 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao/Tianjin/Shanghai/Guangzhou/Wuxi
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YT	Place of Origin:	Henan, China	Model Number:	YT200A
Type:	Core Drilling Rig	Certification:	ISO9001-2000	After-sales Service Provided:	Engineers available to service machinery overseas
Warranty:	12 Months	Weight:	750kg	Dimension(LWH):	4mx1.7mx2.3m
Power Type:	Diesel	Voltage:	380V	Usage:	Water Well
Condition:	New	Power(W):	15KW

Product Description

Product Application

Drill for Water well, Geological exploration/investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.

SPECIFICATIONS FOR tractor borehole driller
Main parametr	Model	YT-130A	YT-180A	YT-200A
	Drill depth	130m	180m	220m
	Drill diameter	75-225mm	75-225mm	75-325mm
	Drill pipe size	55mm*4.2m
	Drill angle	90-75 degree
	Power	13.2kw	13.2kw	14.7kw
	Weight	2750kg	2800kg	3000kg
	Size.m	4x1.7x2.3
Spindle	Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Spindle	Stroke(mm)	450
Winch	Max pull capacity(kg)	2000	2100	2500
	pull speed(m/s)	0.41-1.64	0.35-2.23	0.12-0.95
	Rope diameter(mm)	9.3	9.3	12.5
	Rope capacity(m)	27	27	35
Drill mast	Height(m)	6.5
Drill mast	Rated Load(T)	18
Mud pump	Flow(L/Min)	160	160	160
	Max pressure(MPa)	1.3
	Times/min	165
	Inlet hose dia(mm)	51	51	51
	Outlet hose dia(mm)	32	32	38
Tractor	Rated power	18.3kw
Tractor	Rated speed	2200r/min

Main Features

1.Drills up to 250m deep, 75-300mm diameter , trailer mounted.
2. hydraulic system: Hydraulic mast, Hydraulic spindle.

3. BW160/BW250 Mud Pump.high pressure and big flow.

4.Rig is Skid mounted,can move back-and-forth on the base.

3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 200m accessory can be used upon arrival.

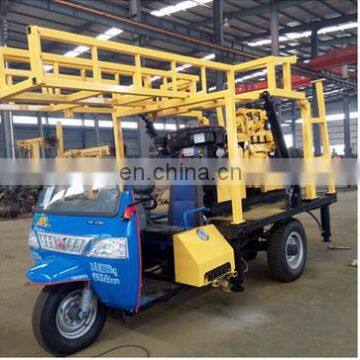

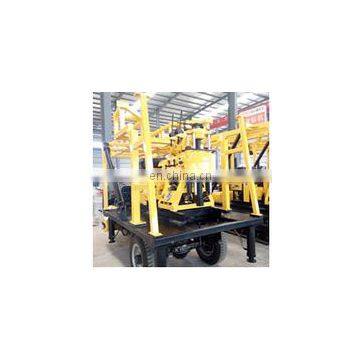

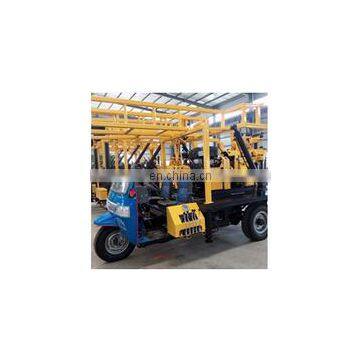

Machine pictures

Detailed Images

Machine Parts

Name: Diesel engine

Brand: changchai

Original: China

Domestic famous engines, strong driving force, low fuel consumption, 15KW

Main Features

Name: BW250 Mud pump
Brand: YT
Original:China
Flow: 250L/min

Max pressure: 2MPa

Times/min: 100

Inlet hose dia:51mm

Outlet hose dia: 38mm

Machine Parts

Name: Hydraulic mast
Brand: YT
Original:China
Automatic hydraulic mast, easily operated.

6.5m in height

18T loading capacity

Main Features

Name: Tractor mounted
Brand:YT
Original: China
Power: 18.3KW

Rated speed:2200r/min

Drill bits

Alloy bit: for sand, soil drilling
Diamond bit: rock, hard rock, quarry, marble , gold ground drilling
3 wing bit: Hole opening drilling

Drill rod/pipe

50mm /60mm diameter
4.2m length

Spindle

Spindle speed: 64/128/287/557r/min

450mm stroke

SPT TOOLS.

Packing & Delivery

Packaging
Size	4m (L) 1.7m (W) 2.3m(D)
Weight	2.7T
Packaging Details	Rig Nude loaded

Packaging
Size	251mm (L) 97mm (W) 170 (D)
Weight	1.2T
Packaging Details	The drilling pipe and drilling mast package is PVC pipe (Size: 251mm97mm170mm). Mast(Size: 262mm90mm40mm)

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*Operating DVD, Mannual

*Quality Guarantee

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 24/7 service.

*2 years warranty

200m, 600m,1400m core drill rig

91.8% Response Rate

Hydraulic DTH water well Drill rig

91.8% Response Rate

Anchoring Drill rig

91.8% Response Rate

600M Tractor core drill rig

91.8% Response Rate

600m truck mounted core rig

91.8% Response Rate

200m small drill rig

91.8% Response Rate

FAQ

1.All spare parts can be changed for free with in 12 months.

2.The machine are expected to be functioning 10years with ability of spare parts.

3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.

4.On-site training could be executed if this term is included in the contracts agreed.

5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
