5V 12V AC DC Switching Power Supply

Name: 5V 12V AC DC Switching Power Supply
Brand: BINWAY
SKU: 160736655
Availability: InStock

US$ 6 - 12 MOQ: 200 Pieces

Key Specifications

Brand Name:

BINWAY

Place of Origin:

China

Model Number:

BW30-2AC

Binway Group

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai, Shenzhen, Ningbo

Delivery Detail:

15 days

Brand Name BINWAY

Place of Origin China

Model Number BW30-2AC

Output Power 1 - 50W

Output Type Dual

Output Current 5Vdc/4A; 12Vdc/1A

Output Frequency 50-60Hz

Output Voltage 5Vdc/4A; 12Vdc/1A

Input Voltage Other, 100~240VAC

5V 12V AC DC Switching Power Supply

Features:

▪ Universal AC input / Full range

▪ No load consumption

▪ High efficiency, long life and high reliability

▪ Cooling by free air convection

▪ High operating temperature up to 70℃

▪ Protections : Short circuit / Overload / Over voltage

▪ 100% full load burn-in test

▪ Low profile

▪ 2 years warranty

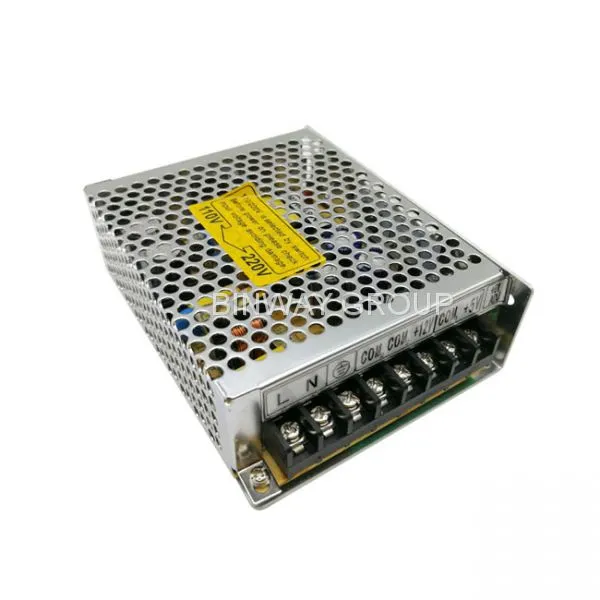

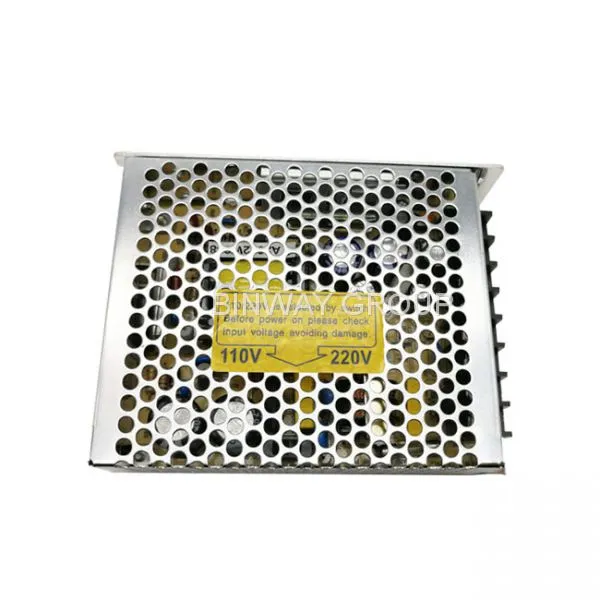

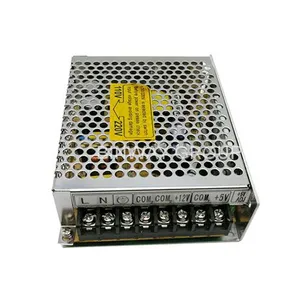

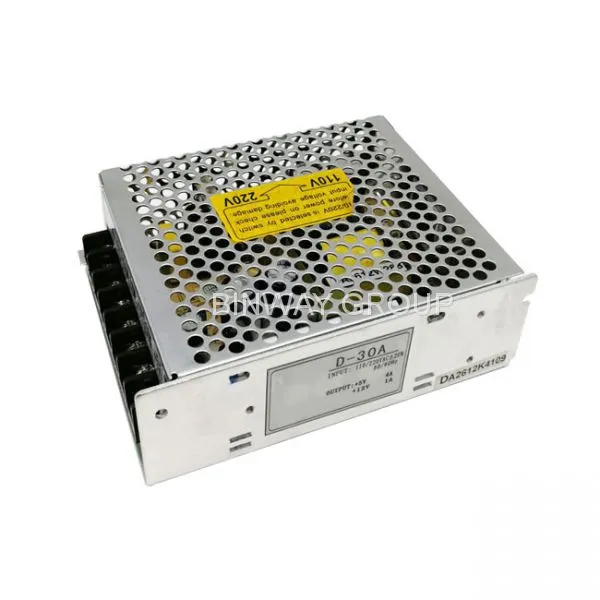

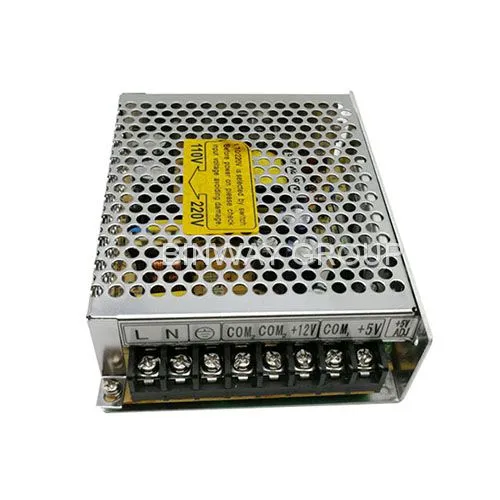

Images:

Specification:

Model		BW30-2AC
Output	DC Voltage	Output1: +5VDC	Output2: +12VDC
	Rated Current	Output1: 4A , 0~4A	Output2: 1A, 0~1A
	Voltage Adj. Range	±1% rated output voltage
	Rise Time	20ms
Input	Voltage Range	110/220VAC±20%
	Inrush Current(max.)	Cold start, 40 at 230VAC
Protection	Overload	Range	105%~135%
		Type	Constant current limiting, auto-recovery
	Over Voltage	115%~140%
Environment	Working Temperature	-20~+65℃( refer to output derating curve)
	Vibration	10-500Hz,,2G10min,/cycle, period for 60min,Each axes
Safety&EMC	Safety Standard	UL60950-1, TUV EN60950-1
	Withstand Voltage	I/P- O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P -FG: 0.5kVAC, 1 minute
	Isolation Resistance	Input and output internal:Input and GND,Output and GND/100MΩ
	EMC Standard	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024

Others	Dimension	120mm66mm34mm( LWH)
	Packing	In cartons, quantity shipping with cartons on wood pallet
	Weight	0.30Kgs
	Outside Protection	Enclosed frame
