Constant Voltage 24V 150W AC DC LED Power Driver
Description:
The BW150-1AC24 is a enclosed frame, convection cooled 150W power supply for LED lighting&display, automation control and industrial equipment. It is a universal design that accepts 85 to 264VAC input and generates up to 6.25A at 24 Volts. A high efficient and reliable power supply, overload, short circuit and over voltage protection with hiccup mode( recovering automatically after fault condition is removed).
Features:
▪ Universal AC input / Full range
▪ No load consumption
▪ High efficiency, long life and high reliability
▪ Cooling by free air convection
▪ High operating temperature up to 70℃
▪ Protections : Short circuit / Overload / Over voltage
▪ 100% full load burn-in test
▪ Low profile
▪ 2 years warranty

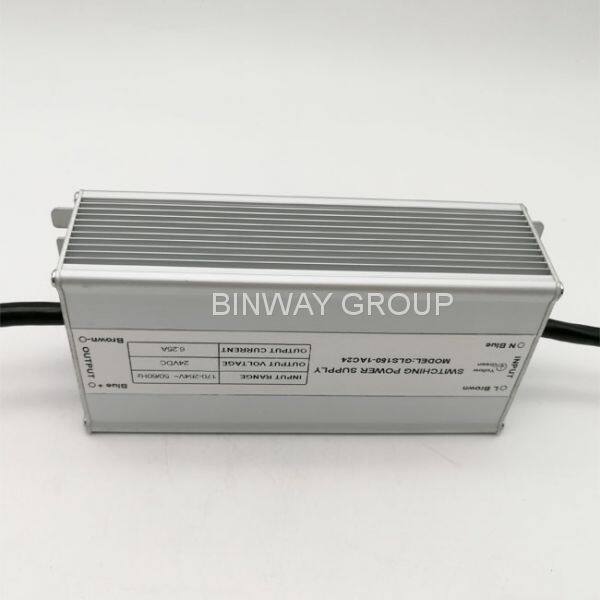

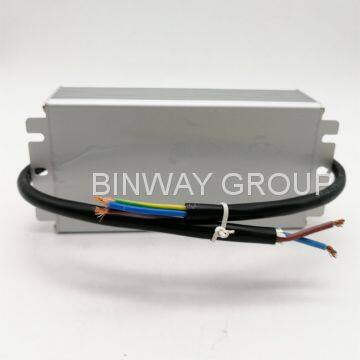

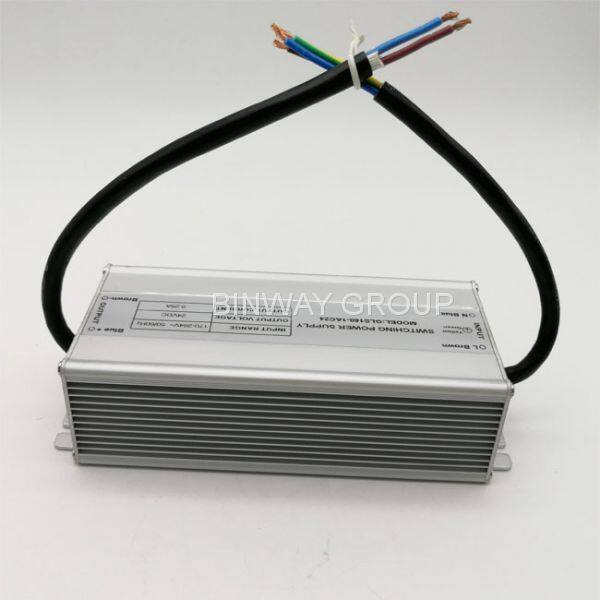

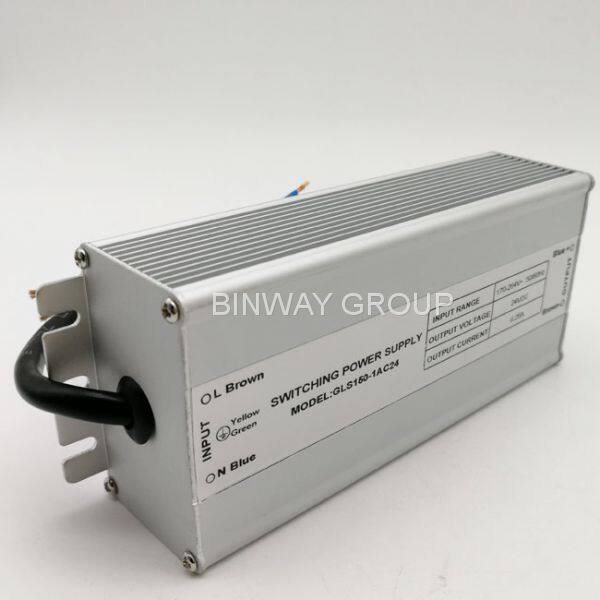

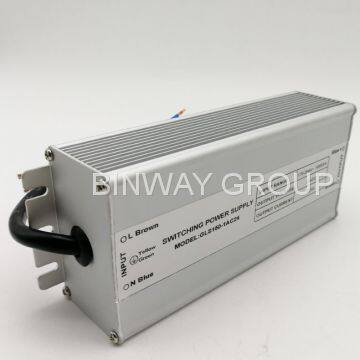

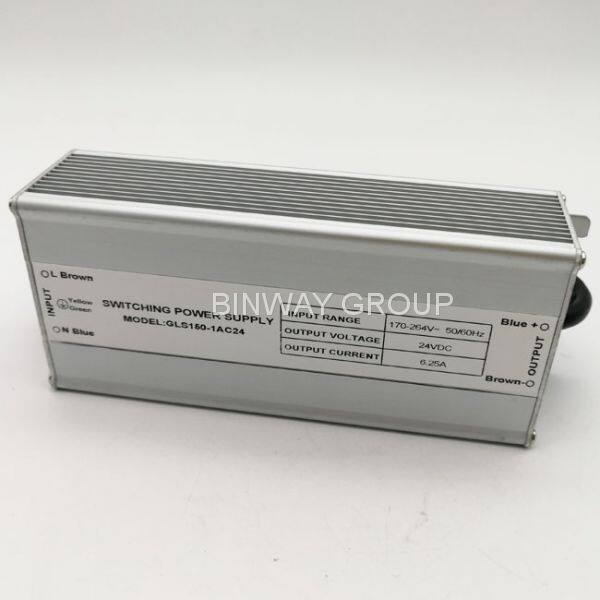

Images:
Specification:
Model |
BW150-1AC24 |
||
Output |
DC Voltage |
24VDC |
|
Rated Current |
6.25A , 0~6.25A |
||
Voltage Adj. Range |
±1% rated output voltage |
||
Rise Time |
20ms |
||
Input |
Voltage Range |
90~264VAC |
|
Inrush Current(max.) |
Cold start, 40A at 230VAC |
||
Protection |
Overload |
Range |
105%~135% |
Type |
Constant current limiting, auto-recovery |
||
Over Voltage |
115%~140% |
||
Environment |
Working Temperature |
-20~+65℃( refer to output derating curve) |
|
Vibration |
10-500Hz,,2G10min,/cycle, period for 60min,Each axes |
||
Safety&EMC |
Safety Standard |
UL60950-1, TUV EN60950-1 |
|
Withstand Voltage |
I/P- O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P -FG: 0.5kVAC, 1 minute |
||
Isolation Resistance |
Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ |
||
EMC Standard |
EN55022 class B, EN610+C3:D1700-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024 |
||
Others |
Dimension |
130mm*82mm*35mm( L*W*H) |
|
Packing |
In cartons, quantity shipping with cartons on wood pallet |
||
Weight |
0.50Kgs |
||
Outside Protection |
Aluminum case |
||
