Product Details
| Brand Name | GAIMC | Place of Origin | China | |
| Model Number | LXSG |
Product Description

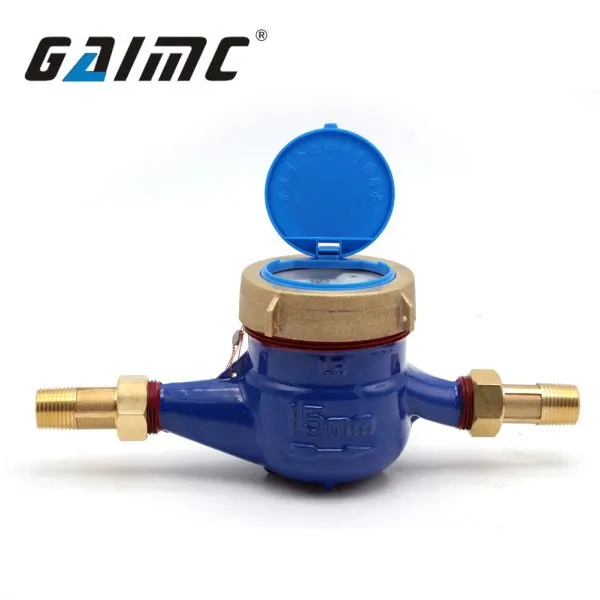

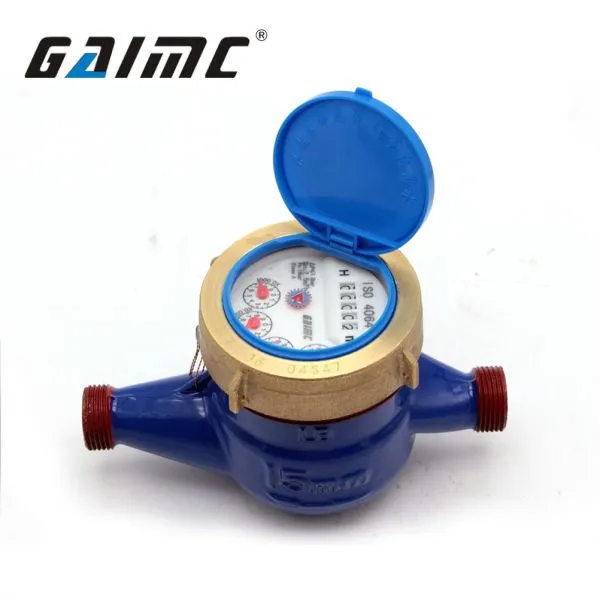

LXSG mechanical multijet electronic water meter price
Measuring the total volume of cold portable water passing through the pipeline,can be used for a remote reading transmission system as equipped with a built-in sensor.
Feature
Ø The water meter is magnetically coupled and has anti-magnetic interference function;
Ø Copper shell, generous appearance, intuitive reading, accurate measurement;
Ø The product complies with the national standard GB/T778.1~3-2007 (ISO4064-1-3:2005);
Ø Temperature class: T30 (cold water) Water temperature range is 0.3~30°C;
Ø Maximum allowable working pressure:1.0Mpa;
Type |
Size (mm) |
Q3/Q1 | Q4 Overload Flow | Q3 Permanent Flow | Q2 Transitional Flow | Q1 Min Flow | Min Reading | Max Reading |
m³/h | m³ | |||||||
LXSG-15 | 15 |
80
| 3.125 | 2.5 | 0.05 | 0.03125 | 0.00005 | 99,999 |
LXSG-20 | 20 | 5 | 4 | 0.08 | 0.05 | 0.00005 | 99,999 | |
LXSG-25 | 25 | 7.875 | 6.3 | 0.126 | 0.07875 | 0.00005 | 99,999 | |
LXSG-32 | 32 | 12.5 | 10 | 0.2 | 0.125 | 0.00005 | 99,999 | |
LXSG-40 | 40 | 20 | 16 | 0.32 | 0.2 | 0.00005 | 99,999 | |
Maximum permissible errors
Ø From Q1 to Q2:±5%
Ø From Q2 to Q4:±2%
Type | Size
| Length | Width | Height | Connecting Thread |
mm | |||||
LXSG-15 | 15 | 165 | 98 | 116 | G3/4B |
LXSG-20 | 20 | 90 | 98 | 117 | G1B |
LXSG-25 | 25 | 260 | 103.5 | 124 | G11/2B |
LXSG-32 | 32 | 260 | 103.5 | 124 | G11/2B |
LXSG-40 | 40 | 300 | 125 | 162 | G2B |
