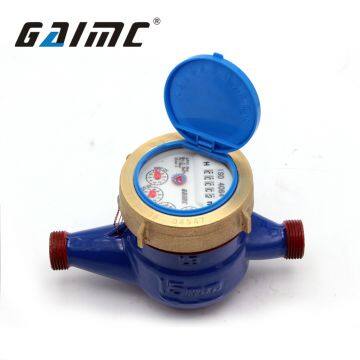

LXSG Residential cold hot water Multi Jet dry dial water meter
Measuring the total volume of cold portable water passing through the pipeline,can be used for a remote reading transmission system as equipped with a built-in sensor.
Feature
Ø The water meter is magnetically coupled and has anti-magnetic interference function;
Ø Copper shell, generous appearance, intuitive reading, accurate measurement;
Ø The product complies with the national standard GB/T778.1~3-2007 (ISO4064-1-3:2005);
Ø Temperature class: T30 (cold water) Water temperature range is 0.3~30°C;
Ø Maximum allowable working pressure:1.0Mpa;
|
Type |
Size (mm) |
Q3/Q1 |
Q4 Overload Flow |
Q3 Permanent Flow |
Q2 Transitional Flow |
Q1 Min Flow |
Min Reading |
Max Reading |
m³/h |
m³ |
|||||||
LXSG-15 |
15 |
80
|
3.125 |
2.5 |
0.05 |
0.03125 |
0.00005 |
99,999 |
LXSG-20 |
20 |
5 |
4 |
0.08 |
0.05 |
0.00005 |
99,999 |
|
LXSG-25 |
25 |
7.875 |
6.3 |
0.126 |
0.07875 |
0.00005 |
99,999 |
|
LXSG-32 |
32 |
12.5 |
10 |
0.2 |
0.125 |
0.00005 |
99,999 |
|
LXSG-40 |
40 |
20 |
16 |
0.32 |
0.2 |
0.00005 |
99,999 |
|
Maximum permissible errors
Ø From Q1 to Q2:±5%
Ø From Q2 to Q4:±2%
Type |
Size
|
Length |
Width |
Height |
Connecting Thread |
mm |
|||||
LXSG-15 |
15 |
165 |
98 |
116 |
G3/4B |
LXSG-20 |
20 |
90 |
98 |
117 |
G1B |
LXSG-25 |
25 |
260 |
103.5 |
124 |
G11/2B |
LXSG-32 |
32 |
260 |
103.5 |
124 |
G11/2B |
LXSG-40 |
40 |
300 |
125 |
162 |
G2B |
