Auto parts: pistons, piston rings, gears, shafts, bearings, clutches and lights;
Electronic components: resistors, capacitors, chips, printed circuit boards and keyboards;
Basic mechanical components: bearings, gears, standard parts and motors;
Instruments: panels, signs and precision instruments;
Hardware tools: knives, tools and measuring tools;
Daily necessities: crafts, zippers, leather clothing and sanitary ware.
· High precision and extremely fast speed.
· Marking depth is controllable optionally.
· The marking lines are clear, it can withstands heavy wearing.
· Free from maintenance, long working life, low consumption suitable for any working environment.
· The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate.
· Chinese and English software are optional. The software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by
· CORELDRAW, AUTOCAD, PHOTOSHOP and other software. Meanwhile, SHX and TTF can be imported into the software directly.
Model |

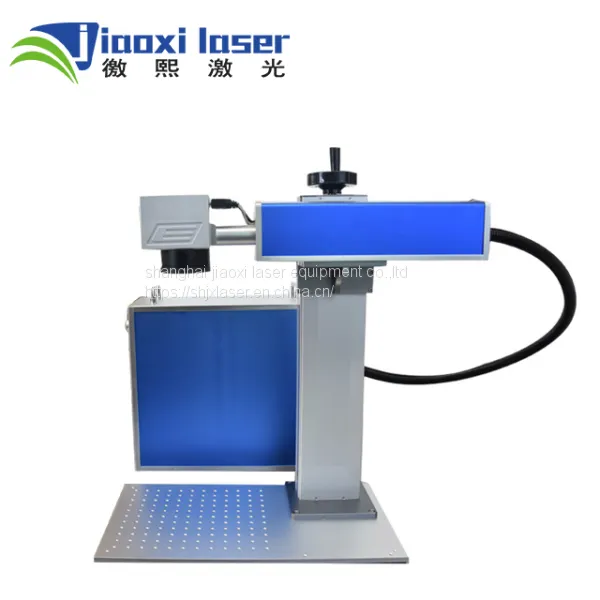

Fiber laser marking machine |
Laser wavelength |
1064nm |
Laser type |
Fiber |
Laser power |
20W 30W 50w |
Laser Q-switched frequency |
20Hz-200kHz |
Max. scanning precision |
8000mm/s |
Repeatable accuracy |
0.001mm |
Min. letter |
0.2mm |
Min line width |
0.01mm |
Marking area |
110 * 110mm, 200*200mm,300*300mm |
Cooling system |
Air cooling |
Working Temperature |
0°C-35°C |
Working humidity |
0-90%, with no condensation |
Power supply |
AC220V/50HZ (Optional 110V/60HZ) |
Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of Laser Marking Machine, Laser Cutting Machine and CNC ROUTER, Located in Shanghai
Baoshan industrial zone, it has a modern R & D center and manufacturing plant, since it was established, it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry.
Our company mainly products including laser marking machine, CO2 laser cutting machine and cnc router etc, widely used in metal and non-metal field, for example hardware, integrated circuit chips,
industrial bearings, variety of auto parts, hardware tools, wire and cable, mould, garment leather and craft gifts etc. in line with our advanced philosophy, excellent products, down to earth service, along with our strong R&D and production capacity, wide social cooperation as well as efforts of our every employee, some machines are exported to the Europe, America, Singapore, Vietnam, India and Bangladesh etc.
Manufacturer the world first-class laser equipments is the enternal pursuit of jiaoxi laser.
