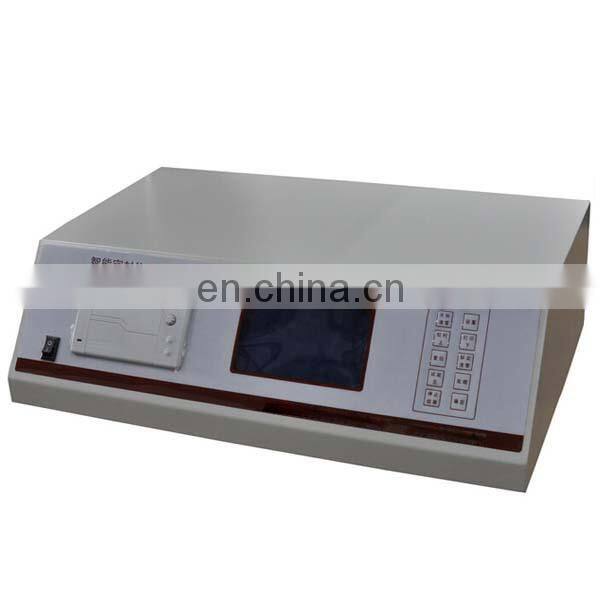

MFY-06 Intelligent Sealing Tester

 MFY-06 Intelligent Sealing tester

Experimental methods :
      Using the most common compressed air source , convert it to a vacuum , sealing on the plexiglass tank evacuated . Placed inside the tank or weak weak blue red liquid , can be easily observed from the external tank leak case blister . If the leak is not obvious situation . Until the end of experiment by observing whether there is a colored liquid blister blister leak into the situation to determine . Multiple groups at once tightness test specimen . Sealing materials for a variety of industries and rupture strength measurement , widely used in food , pharmaceuticals, automotive, rescue, transportation and other industries.

Applications:
Mineral water bottle beverage bottle spray hose valve bags triangular envelope composite cylindrical composite cups aseptic packaging arm clip airbags condom
1. quantify seal strength of various sealing, bonding process to form the flexible member , aseptic packages and other sealing and sealing quality, and the whole bag bursting pressure , seal leakage , creep test performance

2. Various anti-theft cap sealing performance and release stress test . Including Coke bottle, pure mineral water bottle , beverage bottle , etc.
3. quantify various hoses overall sealing performance , compressive strength , cap body joint strength , tripping strength , heat sealing sealing strength , bar bonding strength and other indicators
4. Various aerosol valve sealing performance tests. Including pesticides, mousse , gel water , medicinal sprays, paint and other self
5. various trilateral packets bagging , sealing strength measurement
6. All kinds of potato chips and composite cylinder cups cover the opening force test .

Technical features:
1. Large LCD test curve , PVC panel, user-friendly design
2. Professional computer software operating system to facilitate the users to connect a computer data storage , analysis and printing
3. Imported sensor system , test accuracy in the industry ahead , effectively guarantee the accuracy of test results
4. a machine with cover off , anti-theft caps , creep test , hose testing, creep rupture, aerosol valves, creep rupture seven separate experiments to the project , to meet different testing needs

5. apply the principles of positive pressure , swelling suppression, dual expansion of non- suppression test methods
6. equipped with micro-printer, fast printing results
7. Adoption of the exchange of different fixtures, conducted a variety of scalable pilot projects
Test principle:
By injecting a certain pressure to the sample gas , after a certain time pressure , the instrument automatically determines whether the value of the maximum pressure seal intact specimen or blasting .

Technical parameters:
Measuring range : 0 ~ 250kPa; 0 ~ 36.3 psi ( optional )
          0 ~ 1MPa; 0 ~ 145.2psi ( normal)
          0 ~ 1.6 MPa; 0 ~ 232.1 psi ( optional )
Accuracy : ± 1% error
Air Connection :D8mm polyurethane tube
Machine size : 480mm × 330 × 150mm ( LWH )
Weight : 8Kg
