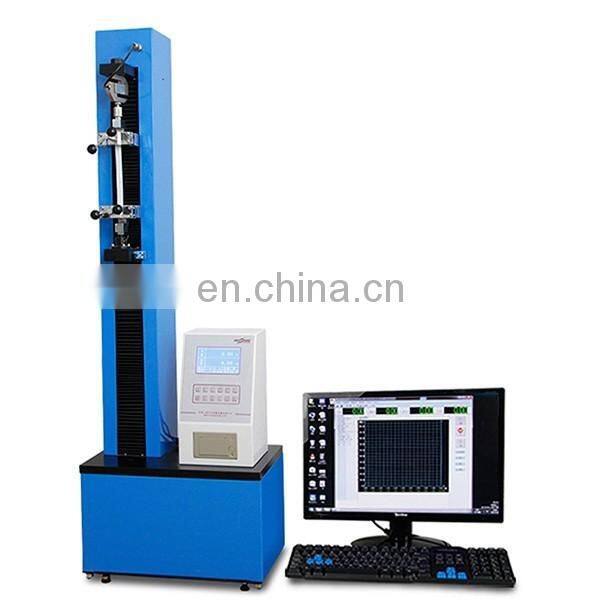

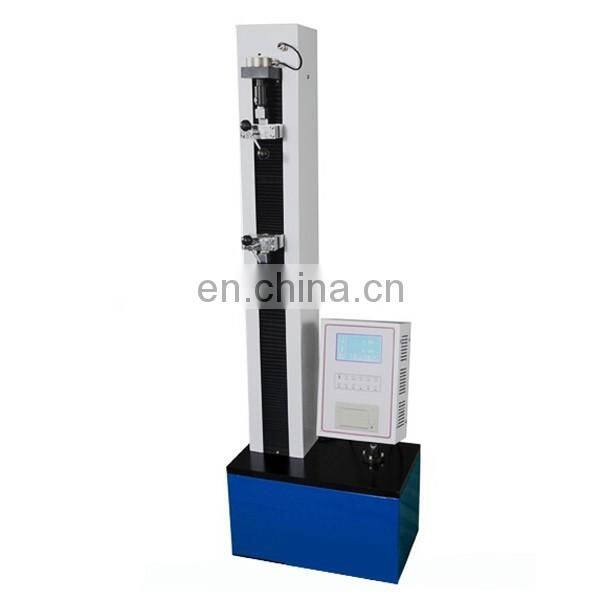

DLS-05 Electronic Tensile Testing Machine

DLS-05 electronic tensile testing machine

Brief introduction
For plastic films, laminated films , bags , foil , tape , stickers, medical patches , protective film, paper and other products of tensile strength, peel strength, deformation rate , tear strength , heat sealing strength and other performance tests. DLS-05 fully automatic control mode , the test speed 1-500mm / min infinitely variable , which can meet different test running speed. DLS-05 is a cost-effective multi-function testing machine , is widely used in packing plants, Adhesive products factory, quality control and other institutions.

Technical characteristics
1. an integrated tensile testing machine , peeling, tearing and other independent testing program , provides users with a variety of test item selection
2. Test speed CVT adjustment can be achieved within 1-500mm / min test
3. Microcomputer control, menu-driven interface , PVC operation panel , and a large LCD display
4. limit protection , overload protection, automatic back , as well as other smart down memory configuration to ensure the safe operation of the user's
5. Has the parameter settings , print, view , clear , calibration and many other features

Test Principle
The sample was clamped between two clamps of the chuck , relative motion between the grips , located in the movable chuck by the force sensor and the value of the displacement sensor built machines , collected during the test of the force and the displacement value change changes to calculate the tensile specimen , tear, strain rate and other performance indicators.

Main parameters
Specifications : 300N 500N 1000N ( optional )
Accuracy: 1
Test speed : 1-500mm / min stepless
Displacement accuracy : ± 2%
Test width : 50mm ( other fixtures can be customized )
Stroke : 550mm
Host Dimension : 450mm × 300mm × 1350mm ( length and breadth )
Weight : 78kg
Environmental Requirements
Ambient temperature : 23 ± 2 ℃
Relative humidity : up to 80% , non-condensing
Power supply : 220V 50Hz
