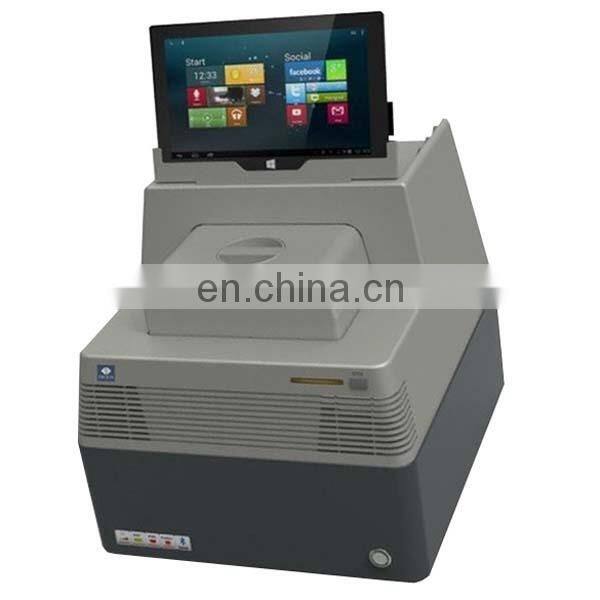

LineGene 9600 Plus Real time PCR Detection System
Introduction
Line-Gene 9600 Plus is the newest product of Real-Time PCR detection system family. Based on Line-Gene 9600’s large sample capacity, wide temperature range and multi-channels, Line-Gene 9600 Plus provides brand-new & humanized running and operation interface for better operating experience.
Line-Gene 9600 Plus adopts Ferrotec specially-made Peltier, advanced fiber optic technology, new global wide-range power supply, the unique patented block dissipation technology and bottom detection mode, which provides better heating/cooling rate, temperature accuracy, uniformity and stability. Line-Gene 9600 Plus has up to 96 sample capacity and fast speed of dual-color scanning, and the design of 5 channel detection also covers the whole fluorescence detection wavelength.
Newly-designed automatic hot-lid without manual operation ensures constant pressure for various tube heights. This auto hot-lid mode could be easily integrated into various automatic systems. Its Windows tablet computer and new touch screen brings excellent operating experience.
Newly-improved Line-Gene 9600 Plus Real-Time PCR detection system can satisfy various clients' requirement either for research or clinical use.
Technical Parameters
| Sample Capacity | 96×0.2ml(Bottom Transparent) | ||||
| Dynameics Range | 1~1010Copies | ||||
| Excitation Wavelength | 300-800nm | ||||
| Emission Wavelength | 500-800nm | ||||
| Detected Fluorescence | F1:FAMSYBR Green Ⅰ; F2:VICHEXTETJOECY3TAMRA; F3:ROXTEXAS-RADF4:CY5Quasar-670;F5:CY5.5Quasar-705; | ||||
| Block Temp.Range | 4 ~105 ℃ ( Minimun Increment : 0.1 ℃ ) SOAK Low Temp.Consercation Function | ||||
| Heating/Colling Rate | 4.0 ℃/s | ||||
| Temp.Control Accuracy | ≤±0.1 ℃ | ||||
| Temp.Flustuation | ≤±0.1 ℃ | ||||
| Temp.Uniformity | ≤±0.3 ℃ | ||||
| Temp.Control Mode | BLOCK/Tube Simulation Mode (Automatic Control based On Sample Volume ) | ||||
| Sample Volume Range | 5 ~100μl | ||||
| Gradient Temp.Range | 1 ~36 ℃ | ||||
| Hot-lid Temp.Range | 30 ~110 ℃ (Adjustable default 105 ℃ Automatic Hot-lid ) | ||||
| Fluorescence Detection Repeatability | 5% | ||||
| Scan Mode | Entire Plate or Designated Line | ||||
| Program | Max 20 Segments for Each Program Max 99 Cycles | ||||
| Operation Mode | Continuous | ||||
| Scan Period | 5.5s | ||||
| Feature Function | Absolute Quantification,Relative Quantification,SNP Analysis; Data Automatic Analysis; Melting Curve Genotyping; Gradient,HRM Multi-channel Crosstalk Correction; Background Correction; Automatic Gain; Customized Parameters; | ||||
| Operation System | Microsoft : Windows XP/Windows vista/Windows 7/Windows 8 Software : Excel2000/2002/2003/2007/2012 | ||||
| PC Configuration | Memory:512M Hard Disk:10GB CPU:Pentium® 4 Virtual Memory:≥1000MB | ||||
| Power Supply | 100-240V ~ 50/60Hz 600W | ||||
| Dimension ( L×W×H ) | 410mm×386mm×352mm | ||||
| Socket | USB Adapter Bluetooth Adapter | ||||
| Authentication | Ferrotec Pelitier / CE/Met / RoHS2 / PICC product quality liability insurance | ||||
| Tablet | Microsoft Surface 2 pro | ||||
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials,full producing &processing equipments,strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA,Europe and South Africa and got good feedback on Alibaba.
We firmly believe that science and technology is no boundaries.
Our mission is to make every effort to contribute to all humanity.
