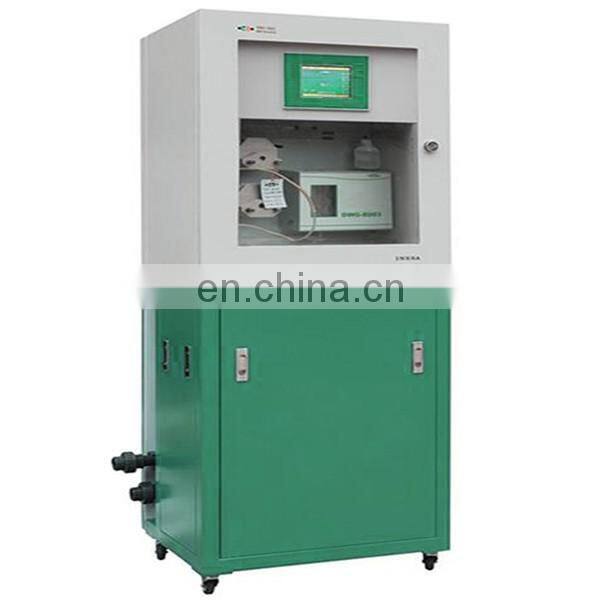

DWG-8003A type online chlorine ion monitor

Features:

1. The alarm with adjustable upper and lower limits

2. Automatic control measurement, calibration and cleaning process

3. The sampling pump sampling period can be arbitrary set (three controllable power supply)

4. Adopt touch screen display, Chinese operation interface, convenient operation, less maintenance workload

5. With isolation (4 ~ 20 mA DC output signal, the output of the corresponding the F - concentration limit and output limit

6. With RS - 232 or RS - 485 communication interface

Technical indicators

Measuring range: 0.05 mg/L ~ 1000 mg/L

Continuous measurement time interval: 1 h ~ 12 h

Limit of error of indication: plus or minus 10%

Repeatability: the relative standard deviation is not greater than 3%

Stability: 10% or less / 4 h

Response time (T90) : 5 min or less

Sampling pump requirements: 5 ~ 10) m3 / h; Bar (0.2 ~ 0.4)

The environment temperature (0 ~ 40 ℃);

Relative humidity: no more than 80%;

Power supply: 220 v, 50 hz;

Overall dimensions (length x width x height) : 600 * 450 * 1607 mm

50 kg weight:
