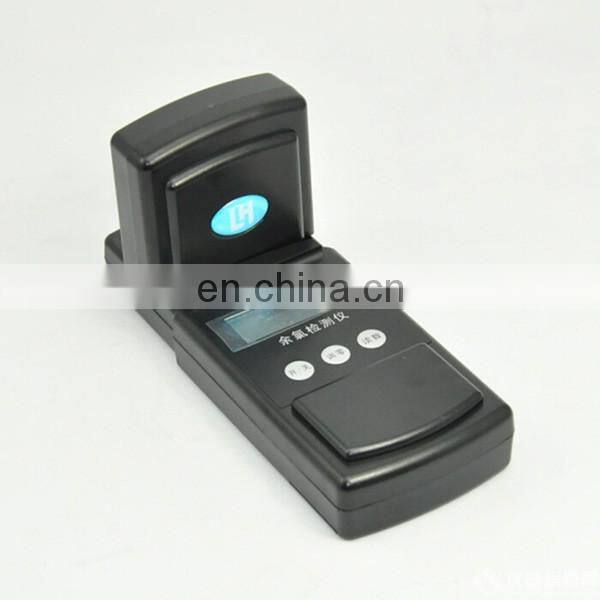

LH-C01 Chlorine Sodium Hypochlorite Detector

LH-C01 colorimeter chlorine sodium hypochlorite detector

Introduction

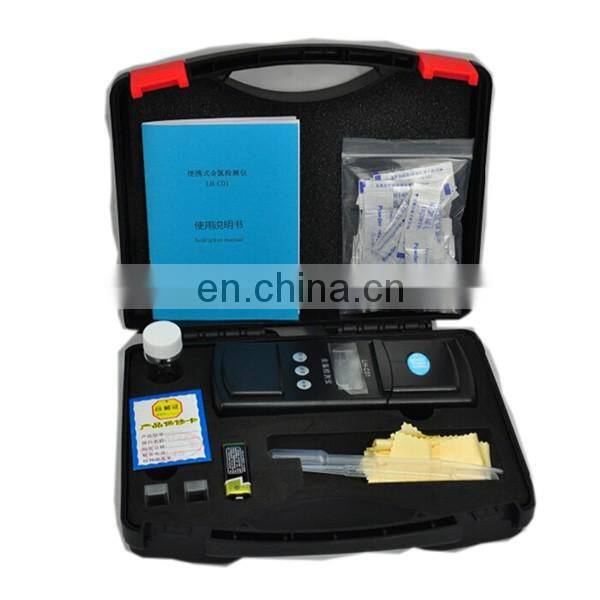

Portable colorimeter is used for the colorimetric determination of single wavelength.This colorimeter is specially used for determination of water samples of residual chlorine and total chlorine concentration, the concentration range of 0 ~ 3.00 mg/L.LCD screen to mg/L to directly show residual chlorine or total chlorine concentration.This instrument adopts the section 9 v batteries, due to the instrument software set in the power saving mode, so the battery can be used more than 40 hours.Measurement process finished, please press the "on/off" button, switch off the electricity.Instrument equipped with two special dish, and they are available for determination of residual chlorine and 100 times 100 times the total chlorine determination of two kinds of reagents, section 9 v battery, a handbook of instrumentation, a piece of rag, two special dish, and a sample bottle, straws, both in the plastic bins.

Features
1. No moving parts, high sensitivity (determination of lower limit of 0.05 mg/L);
2. The dynamic linear range wide (0.05 ~ 3.00 mg/L);
3. The less sample and reagent consumption, fast analysis speed, measuring a sample only 2 minutes).
4. The pulse power supply, low power consumption (section 9 v battery can be used more than 40 hours);
5. Small volume, light weight, convenient operation, the machine weighs 200 g)

Technical Parameter

1 Measuring range: 0.00 ~ 3.00mg / L

2 Source: Silicon LED

3 Wavelength: 520 ~ 522nm

4 Accuracy: ± 0.05mg / L (measurement value <1.00 mg / L)

           ± 0.10mg / L (measurement value> 1.00 mg / L)

5 Methods: GB DPD method, chlorine or total chlorine reagent DPD, the sample solution was red.

6 Environment: Temperature 0 ~ 40 ℃, relative humidity 0 ~ 90% (non-condensing)

7 Battery life: 1 × 9V, more than 40 hours.

8 Shutdown: exhausted than after colorimeter, press the "on / off" shutdown.

9 Size: 170 × 70 × 30mm

10 Weight: 200g (with battery)

11 Battery Installation The bipolar battery according to tight ends and battery cap and placed in the battery compartment, battery cover can.
