Brief introduction

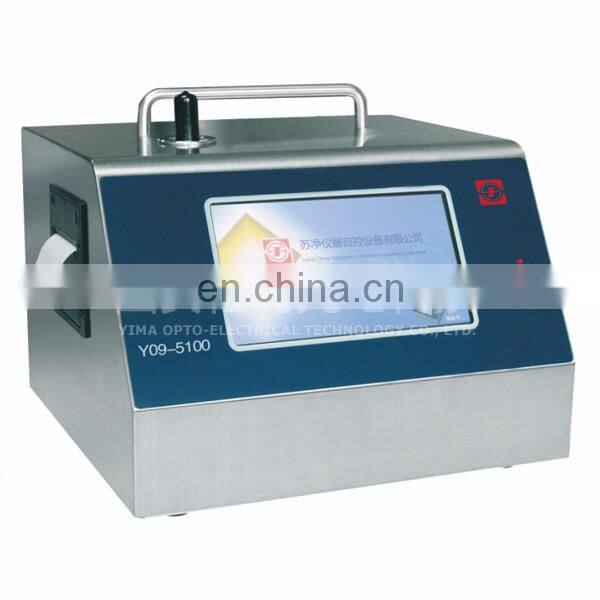

Y09-5100 laser dust particle counter (100L/min) is used to measure the size and number of dust particles in the air of the clean environment, and can directly detect the cleanliness level for a Class A, B grade clean environment. Y09-5100 laser dust particle counter uses a semiconductor laser light source, a large touch screen display, small size, light weight, high detection accuracy, functional operation is simple and clear, microprocessor control, can store, print measurement results, testing clean environment is very convenient. In addition, the storage data can be downloaded by computer software. Products are widely used in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and other departments
Features
1, 100 liters / minute of the sample volume.
2, AC and dc.
3, touch screen control operation.
4. The particle size of the six channels is shown to show the particle concentration (/m3).
5, automatic UCL calculation (for the 2010 Edition GMP, 1998 edition GMP, ISO14644, etc.).
Technical parameter
Dimension |
WxHxD 268*192*292 mm |
Display |
Touch screen LCD |
Weight |
7.5 Kg |
Max.Consumption |
80W |
Power Source |
DC16.8V Built-in Lithium Battery |
Size Channels |
0.5,1,3,5,10,25μm |
Calculation |
95%UCL Calculation,can directly show the particle concentration(prticles /m3,prticles /cubic foot) |
Flow Rate |
100L/min Imported Pump |
Sample Time |
0~999999s Selectable |
Zero Count |
≤10min |
Location Labels |
0~9999 |
Printer |
Built-in Thermal Printer |
Alarm |
ISO/ User Settings(Class) |
Date Storage |
20000 Samples/300Samples of UCL(With PC Software) |
Date Output |
USB Port |
Light Source |
semiconductor laser(30000 hours mean time between failures) |
Maximum Rated Particle Concentration |
35000 prticles/L |
Operating Time |
3 hours |
Environmental |
Temperature:10~35℃ Humidity:20%~75%RH Atmosphere Pressure:86~106Kpa |
