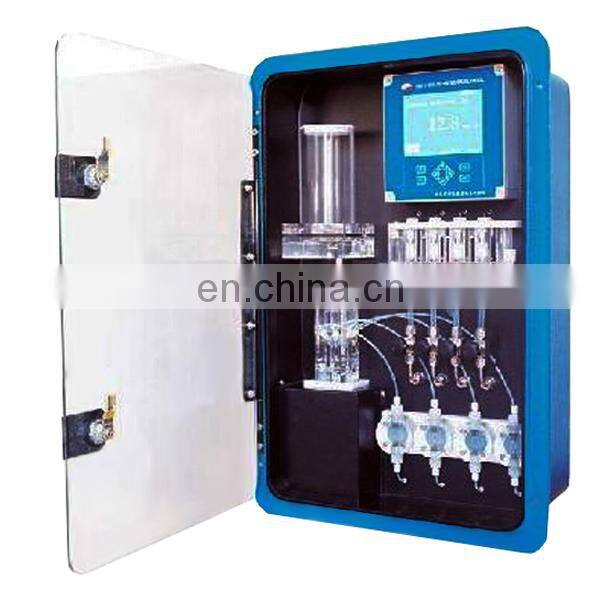

HK-108W Type Phosphate Monitor

 Feature :
    Advanced embedded microcontroller technology

Compact structure, disc installation, aluminum frame, beautiful and strong, anti - interference ability

Large screen dot matrix liquid crystal display, the content is direct and rich, can realize single and multi - channel free switching

The use of diaphragm metering pump, acid and alkali resistance, high measuring accuracy, maintenance free

 Imported 405nm monochromatic cold light source, long service life, stable, reliable

Using blank compensation technology, unique to effectively solve the drift problem, improve the measurement accuracy

Programmable multi-channel selection design,

not only to measure up to 6 channels, and can change the measurement time (4 ~ 60Min) according to the need to effectively save the reagent

 Has a large capacity data storage, historical history curve query function

Technical parameters :
 display :   320×240dot matrix LCD menu, Chinese or English

Measure range :   (0~20)mg/L
    Measurement period:   (4~60mins)setting by your requirements
    Basic error:   ±2%F.S
   repeatability:   1%
   stability:   baseline drift the use of blank calibration, no baseline drift


                     Chemical drift:Depending on the stability of the reagent

Sample condition:

   Flow volume:(150~350)mL/min
                  temperature :(5~50)℃
                  pressure:(14~140)kPa
               Allows water solid components: not more than 5 microns (rubber materials are not allowed)

    Environment temperature :   (5~45)℃
    environment humility :   Not more than 90%RH (condensed)

    Reagent type:   1 type
    Reagent consumption:   3 L /30 days (10 min sampling),depends on the sampling period
    Isolated output(0~10)mA  or(0~20)mA or(4~20)mA(Isolated output, each channel one)
    power supply:   AC(220±22)V, frequency(50±1)Hz
   power :   150W
    size :   450mm×690mm×215mm
    hole size :   645mm×410mm
    weight :   22kg
    alarm :   sample breaking alarm,Upper limit alarm,Lower limit alarm (Channel independent output)
