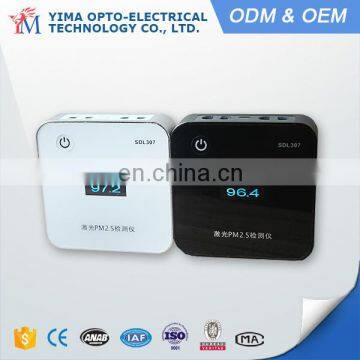

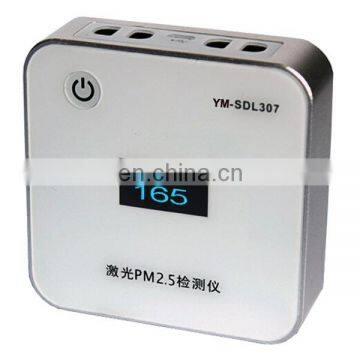

YM-SDL307 Mini Laser PM2.5 Detector PM10 monitor
Machine size:73*20*73 mm
Package size:200*150*60mm
weight
machine weight: 0.12 kg
total weight: 0.42 kg
power supply
input voltage: 5V
battery capacity: 1500mAh
power: 0.5W
charging current: 0.5A
charging time: 2.5 hours
battery working time:30 hours
measurement parameter
Measurement principle: laser measurement
PM2.5 detect range:0-999.9 μg/m3 PM2.5 resolution: 0.1 μg/m3 PM10 detect range:0-999.9 μg/m3 PM10 resolution: 0.1 μg/m3 Detect particle mimimum diameter:0.3 μm environment working environment:5—45oC store environment:-20—70oC |
Product working principle
1.YM-SDL307 laser PM2.5 detector using laser detection principle to work: produced a dedicated bunch specific laser through module laser, when particles pass, the signal will be super sensitive digital circuit module detected signal data through intelligent recognition analysis to obtain particle counting and particle size, according to professional calibration technology is the particle size distribution and mass concentration conversion formula, and ultimately get the official unit with uniform concentration;
2.YM-SDL307 laser PM2.5 detector usingindependent laser sensor,built-in fan, high sensitivity, fast response, stable performance, long life, can be used continuously.
Product performance
l The latest technology: using the most accurate laser PM2.5 testing technology, responsive, accurate data;
l Real-time monitoring: automatically refresh the data every second, all-weather monitoring of air quality
l real-time display PM2.5 and PM10 concentrations, particle concentration curve;
l LCD numerical, simple and intuitive;
l Compact and convenient: a small footprint, easy to carry, easy to operate;
l Fast response: using an independent laser sensor, built-in fan, read data fast, stable performance;
l Storage features: recently turned 24 hours of data can be stored;
l Data interface: You can transfer data via USB to the computer for the curve display, real-time rendering PM2.5
l Low power consumption: long battery life, 30 hours of continuous use.
A machine: real-time display PM2.5 and PM10 concentrations, particle concentration curve;
LCD: LCD numerical, simple and intuitive;
Compact and convenient: a small footprint, easy to carry, easy to operate;
Fast response: using an independent laser sensor, built-in fan, read data fast, stable performance;
Storage features: recently turned 24 hours of data can be stored;
Data interface: You can transfer data via USB to the computer for the curve display, real-time rendering PM2.5
Dear customer : We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history. Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing,bioscience,medical apparatus and instruments,internet technology and some frontier science. Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials, full producing &processing equipments,strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba. We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance! |
1. How about the package ? Is it safe during the delivery ?
All analyzers is packed by standard strong wooden carton with foam inside.
It is safe when shipping.
2. What is the delivery way ? How many days will the machine arrive us ?
We will ship the particle size analyzer by DHL,FedEx, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3-7 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technical support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our particle size analyzer is designed to use easily, computer control. Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.
We will provide the English user manual for free , and the operation video is available.
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
6. What is the payment way ?
We accept the payment terms: Bank transfer, Western union, Money gram, Paypal, etc.
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
