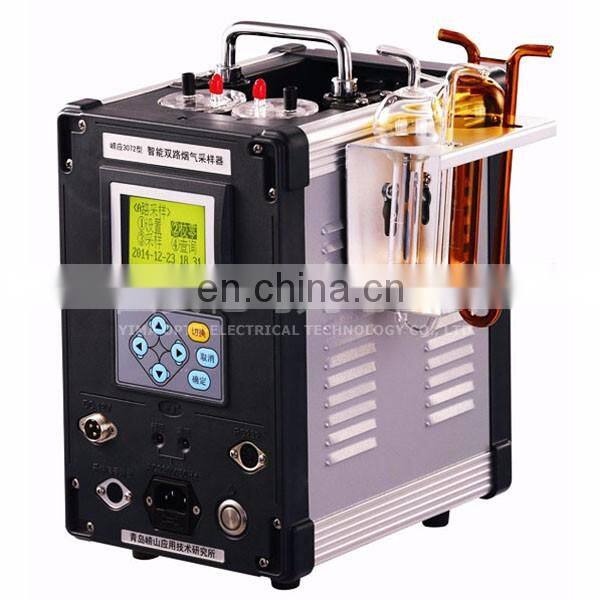

EA089 Intelligent Dual Channel Flue Gas Sampler

Brief introduction:

The instrument is specially used in stationary sources sampling instrument of gaseous pollutants. Design USES embedded software control platform, dual channel mode, with computers, sensors and new materials in the areas of high and new technology, the instrument has small, portable, reliable performance and stable flow accurately, long service life, etc. Can be used for all kinds of boilers, the flue, stationary sources such as industrial furnaces and gaseous emissions of pollutants concentration in the determination of the total, and automatically detect meter before parameters such as pressure, temperature, atmospheric pressure, temperature, and automatic calculation of sample volume.

Features:

1. The subwoofer brushless sampling pump, load capacity, long life, can guarantee the reliable operation of the long time

2. Small volume, light weight, simple interface, easy to carry

3. High precision electronic flowmeter control, real-time monitoring temperature gauge, pressure gauge, automatically adjust the flow

4. The temperature compensation, improves the sensor measurement accuracy

5. The two levels of high efficiency dust filtering design, sampling tube front end use high-quality titanium strainer pipe, host with teflon filter dust filtering

6. Absorption bottles hang buy to heat the sampling gun directly, shorten the length of pipeline connection, reduce the loss of adsorption

7. Dual channel color to distinguish the gas path, easy connection to use

8. Large capacity and high efficient breath dryer, variable diameter gas path connecting pipe design, high efficiency in addition to water, try to avoid fluid breath

9. Multiple sampling mode, dual sampling flow, start time, sampling time can be controlled

10. When the sample fails, instruments and automatic protection function

11. Automatically sampling volume, according to the atmospheric pressure, temperature, automatic conversion of sampling volume

12. Power outages in the process of sampling, automatic running sampling data collecting and preserving memories, the sampling with the call automatically restore power failure

Technical parameters:

Dual sampling flow: constant current L/min (0.2 ~ 2.0)

Sampling time: 1 ~ 99 hours 59 minutes

Temperature before: - 30 ~ 99 ℃

Before pressure: kPa (25 ~ 0)

When negative pressure air tightness: system 13 kpa

Extraction ability: when the system pressure 20 kpa

Heat insulation device: (120 ~ 150 ℃) plus or minus 10%

Dryer: volume 50 cubic cm or more

Mean time between failures (MTBF) : 1000 hours or more

Maximum sampling volume: 0.01 L

Host appearance size: (180 * 250 * 180) mm

Instrument noise: 65 db (A) or less

The weight: about 5 kg

Working power supply: AC220V plus or minus 10%, 50 hz
