Home > Products > Environment monitoring instruments > HR-86 CO2 Indoor Carbon Dioxide Detector

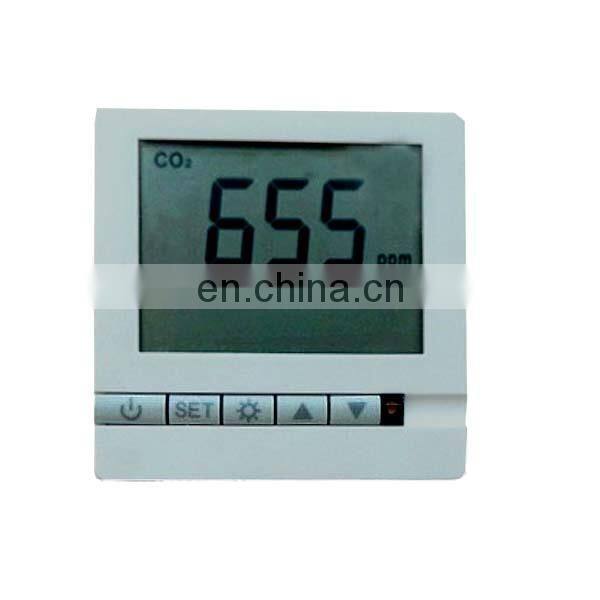

HR-86 CO2 Indoor Carbon Dioxide Detector
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | MDDF | Place of Origin | Shaanxi, China | |
| Model Number | HR-86CO2 |
Product Description
Brief introduction
HR-86CO2 carbon dioxide detector can be real-time detection of carbon dioxide gas concentrations in indoor air , when carbon dioxide gas concentration reaches the preset alarm value , the light changes from green to red and blinks tips, while the corresponding relay is closed , to open the ventilation equipment .
Technical Specifications
Power supply | 12V-24V DC | Minimum 12V, maximum 24V DC |
Output
| 2 relay outputs , capacity 220V 2A (24V 2A); or 4-20MA analog output . | Alarm defaults to 1200 ppm and 1800 ppm |
Power
| Maximum 3.0W ( instantaneous ) , the average 0.9W |
|
Detection of gas | Indoor air dioxide (CO2) gas |
|
Sensor detection principle | The principle of non-dispersive infrared NDIR |
|
Detection range | 0-2000ppm; 0-3000ppm; 0-5000ppm |
|
Detection method | Diffusion |
|
Working conditions | 0-50 °C; 0-95% RH non-condensing
|
|
Storage conditions | -10-70 °C; 0-95% RH non-condensing
|
|
Detection accuracy | ± 30ppm +3% FS (25 °C, standard atmospheric pressure ) |
|
Warm-up time
| 1 minute ( normal use ) |
|
Response Time | T90 <90s |
|
Calibration | Without calibration , automatic compensation | You can also manually calibrate |
Sensor Life | Expected 10 years |
|
Department shape size | 86×86×26mm |
|
Weight | 150 g |
|
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
