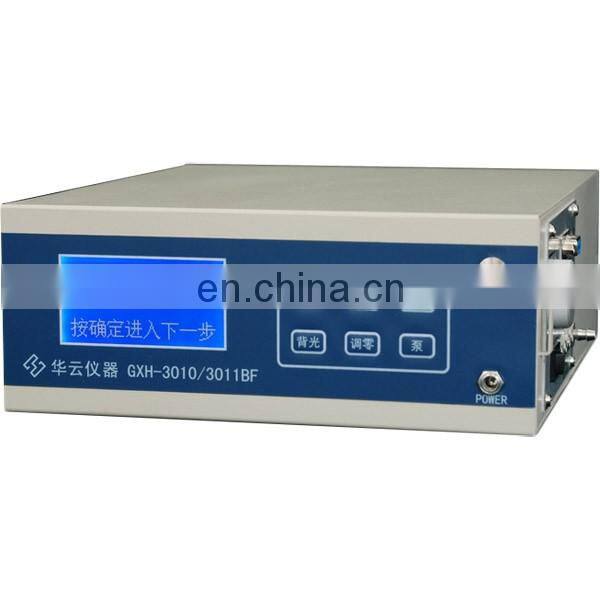

GXH-3010 Portable infrared CO/CO2 analyzer

GXH-3010 Portable infrared CO/CO2 analyzer

Introduction

The instrument has a built-in zero filter , six -way valve to switch between zero and measurement , simple and flexible

This instrument uses a large-screen LCD multi-function menu settings , full - range linear output

The instrument can automatically zero , can be displayed mg/m3 can be stored measurement data ; with RS232 interface and dedicated software , real-time monitoring and data transmission

The instrument can customize  the O2 measurement function and the temperature and humidity measurement function

Technical parameter

1 Measuring principle:  NDIR
2 Sampling : Continuous  pump suction

3 Standard range : 0 ~ 50.0 × 10 - 6 CO ; 0 ~ 0.500 % CO2 ( can be customized for the range from 0 to 100.0% )
4 Resolution : 0.1 × 10 - 6CO ; 0.001 % of CO2
5 Linearity : ≤ ± 2 % F . S-
6 Repeatability : ≤ 1 % F .S-

7 Zero drift : ≤ ± 2% of F S/4h
8 Span drift : ≤ ± 2% F.S/4h ,
9 Output Signal : RS232 interface with a dedicated software
10 Storage : ≤ 5000 set of measurement data
11 Display functions: CO :10 -6 mg/m3 conversion ; CO2 :% mg/m3 conversion
start-up time : ≤ 30min
12 Response time : CO ≤ 30S ; of CO2 ≤ 15S

13 Exhaust flow: ≤ 1.5L/min
14 Standard configuration: host , samplers , strap , rechargeable battery , charger, small screwdriver , a floppy disk , connection cables, technical documentation, aluminum boxes
15 Power supply: AC and DC battery 220VAC or machine
16 Dimensions : 270mm × 230mm × 90mm
17 Weight : ≤ 3.5kg

Dear customer,

We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .

Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.

Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.

If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba

We firmly believe that science and technology is no boundaries

Our mission is to make every effort to contribute to all humanity.
