EA004 Portable Automotive Exhaust Gas Analyzer(4 Gas Analyzer) Petrol and Diesel Exhaust Gas Analyzer

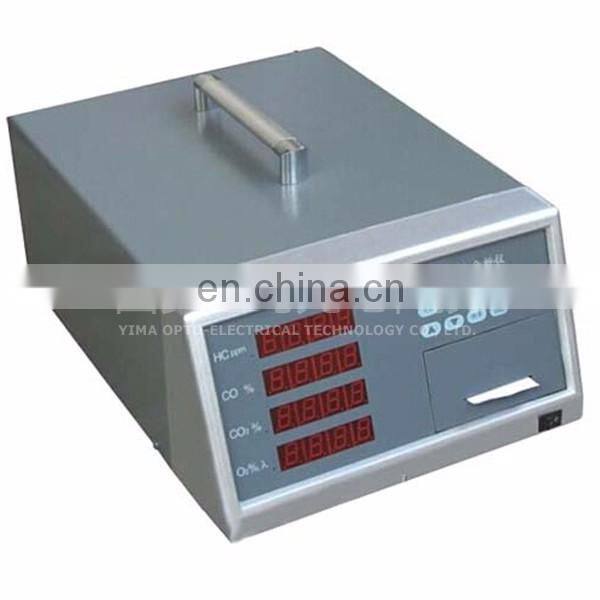

HPC401 portable automotive exhaust gas analyzer(4 gas analyzer)

 Introduction

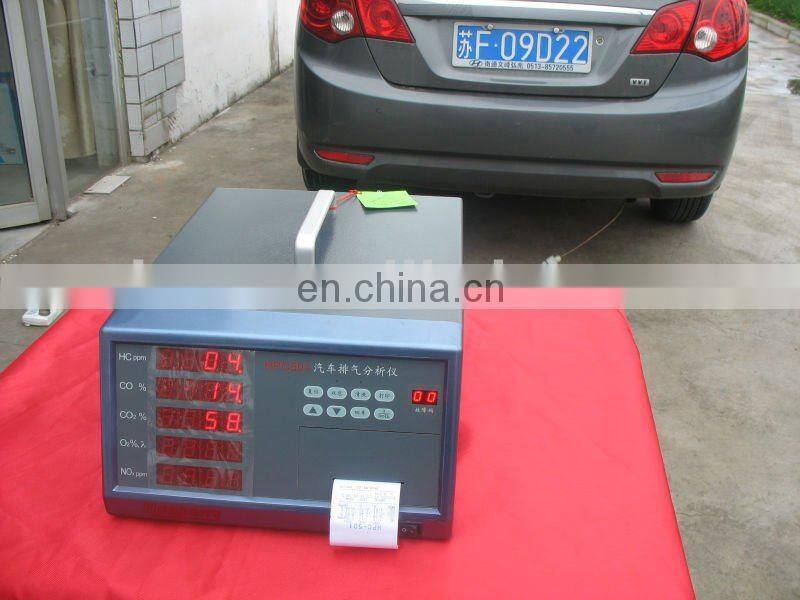

Used to measure vehicle emissions of HC, CO, CO2 and O2 gas concentration, automatic calculation showed that the air-fuel ratio lambda, the engine combustion performance and emission pollution comprehensive testing.Using advanced foreign technology, import the key components assembled.Has high-brightness digital display, automatic zero, linear automatic data processing, pneumatic automatic alarm when the block, fault diagnosis in the unit automatically, instrument suitable for gas, LPG, CNG and alcohol as fuel engine exhaust components such as testing, equipped with a built-in printer (or RS232 / RS485 interface or analog interface), idle speed and double idle speed measurement can be performed, with convenient operation, measurement data is accurate, stable and reliable work, etc.

 Technical parameters

1 Test Scope:  HC:0~10000×10^-6(ppm)vol     CO:0~10×10^-2(%)vol

                        CO_2:0~20×10^-2(%)vol            O_2:0~25×10^-2(%)vol

 λ:0.5~1.5                      COcor:0~10×10-2(%)volShows the value error:

HC ± 12×10-6(ppm)vol (absolute error)or± 5% (relative error)

CO± 0.06×10^-2(%) vol   (absolute error)or± 5% (relative error)

CO₂ ±0.5×10^-2 (%) vol   (absolute error)or± 5% (relative error)

O₂ ±0.1×10^-2(%) vol     (absolute error)or± 5% (relative error)

2 Stability:Automatic zero, volume moments drift ≤ ± 3%
3 Repeatability:Repeat error ≤ ± 2%
4 Resolution:HC:1×10^-6(ppm)vol   CO:0.01×10^-2(%) vol

5 CO_2:0.1×10^-2(%) vol     O_2:0.01×10^-2(%) vol     λ:0.01

6 Response Time:95% of the response to no more than 10 seconds
7 Warm-up Time:8 min(May the preheating 3min urgent examination)

8 Output ModeDigital direct-reading show that gases can be attached printer name, in

accordance with national standard concentration and concentration of

the average maximum test time, date, etc.. Can be attached to

interface with the computer network

9 Environmental conditions:Temperature 0 ~ 40 °C, relative humidity ≤ 90%
10 Power:AC100-240V  50Hz or DC12V (select plus power inverter) Power

consumption 50VA
11 Dimensions:420mm (length) × 310mm (width) × 170mm (H)
12 Weight:About 9kg

Standard accessories

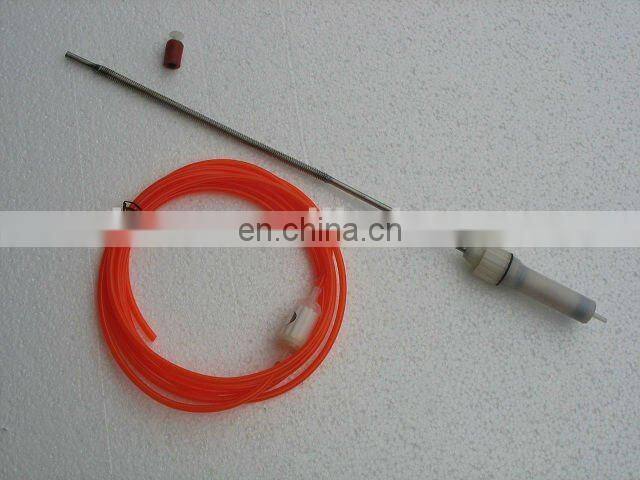

hosepipe and sampling head

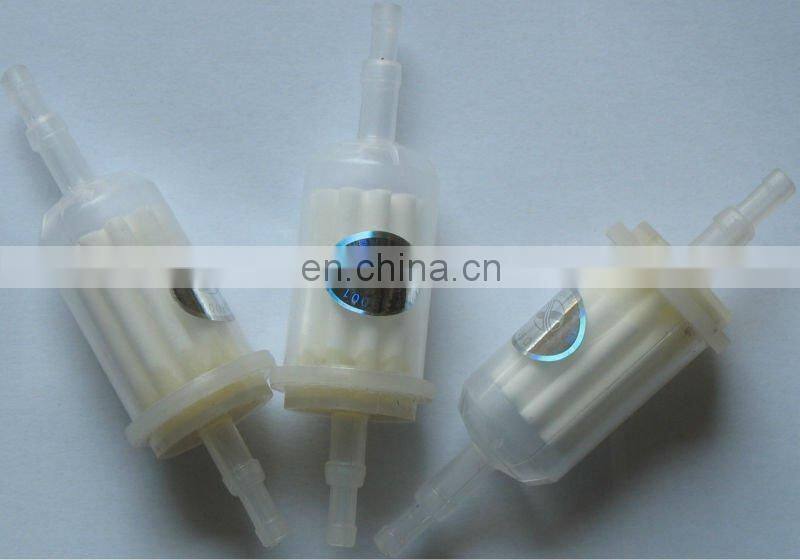

online filter

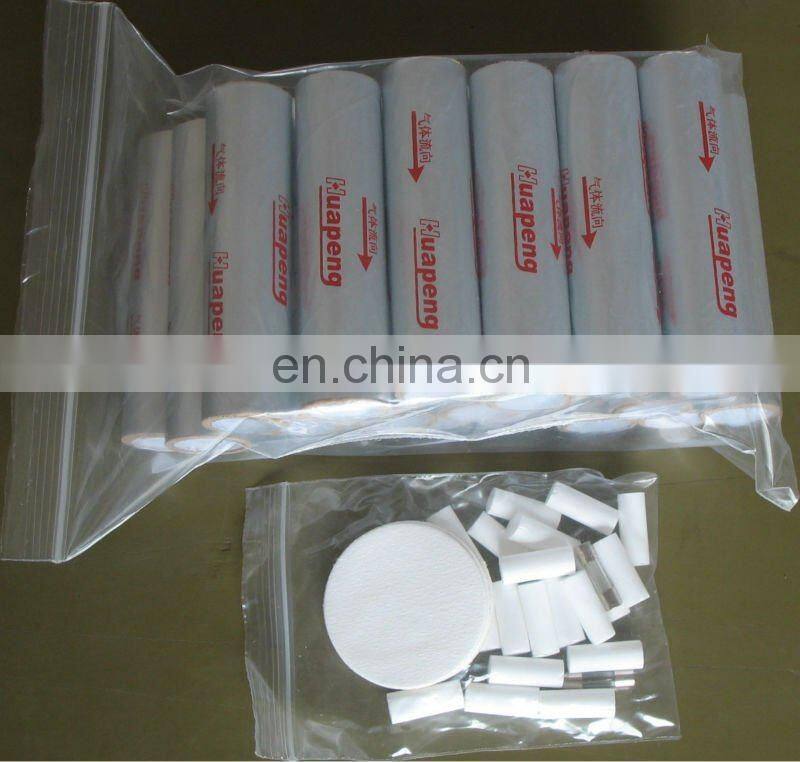

filter

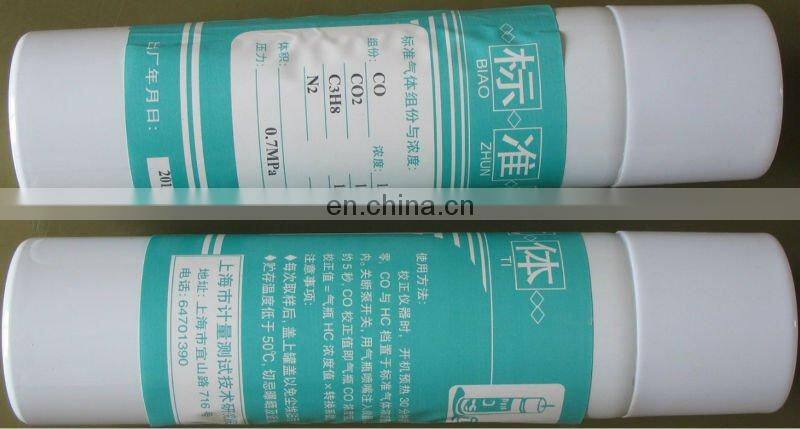

standard gas

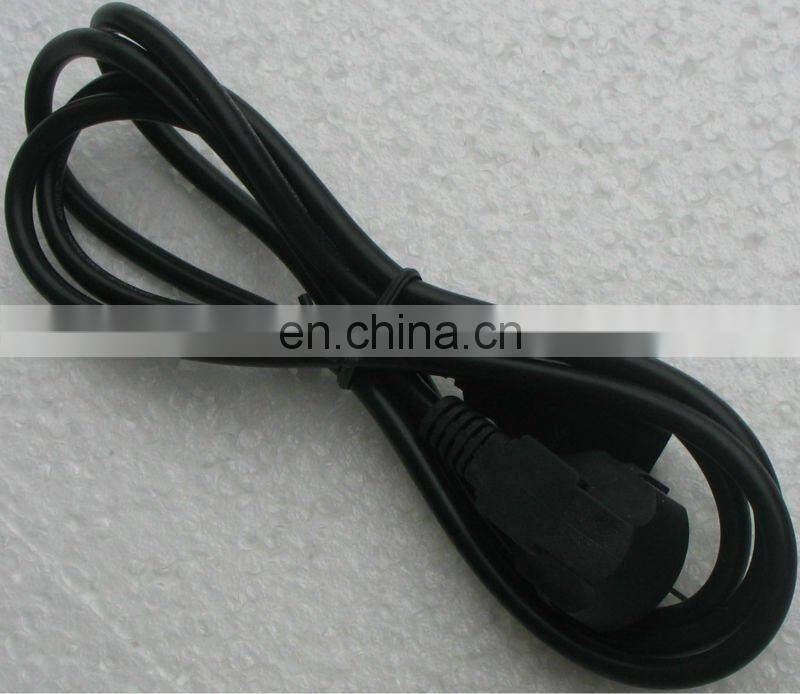

power cord

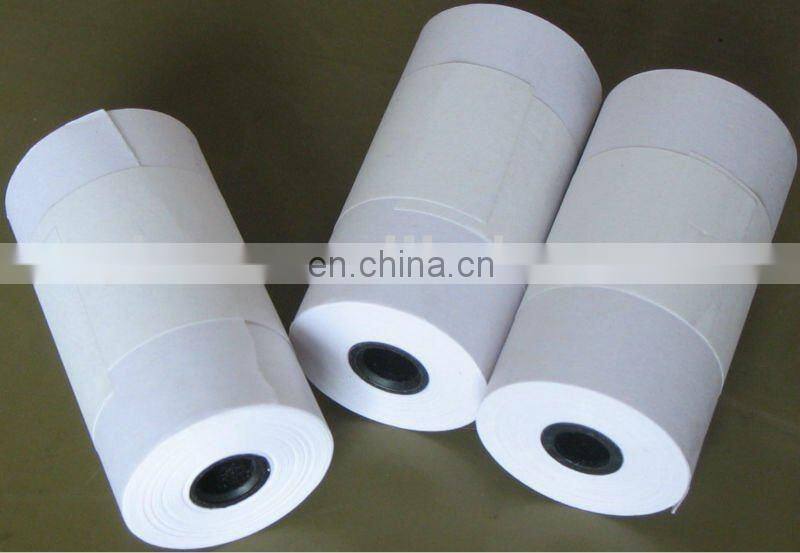

printing paper (built-in printer)

Optional accessaries

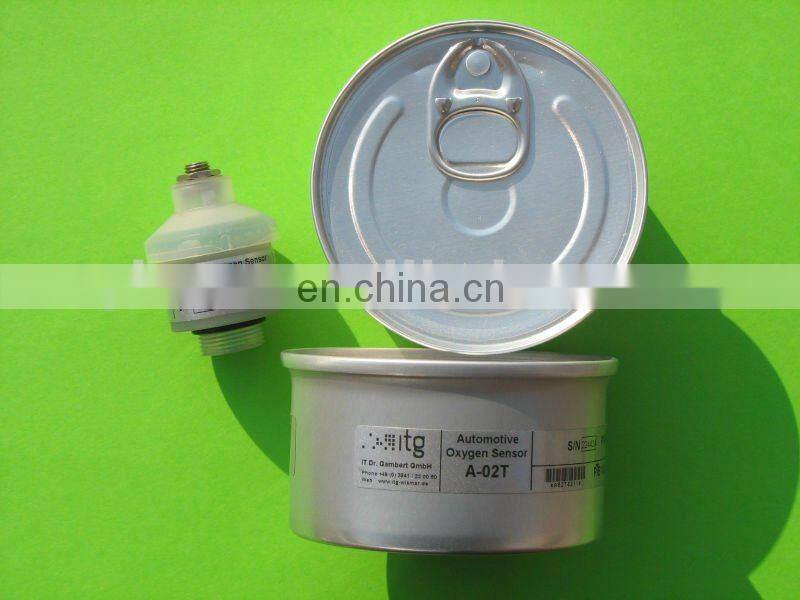

Longlife  electrochemical O2 sensor (imported from Germany)
