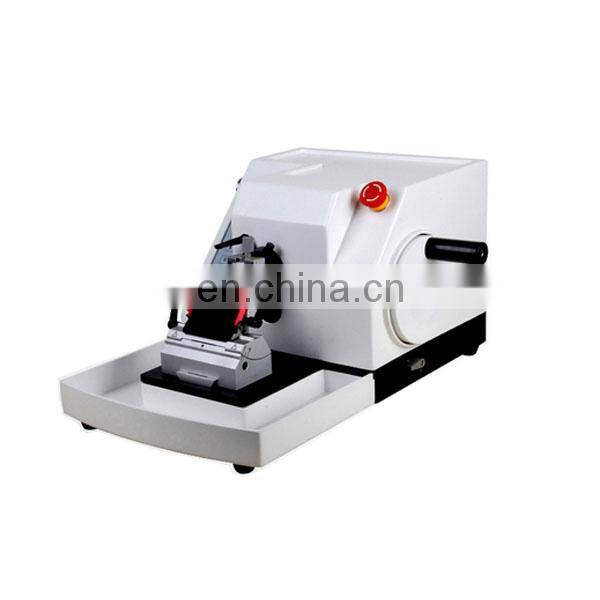

KD-3368AM Fully Automated Microtome Laboratory Microtome

KD-3368AM Fully Automated Microtome Laboratory microtome

Characteristics
1. Imported cross-roller guide rail and screw movement system ensure the matching precision and the slicing effect is more ideal.
2. Advanced imported drive system with trimming, slicing, fast forward, fast rewind, conversion function
3. Intelligent program control, fast switching manual / electric slicing, automatic slice speed adjustable
4. OLED module displays slice thickness, slice thickness, slice count, 360 degree viewing angle without blind zone
5. Full-automatic slicing is a bit moving and continuous slicing two modes, the automatic slicing speed is continuously adjustable
6. Handwheel balance adjustment system, locked at any position to ensure the safety of the slicing process, positioning freely
7. With safe emergency braking system, safety alarm system, drive overload protection, automatic sleep protection
8. Quick and convenient interchangeable specimen holder (wax chuck, visual precision horizontal cassette holder)
9. The knife holder moves left and right effectively using the blade edge (sliced in three parts)
10. The red knife bar covers the blade edge safely, and the blade is quickly and easily replaced by the pusher bar.
11. Disassemble the convenient large-capacity magnetic waste tank, and the top of the cover can store tools such as disposable blades.

Technical Parameters:
* Slice thickness range: 0 ~ 100μm
0 to 2μm increment 0.5μm
2 to 10 μm increments 1 μm
10~20μm increment 2μm
20~100μm increment 5μm
* Repair thickness range: 0 ~ 600μm
0 to 10 μm increments 1 μm
10~20μm increment 2μm
20~100μm increment 10μm
100-600μm increment 50μm
* Sample horizontal shift: 28mm Vertical shift of sample: 52mm
* Tool holder base movement maximum: 60mm Tool holder left and right movement maximum: 23mm
* Sample retraction: 20μm
*With sample automatic return function
* Sample positioning: horizontal 8° vertical 8° 360° rotation
*Slice adjustment minimum division value: 0.5μm
*Maximum sample size: 50×70 (mm)
*Slice accuracy: ±5%
*Power supply voltage: AC110V~120V/ AC220V~240V
*Power: 150VA
* Machine size: 600 × 495 × 310 (mm)
* Machine weight: 32kg
