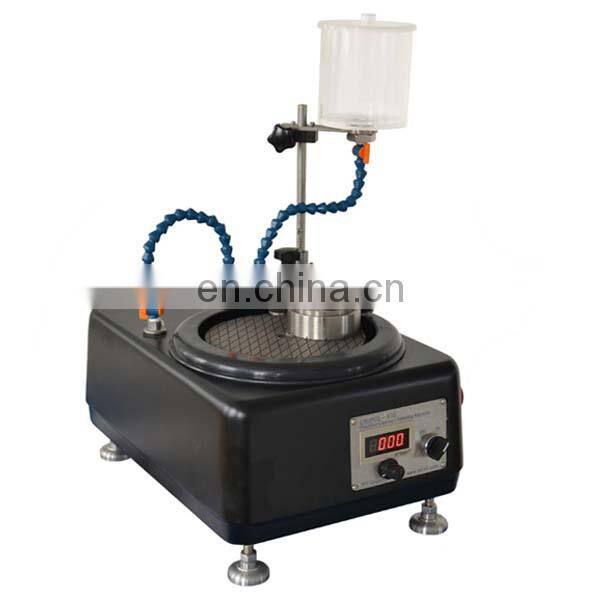

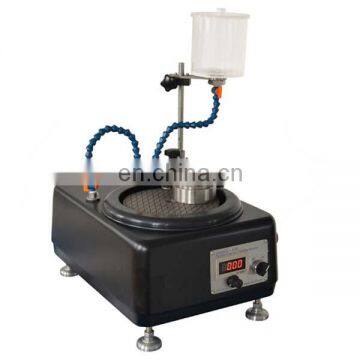

UNIPOL-810 precision grinding and polishing machine

Introduction:

UNIPOL-810 precision grinding and polishing machine is used to polish crystals, metals, ceramics, glass, rock samples, ore samples, PCB boards, refractory materials, composite materials, and seals, such as optical components, compound semiconductor substrates, and ceramic substrates. , sapphire, bismuth vanadate, lithium niobate, gallium arsenide. The machine is equipped with peach shaped hole tray, which is more convenient for grinding and polishing the metallographic sample.

Features:

1. Equipped with drip feeding device, it can realize the automatic dropping of slurry.

2, stepless speed regulation, digital display.

3, simple and quick operation.

Technical Parameters

Power supply: 220V

Power: 175W

Polishing disc rotation speed: 20rpm-600rpm

Polishing pan: Ø203mm

Loading plate: Ø80mm

Station: 1

Drip bucket volume: 0.85L

Size: 500mm×440mm×550mm;

Weight: 45kg

 Installation conditions

This equipment is required to be used at altitudes below 1000m, temperature 25°C±15°C, and humidity 55%Rh±10%Rh.

1. Water: The equipment is equipped with a water inlet and a water outlet, and it needs to connect tap water and drainage

2, electricity: AC220V 50Hz, must have a good ground

3, gas: no

4,Workbench: size 800mm×600mm×700mm, load-bearing more than 200kg

5, ventilation device: no
