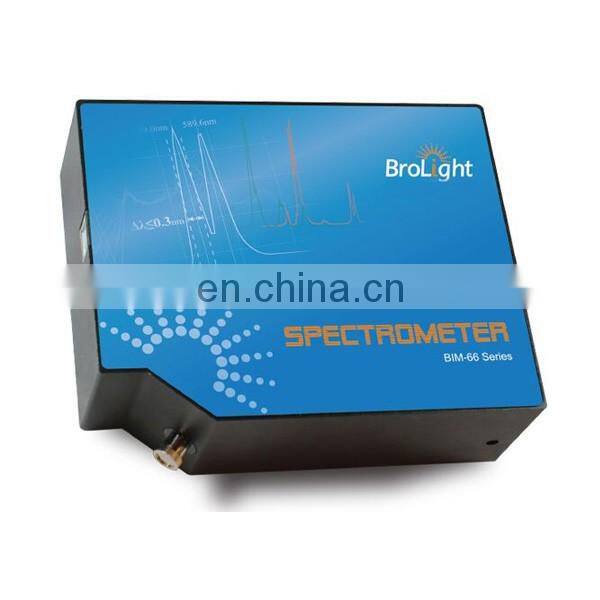

BIM-66 Series High Resolution Fiber Spectrometer
- 50 Set / Sets per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | BOYUAN-Y | Place of Origin: | Shaanxi, China | Model Number: | BIM-66 |
Product Description
BIM-66 Series High Resolution Fiber Spectrometer
Introduction
BIM66 series fiber spectrometer has a miniature structure. The size is as small as a palm. It’s easy to carry and integrated into spectrum analysis apparatus.
Feature
CT crossover asymmetric optical structure eliminates the coma of intermediate wavelength. Suppression of stray light in the surface plane, so that eliminate the effect of the secondary diffraction.
1 Handy and Compact
2 Interference filter to eliminate the secondary diffraction light 200nm resolutions 0.1nm-0.3nm
3 USB 2.0 for data transmission and power supply
4 External trigger function
5 Provide professional customized services
Technical parameter
Specification | BIM-6601 | BIM-6602 |
Dimensions | 137 mm*110 mm*46mm | 137 mm*110 mm*46mm |
Weight | 0.7 Kg | 0.7 Kg |
Detector spectral response | 300 nm-1100 nm | 200 nm-1000 nm |
Optical resolution | ≤0.3 nm | ≤0.3 nm |
Fiber optic connector | SMA905 | SMA905 |
Detector | TOSHIBA TCD1304 linear CCD | 2048 linear CCD |
Pixel | 3648 pixels | 2048 pixels |
Size 8 *200 | Size 14 *200 | |
Sigal-to-nosie ratio | 300:1 at full signal | 2000:1 at full signal |
A/D resolution | 12 bit | 12 bit |
Integration time | 4 ms-10 s | 4 ms-10 s |
Power consumption | 250 mA, 5 VDC | 250 mA, 5 VDC |
Operating temperature | 15°c -30°c(25°c) | 15 °c-30°c(25°c) |
