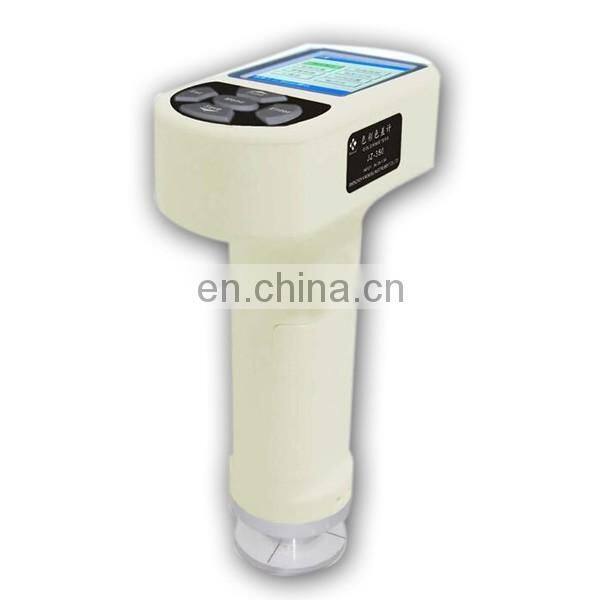

JZ-350 Plastic Colorimeter
Introduction
JZ - 350 color chromatic meter is in accordance with the relevant international CIE1931, 1976 and other standards, JJG5952002 national standards for research and development production of the latest portable color difference meter.
The instrument main components are all made of Japan and Germany imports, has the characteristics of stability, durability, economy.
Feature
Three languages to switch, buttons and menus operation are easy to control
A variety of light and color space modes meet special needs of different measurement conditions
Two calibrations: white calibration and zero calibration, the measurement data are more accurate and stable
1500 sets of data storage space, can check, callout, upload the data at any time
Professional color quality software would assist the color analysis and quality control
Technical Parameter
Illuminant/light system | 45/0 |
Measuring aperture | Diameter 8mm |
Operating language | Simplified Chinese, Traditional Chinese, English |
Display mode | Lxaxb, LxCxH, XYZ, deltaExab,delta(Lxaxbx)delta(LxCxH),delta XYZ |
Storage space: | Standard: 50 sets, 30 sets color difference data under a standard data |
Standard illuminant | D65,D50,F11,C |
Standard observer | 10, 2° |
Calibration | White calibration, Zero cablibration |
Repeatability | Standard deviation: within delta EXab≤0.08(When the white calibration plates measured 30 times, and then averaged) |
Measurement spacing | About 2 seconds |
Power source | 4 AA-size batteries or AC adapter |
Operating temperature | 0- 40℃, (32 -104℉); Relative humidity 85% or less |
Size(WxHxD) | 110x60x190mm |
Weight | 330g(Without batteries) |
Standard Accessories | Bag, Protection cap, Software, AC adapter, USB cable, Instrument, Hard case, Calibration plate |
Optional accessory | Micro-printer |
