SC-5A CNC Super Constant Temperature Water (oil) Tank

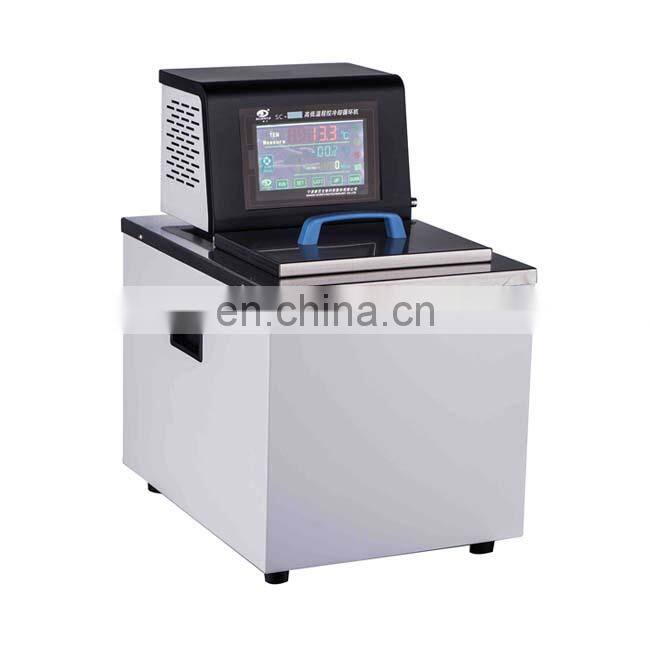

SC-5A CNC super constant temperature water (oil) tank

Introduction:

The SC series numerical control super constant temperature water tank adopts the microcomputer intelligent control system, and has a circulation pump, which can be used to guide the constant temperature liquid in the tank to establish a second constant temperature field. Widely used in petroleum, chemical, electronic instrumentation, physics, chemistry, bioengineering, medical and health, life sciences, light industry food, physical property testing and chemical analysis, research departments, universities, enterprise quality inspection and production departments, working for users Provide a liquid environment with controlled heat and cold and uniform temperature.

Features:

1, digital display resolution: 0.1 ° C

2. Temperature fluctuation: ±0.05°C~±0.2°C

3, with power-off protection function, can automatically delay for three minutes

4, LED double window red and green two-color digital display

5, with a circulation pump, can establish a second thermostatic field outside the machine

6, with self-tuning intelligent PID automatic adjustment control function

7, the temperature measurement value deviation can be corrected, the range: ± 0.1 ° C ~ ± 20 ° C

8, the upper and lower limit temperature alarm can be set

9, the liner is made of high quality stainless steel

Technical Parameters:

Model: SC-5A

Temperature range °C: room temperature +5~95

Temperature fluctuation °C: ±0.05°C~±0.2°C

Digital resolution (mm3): 0.1

Working tank volume (mm3): 260*140*140

Groove depth (mm): 140

Circulating pump flow (L/min): internal circulation

Working slot opening (mm2): 130*130

Drainage port: Yes
