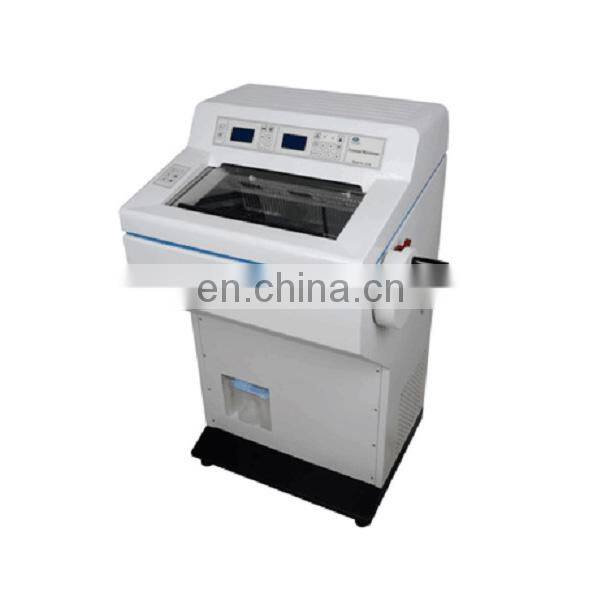

HH-1900B Semi-automatic Cryostat

Introduction:
The HH-1900B semi-automatic cryostat is a microtome for rapid pathological sectioning of human and animal body tissues. The machine is widely used in hospitals, biomedicine, agriculture, forestry, education, health and epidemic prevention, animal husbandry and veterinary, public security forensics, scientific research institutions, laboratories and other departments.

main component:
1. The computer control panel displays the temperature and working status of the instrument on the upper part.
2. The central part is a constant temperature low greenhouse, which quickly freezes the living tissue and cuts it.
3. Mechanical rotation and motor drive.
4. The lower part is a refrigeration compressor.

Technical Parameters:
* Slice thickness range:
Adjustable from 1μm to 100μm
Incremental value of 1μm~20μm;
20μm~40μm increment value 2μm;
40μm~100μm increment value 5μm;
* Repair thickness range:
Adjustable from 10μm to 400μm
10μm~50μm increment value 5μm;
50μm~100μm increment value 10μm;
100μm~400μm increment value 50μm;
* Specimen retraction value: 0~95μm adjustable, increment value 5μm
* Specimen horizontal movement stroke: 20mm
* specimen vertical movement stroke: 60mm
*Power supply: AC 220V±22V
* Frequency: 50Hz ± 1Hz;
*Power: 600W
*Maximum starting power (5 seconds): 45A
* Freezer temperature control range: -10 ° C ~ -40 ° C
* Freezer temperature can be as low as: -45°C
* Freezer sample frozen hole position: 26
*Freezing station additional semiconductor cooling hole position: 2
*Refrigerant: R404a, 300±10g
*Compressor oil: 0.6L EMKARATE RL-22S, ICI
*Noise: 52dB(A)
*Outer size (mm): 660x640x1150; Weight 135 kgs
