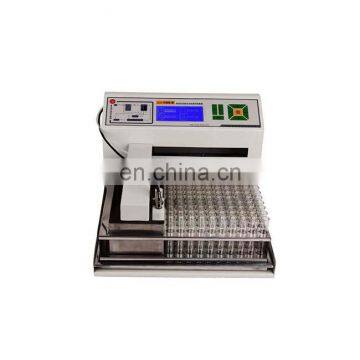

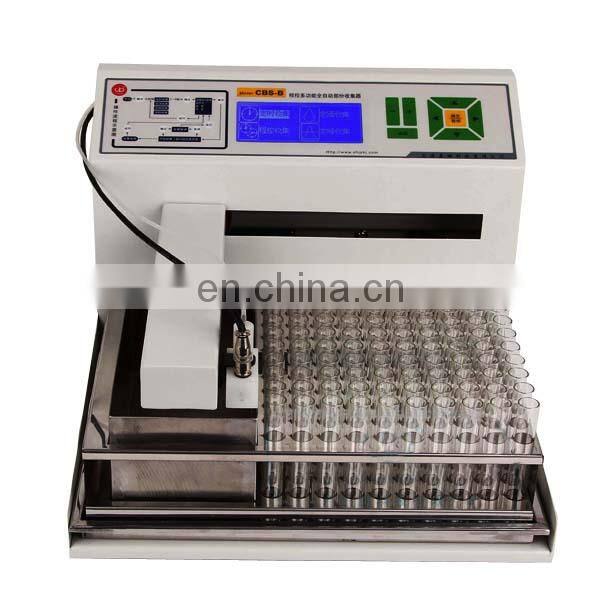

CBS-B program-controlled automatic part collector

Introduction:

The CBS-B program-controlled automatic fraction collector (LCD display), also known as component collector and fraction collector, is one of the basic equipment for biochemical experiments and bio-pharmaceutical production. It is specifically designed for the separation and purification of samples, performance and imported products. Keeping pace with each other is the first choice for low-pressure preparation laboratories. It is used to automatically quantify the droplets flowing out of the column to achieve the purpose of loading different active components into different tubes. Jiapeng brand program-controlled automatic part collector CBS-B (LCD display) is a device that separates a certain amount of solution from a chromatography tube when it is used to separate some mixed substances, and is suitable for scientific research and medical treatment. , universities and colleges and other departments conduct liquid chromatography layer analysis experiments, the instrument can automatically collect the chromatography fluid, thereby replacing the manual operation, improve work efficiency, and nucleic acid protein detector/UV detector, constant flow pump, layer The column and the data station constitute a liquid chromatography separation system. Program-controlled automatic part collector CBS-B (LCD display) This series of automatic part collectors is fully upgraded. It adopts a new microcomputer chip, which can automatically collect, record and collect, and record the peak sampling and collection chromatographic fluid. It can realize automatic sampling collection and improve collection. Quality and work efficiency. It is an ideal instrument for scientific research institutions, factories and mines engaged in scientific research and production. It is widely used by famous universities and colleges such as Tsinghua University, Peking University and Fudan University.

Features:

1. Unique menu-style operation flow. According to the "brief operation flow chart" on the panel, the operation of each function can be completed, and the use is convenient.

2.X-Y matrix arrangement, safer than disc type fraction collector, higher space utilization;

3. High stability design, effective elimination of air bubble interference, no jump tube phenomenon;

4. It can be used together with the UV detector and constant current pump produced by our company, and it can be collected according to time or volume and collected at peak.

5. 65° angled control panel design, ergonomic, easy to control without bending.

6. Square design and suspended X-Y movement. The use of square design and suspended X-Y movement, accurate tube positioning; 7. Separate the collection solution and circuit, use more secure.

8. Corrosion-resistant design. Column chromatography separation experiments for water-soluble solvents and organic solvents.

9. Programmable control: It adopts microprocessor control. Users can compile collection procedures according to the chromatogram by operating the menu.

10. A variety of capacity collection modular test tube rack and comes with a waste tank. With a variety of test tube trays, the free combination of different diameters of the test tube (SP–16A, SP–36A, SP–100A, SP–169A) can be used to achieve multiple functions of one machine; optional (SP–36L) can be realized. The collection is repeated indefinitely in order to further increase the efficiency of the preparation; the waste liquid automatically flows into the waste tank through the three-way valve and the control program. The collected test tube rack can be replaced cyclically for long time collection.

11. The delay collection time can be set, and the delay collection time can be programmed to compensate for the time from the detector outlet to the collection tube to ensure accurate sample flow into the corresponding tube.

12. Solenoid valve change control. Solenoid valve control prevents leakage during tube changeover and recovers the solvent through the three-way valve.

13. Chinese liquid crystal large blue film LCD original extremely clear display mode, industry leading quality, new microcomputer chip control

Technical Parameters:
