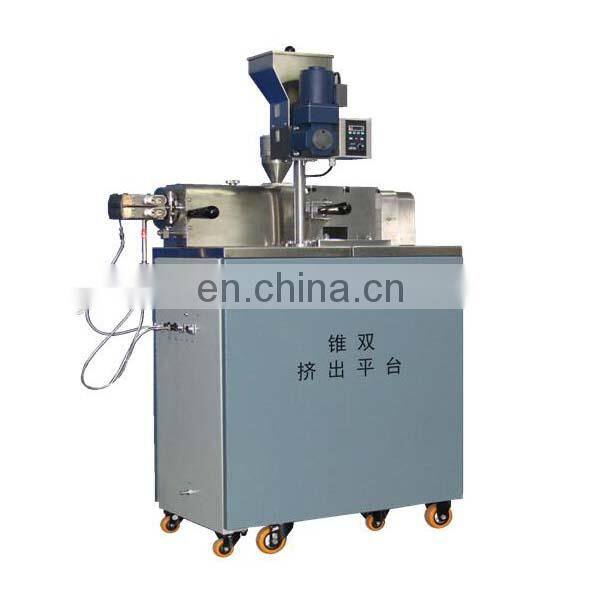

ECT-20/40 Movable Cone Dual Platform
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | HaPu | Place of Origin | Shaanxi, China | |
| Model Number | ECT-20/40 | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description
Introduction:
The conical twin-screw torque rheometer consists of a main control unit and a conical twin-screw unit that simulates the production of a conical twin-screw extruder in the laboratory. The unique structural design makes it easier and faster to clean up corrosive materials after each experiment. The equipment is especially suitable for processing PVC powder, supplemented by different molds, and can directly extrude plates, pipes and profiles for experiments.
Technical Parameters:
Structure mode: double segment separable
Effective length of screw: 325mm
Effective length of the barrel: 340mm
Double tube barrel: 20-40mm Maximum temperature: 350°C
Temperature sensor: J-type thermocouple
Heating zone: 4 zones
Cooling method: compressed air
Feeding method: spiral metering feed
Feeding motor brand: JSCC, speed ratio 50:1, manual speed regulation
Flat die:
Mold specification: 60 × 1.5mm
Heating power: 0.2KW (imported heating pipe) × 6 = 1.2KW
Two-way temperature measurement: material temperature and mold temperature
All the way pressure measurement: material pressure
Flat mold shaping traction device:
| Material: 3Cr13 |
| Shaped groove specification: 75mm × 0.8mm |
| Shaped thickness range: 0.9~2.0mm |
| Stereotype: upper and lower surface friction setting, side free |
| Stereomode cooling method: water cooling |
| Traction method: belt traction |
| Traction motor: JSCC, manual speed control |
| Motor power: 60W |
| Traction speed: 0.24~2.5m/min |
