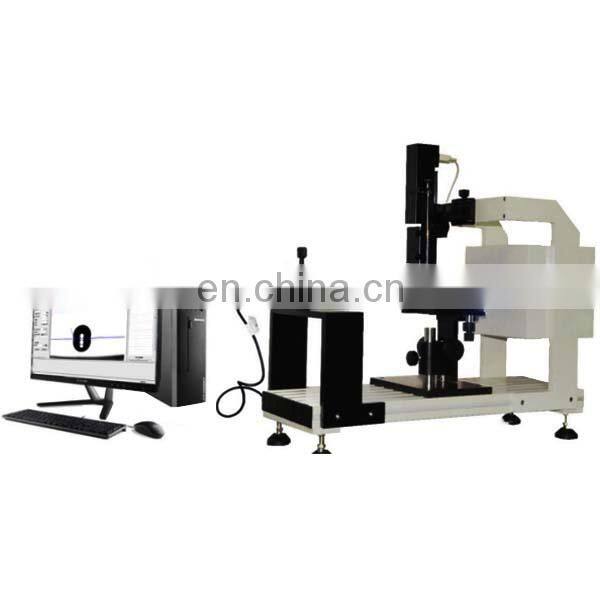

PT-705-B Optical Contact Angle Meter
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | PUSAITE-W | Place of Origin | Shaanxi, China | |
| Model Number | PT-705-B |
Product Description
The optical contact angle meter is one of the important parameters that can be used to represent the wetting properties of the material surface. The surface energy of the material solid can be obtained through the contact angle. The measurement of contact angles involves a wide range of problems and has important applications in many fields such as industry, agriculture, scientific research, and national defense. Optical contact angle meter application direction: new surface characterization, surface purity testing, solid surface treatment evaluation, liquid formulation design, surface cleanliness analysis, plasma cleaning effect analysis, solid-liquid or solid viscosity characteristics, surface printing performance characterization, Surface wettability of glass (including solids such as plastics or metals), analysis of surface modification, etc.
National standards
GB/T 24368-2009 (detection of hydrophobic contaminants on glass surface)
SY/T5153-2007 (Method for determination of reservoir rock wettability)
ASTM D 724-99 (2003) (Test method for surface wettability of paper)
ASTM D5946-2004 (Measurement of contact angle of plastic film with water)
ISO15989 (Measurement of water contact angle of plastic film and thin film corona treatment film)
Technical Parameters
1. Model: PT-705B Standard Optical Contact Angle Meter
2. Three-dimensional platform
Left and right X movement: Manual: stroke 30mm, accuracy 0.5mm
Before and after Y movement: Manual: stroke 50mm, accuracy 0.5mm
Move up and down Z: Manual: Travel 50mm, Accuracy 0.5mm
Level adjustment: Level adjustment, camera level adjustment
Sample stage size: 120*150mm (can be customized)
The largest sample can be placed: 200(W)*∞(L)*50(H)mm
Sample table material::Aluminum alloy
3. Fluid intake system
Microsampler: XY movement Stroke: 100mm, accuracy 0.5mm, needle centering and droplet transfer
Inlet control Z' movement: Stroke: 60mm, Accuracy: 0.01mm, with photoelectric limit protection
Drop control mode: Software controlled automatic drip, accuracy: 0.1ul
Add liquid way: Automatic (distribution 5ml glass beaker add liquid)
Microsampler: Capacity: 1000ul (25ul, 50ul, 100ul, 250ul, 500ul optional)
Needle: Standard 0.5mm stainless steel needle (replaceable), super-hydrophobic needle 0.25mm (replaceable)
4. Imaging system
Lens: 0.5-4.5 telecentric contour lens
Camera: SONY High Speed Industrial Grade Chip
Sensor Type: 1/1.8 inch progressive scan CMOS
Resolution: 1280×1024
Lens Control: Look-up angle: 0-30 degrees, accuracy: 1 degree.
Focusing movement: Travel: 0-50mm, precision 1mm.
5. Light source system
Combination method: The use of a diffuser film and light uniformity plate makes the brightness more uniform, and the droplet outline is clearer
Light source: It adopts imported industrial blue cold light source (effectively avoids evaporation of droplets due to the light source emitting heat), and the service life can reach more than 50,000 hours.
Brightness adjustment: stepless adjustment
Light source wavelength: 460-465nm
6. Contact angle measurement
Contact angle measurement method: hanging drop method, seat drop method, advancing angle, receding angle, rolling angle, film method, etc.
Measurement software: CAPST V1.2.1 static/dynamic contact angle measurement software + surface energy measurement software
Software operating system requirements: Windows XP/windows 7 (32-bit)
Contact angle measurement method: automatic and manual
Contact Angle Calculation Method: Circle Fit, Ellipse Fit, Horizontal Fit, Incline Fit, Width Height Measurement, Convex Surface Measurement, etc.
Baseline Fitting: Automatic and Manual
Angle range: 0°<θ<180°
Accuracy: 0.1°
Resolution: 0.001°
7. Surface energy
Surface energy measurement method: Fowks method, OWRK method, ZismanPlot method, EOS method (software pre-installed part of the liquid database, can establish its own liquid performance parameters)
Surface energy unit: MN/m
Table interface tension measurement range: 0-1000mN/m times
Table interface tension measurement accuracy: ±0.01mN/m
8. Others
Rack profile: 4080*3 high-strength paint
Input power: 220V 50-60Hz
Instrument size: about 660mm (W) * 310mm (L) * 580mm (H)
Instrument weight: about 30KG
