NIRLeader 5700 Portable NIR near infrared spectrum analyzer
Introduction:
NIRLeader 5700is a diffuse reflection sample measurement way based portable near infrared spectrum analyzer,The instrument adopts the irradiation rotating load sample platform design, high precision, high stability, raster scan near infrared spectrometer and the built-in embedded operating system,It can realize rapid and nondestructive testing requirements in complex field environment .
Features:

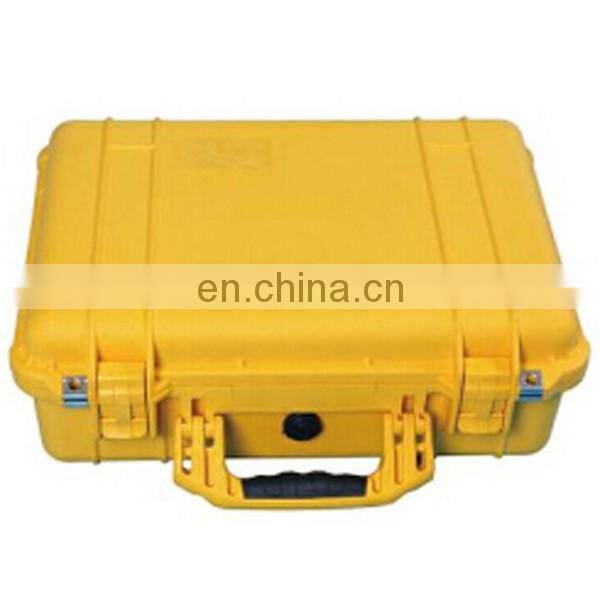

The machine adopt portable box design, flexible, meet the demand of fast response
test samples quickly , test time about 15 seconds, output the analysis results directly
The analysis results with high accuracy and good repeatability
Built-in embedded operating system
Intelligent control, it's convenient for users operation
The instrument with Periodic self-inspection function to ensure accuracy of measurement results
No chemical reagent, does not destroy the sample, no damage for detection
support secondary development
Application:
Product quality inspection:moisture, protein, fat, fiber, ash, amino acid
The raw material qualitative fidelity identification
Product quality control(widely use for acquisition of grain, feed production, grain and oil processing, breeding research etc...)
Technical parameters:
Detector |
InGaAs |
Sample pool temperature control |
25℃±1℃ |
Display screen |
Touch screen display |
Wavelength range |
1000nm-2600nm |
Size of sample size |
10mm |
Storage space |
16G |
Wavelength accuracy |
0.5nm |
Light life |
More than 10000 |
Power supply |
AC/DC12V |
wavelength repeatability |
0.2 nm |
Communication interface |
USB2.0 |
Size |
470*360*170 |
Analysis time |
≤15S |
Temperature range |
5℃-40℃ |
Weight |
9Kg |
Operate system |
Windows XP |
Humidity range |
5%-95%RH |
|
|
