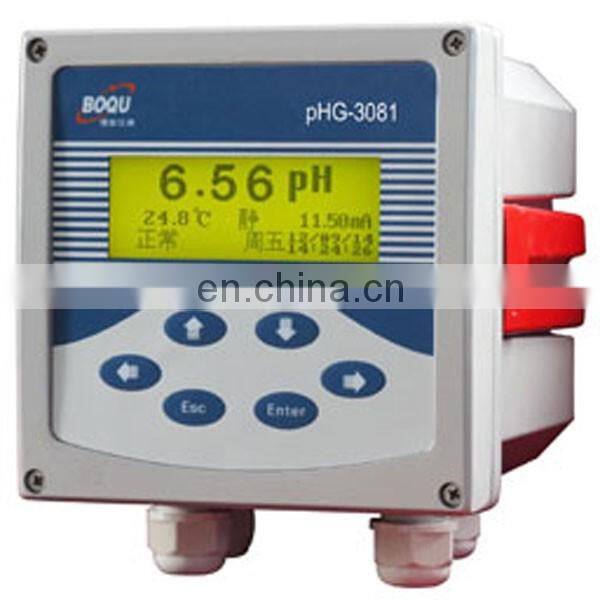

PHG-3081 Industrial Online PH Meter
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | BOQU-S | Place of Origin | Shaanxi, China | |
| Model Number | PHG-3081 |
Product Description
Introduction :
PHG-3081 industrial pH meter is our latest generation of microprocessor-based instrument, a high intelligent, multi-function, high measurement performance, environmental adaptability and other characteristics. It is a highly intelligent online continuous monitoring instrument, integrate with the sensor and the second meter. Can be equipped with three composite or two composite electrodes to meet a variety of sites. Can be widely used for continuous monitoring of PH value for thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and water and other solution.
Features:
Intelligent: This industrial PH meter adopts high-precision AD conversion and single chip microcomputer
processing technologies and can be used for the measurement of the PH values and temperature, automatic
temperature compensation and self-checking.
Reliability: All the components are arranged on one circuit board. No complicated functional switch, adjusting
knob or potentiometer arranged on this instrument.
Double high impedance input: The latest components are adopted; The impedance of the double high impedance
input can reach as high as l012Ω. It has strong interference immunity.
Solution grounding: This can eliminate all the disturbance of the ground circuit.
Isolated current output: Optoelectronic isolating technology is adopted. This meter has strong interference
immunity and the capacity of long-distance transmission.
Communication interface: it can be easily connected to a computer to perform monitoring and communication.
Automatic temperature compensation: It performs automatic temperature compensation when the temperature is
within the range of 0~99.9℃.
Water proof and dust-proof design: Its protection grade is IP54. It is applicable for outdoor use.
Display, menu and notepad: It adopts menu operation, which is like that in a computer. It can be easily
operated only according to the prompts and without guidance of the operation manual.
Multi-parameter display: The PH values, input mV values (or output current values), temperature, time and status
can be displayed on the screen at the same time.
Technical parameters:
1. Measuring range: PH value: 0~14.00pH; division value: 0.01pH
Electric potential value: ±1999.9mV; division value: 0.1mV
Temperature: 0~99.9℃; division value: 0.1℃
2. Range for automatic temperature compensation: 0~99.9℃, with 25℃ as the reference temperature, (0~150℃ for Option)
3. Water sample tested: 0~99.9℃,0.6Mpa
4. Automatic temperature compensation error of the electronic unit: ±0 03pH
5. Repeatability error of the electronic unit: ±0.02pH
6. Stability: ±0.02pH/24h
7. Input impedance: ≥1x1012Ω
8. Clock accuracy: ±1 minute/month
9. Isolated current output: 0~10mA(load <1 5kΩ), 4~20mA(load <750Ω)
10.Output current error: ≤±l%FS
11.The data storage capacity: 1 month (1 point/5 minutes)
12.High and low alarm relays: AC 220V, 3A
13.Communication interface: RS485 or 232 (optional)
14.Power supply: AC 220V±22V, 50Hz±1Hz, 24VDC(optional)
15.Protection grade: IP54, Alluminium shell for outdoor use
16.Overall dimension: 146 (length) x 146 (width) x 150 (depth) mm;
dimension of the hole: 138 x 138mm
17.Weight: 1.5kg
18.Working conditions: ambient temperature: 0~60℃; relative humidity <85%
19.It can be equipped with a 3-in-1 or 2-in-1 electrode.
